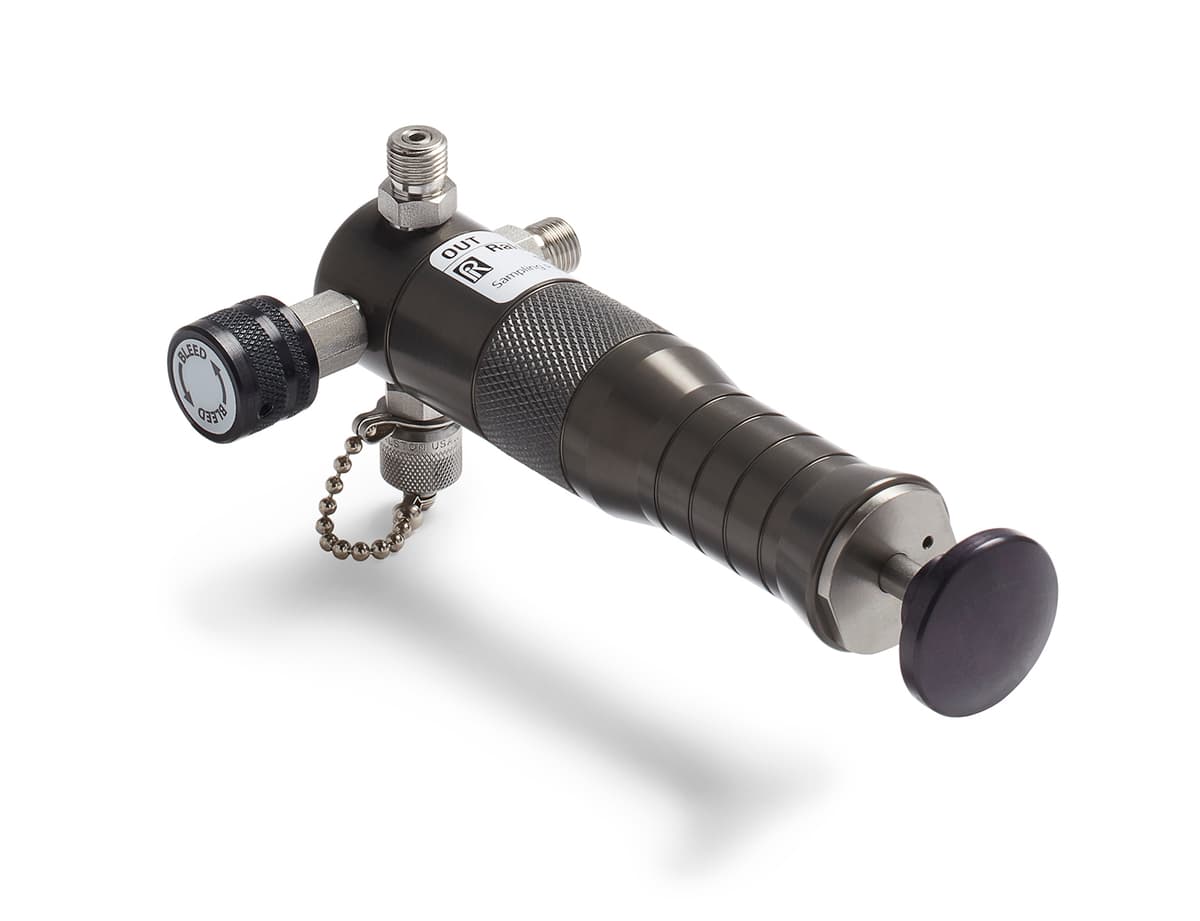

Ralston SP0V Gas Sampling Pump
Ralston SP0V gas sampling pump: pulls low-pressure gas from a well or biogas reactor and boosts it into a sample container — up to 100 psi (7 bar), 3.2 cu in displacement.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Ralston SP0V is a gas sampling hand pump. Ralston describes it as a pump that can pull low-pressure gas from a well or biogas reactor and boost it to pump it into a sample container.
SP0V-15PSIG-D kit
Per Ralston, the SP0V-15PSIG-D kit adds an LC10 ±15 psi digital pressure gauge (LC10-GC2M), a 1/4" female NPT x female Quick-test reference connection, two process connections, and 6 ft and 3 ft Quick-test hoses with stainless steel ends.
Related
See also the Ralston LC10 digital pressure gauge. Browse pumps & generation, digital pressure gauges and Quick-test hoses.
Specifications
| Key specifications (Ralston datasheet) | |
| Max pressure | 100 psi / 7 bar / 700 kPa |
| Piston displacement | 3.20 cu in |
| Inlet port | Male Quick-test with check valve |
| Outlet ports | Male Quick-test; male Quick-test with cap and chain |
| Media compatibility | Air, inert gas, natural gas |
| Materials | Anodized aluminum, stainless steel |
| Seal materials | Delrin, Viton |
| Operating temperature (pump) | 0 to 140 °F (−18 to 60 °C) |
| Pump weight | 1.60 lb / 725 g |
Videos
Documents
Build your part number
Configure your SP0V
Pick your options and we'll build the exact part number with a list-price estimate.
Select a included items to build your part number.
Specify the included items for a gas sampling pump to work with your reference gauge and process connection. Pump boosts low-pressure gas to 25 psi. Shipping and tax are confirmed when we review your order.
Ordering information
6 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| SP0V-100PSIG-D | Gas Sampling Pump, 2 hoses, 100 psi digital gauge kit | $1,475.78 | |
| SP0V-15PSIG-D | Sampling pump, 2 hoses, 15 psi digital gauge kit | $1,491.43 | |
| SP0V-1MSA-6-3 | Gas Sampling Pump, 2 hoses, 1/8" Male NPT gauge connection | $908.68 | |
| SP0V-2FSA-6-3 | Gas Sampling Pump, 2 hoses, 1/4" Female NPT gauge connection | $911.63 | |
| SP0V-2MSA-6-3 | Sampling Pump kit with 2 hoses, 1/4" Male NPT gauge connection | $911.63 | |
| SP0V-30PSIG-D | Sampling Pump, 2 hoses, 30 psig Digital gauge kit | $1,475.78 |
