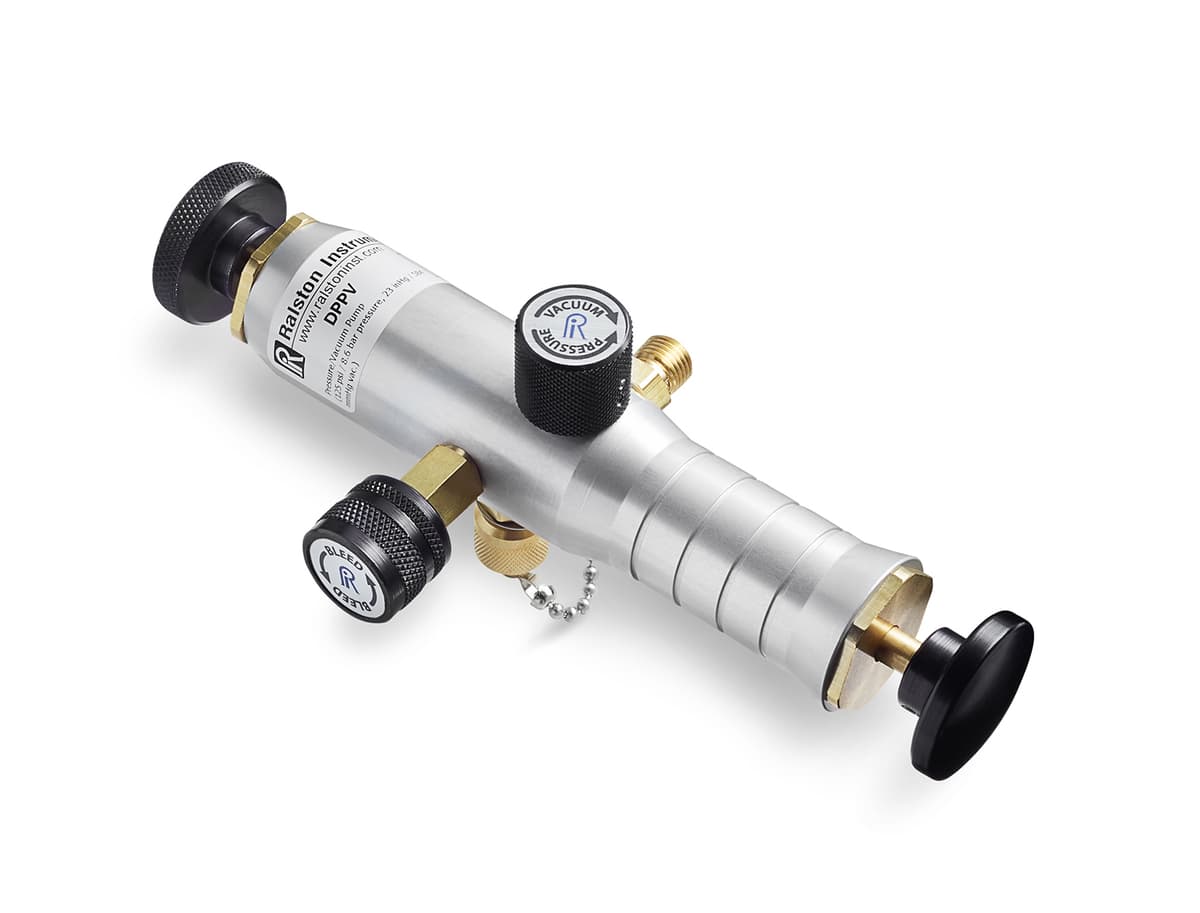

Ralston DPPV Pneumatic Hand Pump
Ralston DPPV pneumatic pressure / vacuum hand pump: up to 125 psi (8.6 bar) or vacuum to −23 inHg, 0.01 psi fine adjustment, Quick-test outlets — for calibrating low-pressure and vacuum instruments.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Ralston DPPV is a pneumatic pressure / vacuum hand pump. Ralston describes it as a way to generate either a vacuum or a pressure for calibrating low-pressure or vacuum instrumentation using an external pressure calibrator as the reference.
DPPV-0000 configuration
Per Ralston, the DPPV-0000 pairs the pump with a 1/4" male NPT x male Quick-test process connection (brass, no check valve) and a 3 ft Quick-test 6,900 psi hose with brass ends.
Related
For pressure-only low-pressure work, see the Ralston DP0V pneumatic hand pump. Read the pump against a digital pressure gauge or pressure calibrator, and connect with Quick-test hoses.
Specifications
| Key specifications (Ralston datasheet) | |
| Max pressure | 125 psi / 8.6 bar / 860 kPa |
| Max vacuum | −23 inHg / −77.9 kPa |
| Fine adjustment resolution | 0.01 psi / 70 Pa |
| Piston displacement | 1.25 cu in |
| Pressure media | air (compatible with air, inert gas, natural gas) |
| Outlet ports | male Quick-test, and male Quick-test with cap and chain |
| Materials | anodized aluminum, brass, stainless steel; seals Buna-N, Delrin, Teflon |
| Operating temperature | 0 to 130 °F (−18 to 54 °C) |
| Burst pressure | 1,000 psi / 70 bar |
Videos
Documents
Build your part number
Configure your DPPV
Pick your options and we'll build the exact part number with a list-price estimate.
Select a included items to build your part number.
Specify the included items for a pneumatic pressure / vacuum hand pump to work with your reference gauge and process connection. Pump is 125 psi / 8.6 bar or 23 inHg vacuum. Shipping and tax are confirmed when we review your order.
Ordering information
11 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| DPPV-0000 | DPPV (+125 psi to -23" Hg) pump, no gauge adapter, with 3ft hose, 1/4" MNPT process connection | $645.29 | |
| DPPV-1MBA | DPPV (+125 psi to -23 inHg) pump, 1/8" MNPT gauge adapter, 3ft hose, 1/4" MNPT process conn. | $665.28 | |
| DPPV-2FBA | DPPV (+125 psi to -23 inHg) pump, 1/4" FNPT gauge adapter, 3ft hose, 1/4" MNPT process conn. | $667.60 | |
| DPPV-2FBA-RG | DPPV (+125 psi to -23 inHg) pump, 1/4" FBSP gauge adapter, 1m hose, 1/4" FBSPP process conn. | $701.39 | |
| DPPV-2MBA | DPPV (+125 psi to -23 inHg) pump, 1/4" MNPT gauge adapter, 3ft hose, 1/4" MNPT process conn. | $669.12 | |
| DPPV-3FBA-RG | DPPV (+125 psi to -23 inHg) pump, 3/8" FBSP gauge adapter, 1m hose, 1/4" FBSPP process conn. | $703.83 | |
| DPPV-4FBA-RG | DPPV (+125 psi to -23 inHg) pump, 1/2" FBSP gauge adapter, 1m hose, 1/4" FBSPP process conn. | $714.89 | |
| DPPV-KIT4 | DPPV pressure/vacuum pump, 3 gauge adapters - (1/4" MNPT, 1/8" MNPT, 1/4" FNPT), 3ft hose, zippered bag, carrying case | $1,038.27 | |
| DPPV-KIT5-VJ | DPPV pressure/vacuum pump, -15 to 100 psi/ -100 to 700 kPa LC20 gauge, case, 3ft hose, 1/4" MNPT adapter, zippered bag | $1,689.05 | |
| DPPV-KIT5-VJ-B1 | DPPV pump, - 15 psi to 100 psi LC20 gauge with Bluetooth, case, 3ft hose, 1/4" MNPT adapter, zippered bag | $1,887.05 | |
| DPPV-KIT6-VJ | DPPV pressure/vacuum pump, -15 to 100 psi digital gauge, 3ft hose, 1/4" MNPT adapter | $1,362.20 |
