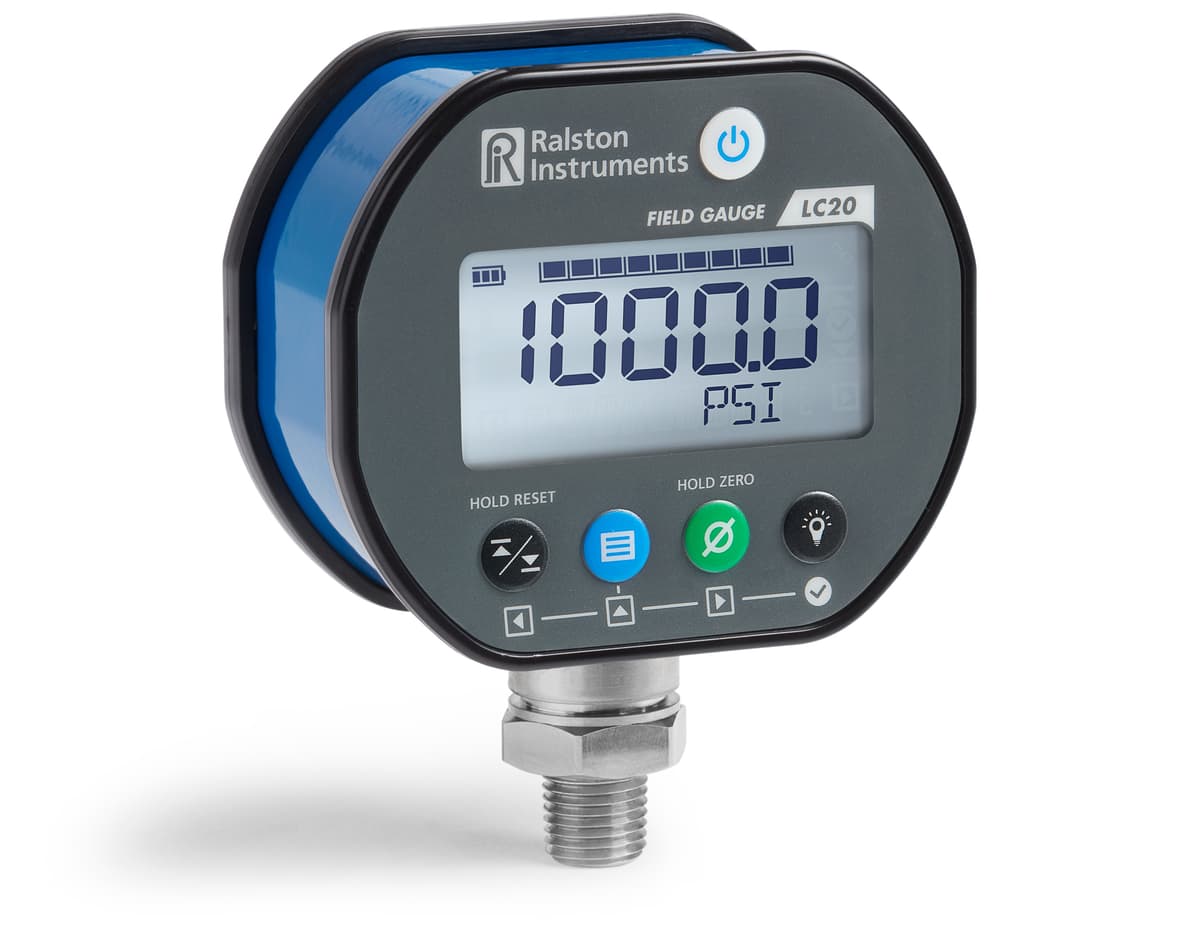

Ralston Field Gauge LC20

Name: Ralston Field Gauge LC20
Brand: Ralston
SKU: LC20-FG
Price: 694.60 USD
Availability: InStock

Model LC20-FG

Ralston LC20 digital pressure field gauge: ±0.1% FS accuracy, ISO 17025 accredited certificate, backlit display, 15 engineering units, IP67, USB logging with FieldLab Desktop.

From $694.60list price

Pick your exact configuration in the ordering table below to add it to your cart.

Same-day response on quotes. ISO/IEC 17025 accredited calibration available.

Overview

The Ralston LC20 is a digital pressure field gauge. Ralston describes it as a robust device that measures and displays pressure on a large backlit screen, shows high and low values, switches between 15 engineering units (or custom units), and works with the included FieldLab Desktop PC software for calibration, testing, and live viewing.

Compared with the Ralston LC10, the LC20 datasheet lists tighter accuracy (±0.1% vs ±0.25% of full scale) and an ISO 17025 accredited calibration certificate.

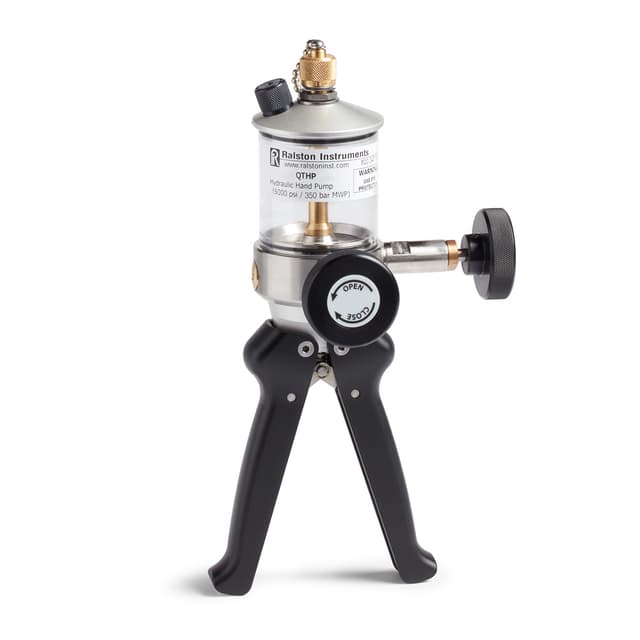

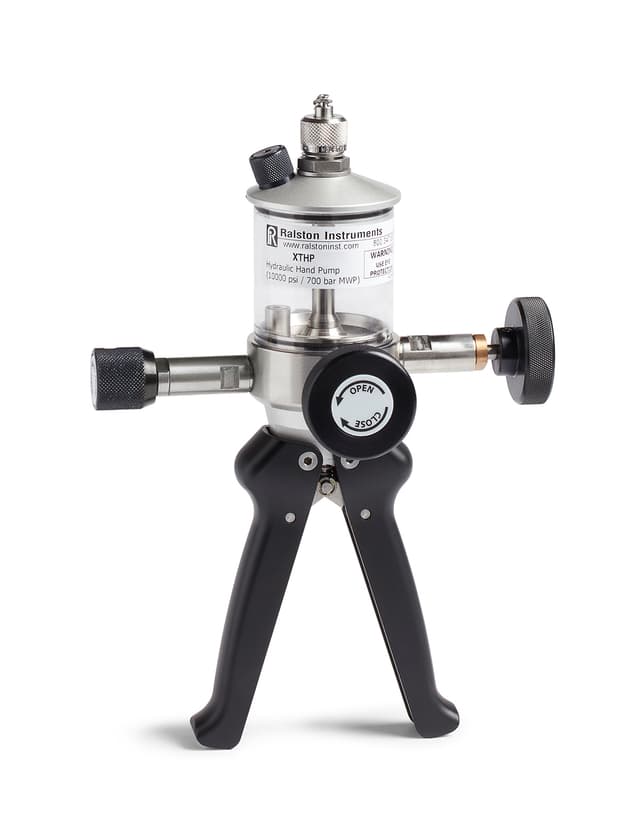

Pair with a Ralston hand pump and Quick-test hoses / adapters, or compare other digital pressure gauges.

Specifications

Key specifications (Ralston datasheet)
Accuracy	±0.1% of full scale (ASME B40.100 Grade 4A / ISO class 0.1)
Display	2.4 in (61 mm) backlit segmented LCD
Engineering units	15 selectable units plus custom units
Readings	High and low values shown on screen
Sensor	High-precision MEMS pressure sensor
Wetted materials	316 stainless steel
Ingress protection	IP67 (1 m water submersion for 30 minutes)
Power	2 × AA alkaline batteries
Data logging	PC based via USB (Micro B) with FieldLab Desktop software
Operating temperature	−4 to 120 °F (−20 to 50 °C)
Housing	ABS / polycarbonate blend with powder-coated aluminum
Battery life	1,000 hours
Calibration certificate	ISO 17025:2017 accredited (per Ralston datasheet)

Videos

Ralston Field Gauge LC20

Documents

Build your part number

Configure your LC20

Pick your options and we'll build the exact part number with a list-price estimate.

Range

Select a range to build your part number.

Ordering information

30 ordering models available.

Model	Description	List Price
LC20-GA2M-00-00	LC20 Vacuum gauge, 30Hg / 780 mmHg, 1/4" Male NPT bottom connection	$694.60
LC20-GA2M-00-B1	LC20 vacuum gauge, 30Hg / 780 mmHg, 1/4" Male NPT bottom conn., Bluetooth radio	$892.60
LC20-GB2M-00-00	LC20 pressure gauge, 5 psi / 35 kPa, 1/4" Male NPT bottom connection	$694.60
LC20-GB2M-00-B1	LC20 pressure gauge, 5 psi / 350 mbar / 35 kPa, 1/4" Male NPT bottom conn., Bluetooth radio	$892.60
LC20-GC2M-00-00	LC20 pressure gauge, +/- 15 psi / 100 kPa, 1/4" Male NPT bottom connection	$694.60
LC20-GC2M-00-B1	LC20 pressure gauge, +/- 15 psi / 1 bar / 100 kPa, 1/4" Male NPT bottom conn., Bluetooth radio	$892.60
LC20-GP2M-00-00	LC20 pressure gauge, 1000 psi / 7 MPa, 1/4" Male NPT bottom connection	$939.56
LC20-GP2M-00-B1	LC20 pressure gauge, 1000 psi / 70 bar / 7 MPa, 1/4" Male NPT bottom conn., Bluetooth radio	$1,068.34
LC20-GR2M-00-00	LC20 pressure gauge, 3000 psi / 20 MPa, 1/4" Male NPT bottom connection	$939.67
LC20-GR2M-00-B1	LC20 pressure gauge, 3000 psi / 200 bar / 20 MPa, 1/4" Male NPT bottom conn., Bluetooth radio	$1,064.69
LC20-GT2M-00-00	LC20 pressure gauge, 5000 psi / 35 MPa, 1/4" Male NPT bottom connection	$939.67
LC20-GT2M-00-B1	LC20 pressure gauge, 5000 psi / 350 bar / 35 MPa, 1/4" Male NPT bottom conn., Bluetooth radio	$1,064.66
LC20-GV2M-00-00	LC20 pressure gauge, 10,000 psi / 70 MPa, 1/4" Male NPT bottom connection	$939.67
LC20-GV2M-00-B1	LC20 pressure gauge, 10,000 psi / 700 bar / 70 MPa, 1/4" Male NPT bottom conn., Bluetooth radio	$1,067.38
LC20-GX2H-00-00	LC20 pressure gauge, 15,000 psi / 100 MPa, 1/4" Female High Pressure bottom connection	$972.04
LC20-GX2H-00-B1	LC20 pressure gauge, 15,000 psi / 100 MPa, 1/4" Female High Pressure bottom conn., Bluetooth radio	$1,170.04
LC20-GY2H-00-00	LC20 pressure gauge, 20,000 psi / 140 MPa, 1/4" Female High Pressure bottom connection	$972.04
LC20-GY2H-00-B1	LC20 pressure gauge, 20,000 psi / 140 MPa, 1/4" Female High Pressure bottom conn., Bluetooth radio	$1,170.04
LC20-GZ2H-00-00	LC20 pressure gauge, 30,000 psi / 200 MPa, 1/4" Female High Pressure bottom connection	$972.04
LC20-GZ2H-00-B1	LC20 pressure gauge, 30,000 psi / 200 MPa, 1/4" Female High Pressure bottomconn., Bluetooth radio	$1,170.04
LC20-VF2M-00-00	LC20 pressure gauge, -15 to 30 psi / -100 to 200 kPa, 1/4" Male NPT bottom connection	$694.60
LC20-VF2M-00-B1	LC20 pressure gauge, -15 to 30 psi / -100 to 200 kPa, 1/4" Male NPT bottom conn., Bluetooth radio	$892.60
LC20-VH2M-00-00	LC20 pressure gauge, -15 to 50 psi / -100 to 350 kPa, 1/4" Male NPT bottom connection	$694.60
LC20-VH2M-00-B1	LC20 pressure gauge, -15 to 50 psi / -100 to 350 kPa, 1/4" Male NPT bottom conn., Bluetooth radio	$892.60
LC20-VJ2M-00-00	LC20 pressure gauge, -15 to 100 psi / -100 to 700 kPa, 1/4" Male NPT bottom connection	$694.60
LC20-VJ2M-00-B1	LC20 pressure gauge, -15 to 100 psi / -100 to 700 kPa, 1/4" Male NPT bottom conn., Bluetooth radio	$892.60
LC20-VL2M-00-00	LC20 pressure gauge, -15 to 300 psi / -100 kPa to 2 MPa, 1/4" Male NPT bottom connection	$694.60
LC20-VL2M-00-B1	LC20 pressure gauge, -15 to 300 psi / -100 kPa to 2 MPa, 1/4" Male NPT bottom conn., Bluetooth radio	$892.60
LC20-VN2M-00-00	LC20 pressure gauge, -15 to 500 psi / -100 kPa to 3.5 MPa, 1/4" Male NPT bottom connection	$694.60
LC20-VN2M-00-B1	LC20 pressure gauge, -15 to 500 psi / -100 kPa to 3.5 MPa, 1/4" Male NPT bottom conn., Bluetooth radio	$892.60
