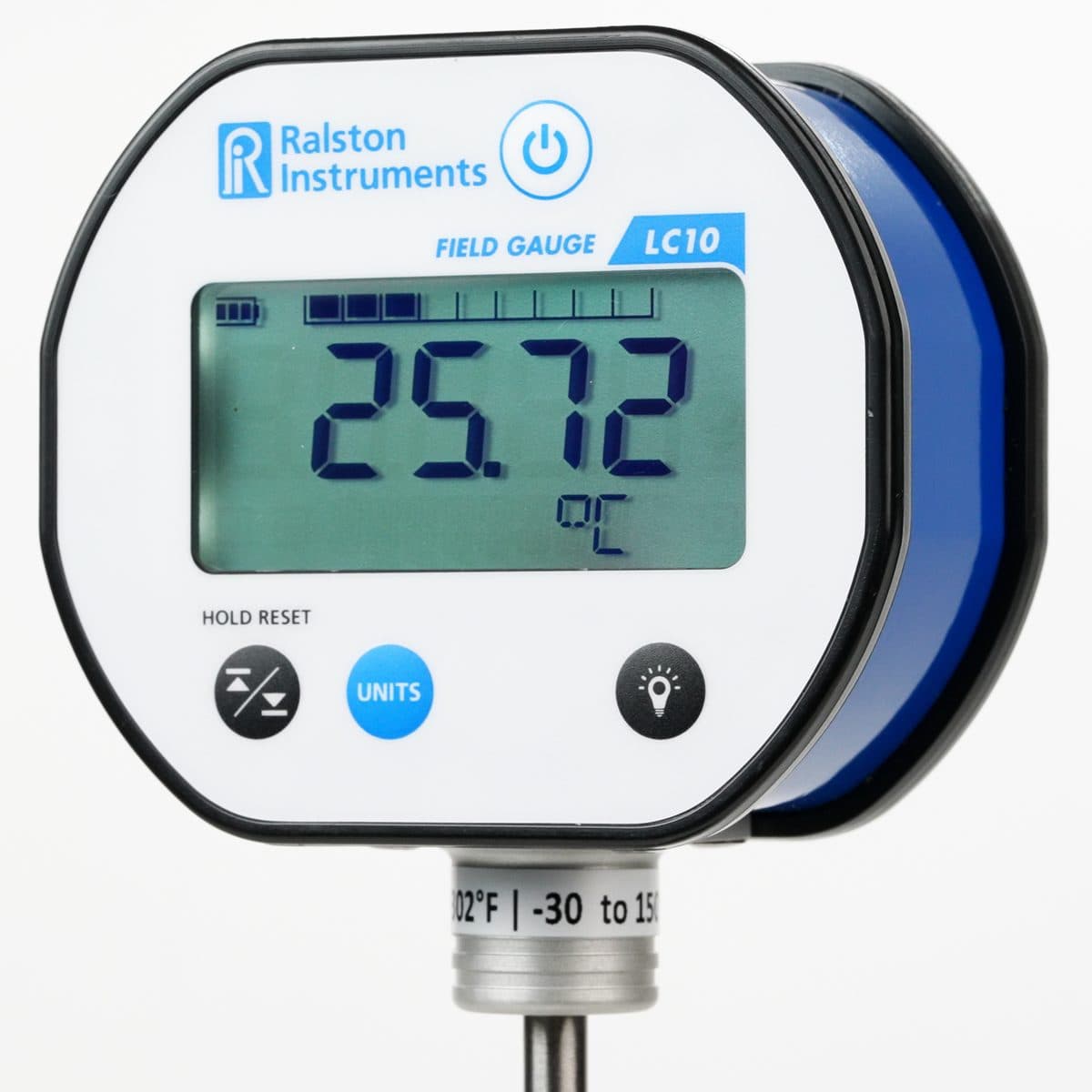

Ralston Field Gauge LC10-TA Digital Probe Thermometer
Ralston LC10 digital probe thermometer: 316 SS probe (1/8 in or 1/4 in × 12 in, bottom mounted), large backlit display, high/low readings, 4 temperature units, IP67, about 1,500 hours on 2 AA batteries.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Ralston LC10 digital probe thermometer is the temperature version of the LC10 field gauge. Per Ralston, it measures and displays temperature on a large backlit screen, shows high and low values on-screen, and switches between 4 engineering units. The included FieldLab Desktop PC software can be used for calibration, testing and live viewing of temperature.
Related
For an ISO 17025-certified temperature gauge with Bluetooth options, see the Ralston LC20 temperature probe field gauge. For pressure, see the Ralston LC10 field gauge.
Specifications
| Key specifications (Ralston datasheet) | |
| Models | LC10-TA1125 (1/8 in diameter × 12 in probe); LC10-TA12 (1/4 in diameter × 12 in probe); both bottom mounted |
| Wetted materials | 316 stainless steel |
| Display | 2.4 in (61 mm) backlit segmented LCD |
| Power | 2 × AA alkaline, about 1,500 hours |
| Data logging | PC based via USB (Micro B) |
| Ingress protection | IP67 (1 m submersion for 30 minutes) |
| Operating temperature (gauge) | −4 to 120 °F (−20 to 50 °C) |
| Housing | ABS / polycarbonate blend, powder-coated aluminum |
| Weight | 12.4 oz (350 g) |
| Calibration certificate | Not included (per Ralston datasheet) |
| Country of origin | USA |
Videos
Documents
Build your part number
Configure your LC10
Pick your options and we'll build the exact part number with a list-price estimate.
Select a range to build your part number.
Ordering information
2 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| LC10-TA1125 | LC10 Field Gauge temperature probe, 1/8 in diameter, 12 in long, bottom mounted | $621.00 | |
| LC10-TA12 | LC10 Field Gauge temperature probe, 1/4 in diameter, 12 in long, bottom mounted | $621.00 |
