Ralston

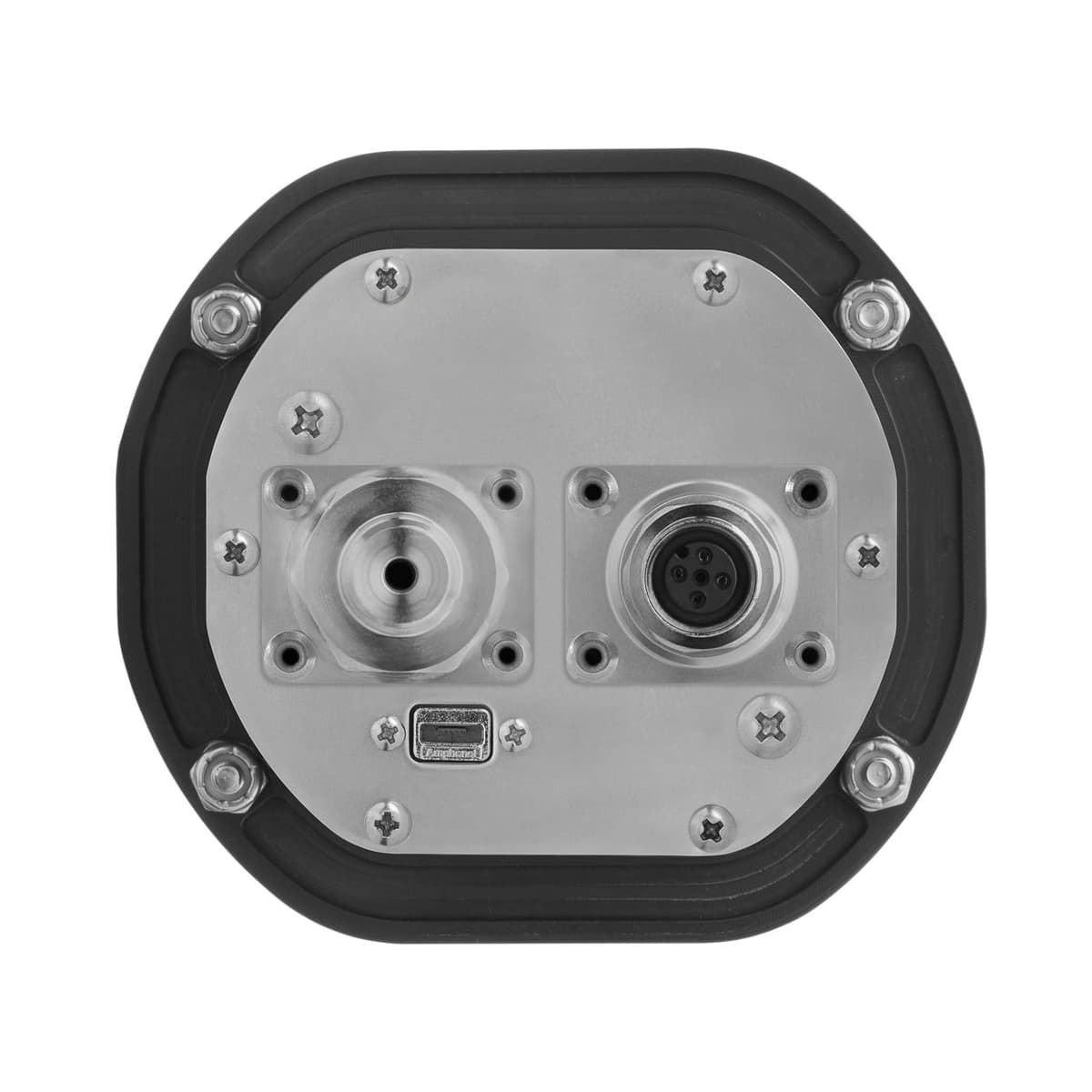

Ralston LC30 Pressure / Temperature Process Meter
Model LC30-PT
Ralston LC30 panel-mount pressure / temperature gauge: ±0.1% FS pressure, IEC 60751 Class A external temperature probe (−22 to 300 °F), AC powered with AAA backup, IP67, ISO 17025 certificate.
From $1,078.70list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Ralston LC30 pressure / temperature gauge is the panel-mount, AC-powered version of the LC pressure / temperature gauge. It reads pressure from the back connection and temperature from an external probe with an M12 connector. For example, LC30-GA2M-TX125-00 is a 30 inHg vacuum / temperature gauge. Per Ralston, the LC30 shows high and low values on-screen, switches between engineering units or custom units, and includes FieldLab Desktop PC software. Pressure ranges vary by model.
Related
Handheld version: Ralston LC20 pressure / temperature field gauge. Pressure-only panel gauge: Ralston LC30 field gauge.
Specifications
| Key specifications (Ralston datasheet) | |
| Mounting | Panel mount; 1/4" male NPT back connection |
| Pressure accuracy | ±0.1% of full scale (ASME B40.100 Grade 4A / ISO class 0.1) |
| Example model | LC30-GA2M-TX125-00: vacuum to 30 inHg (101.6 kPa) |
| Temperature accuracy | ±(0.15 + 0.002·|t|) °C (IEC 60751 Class A) |
| Temperature probe (TX125 models) | 1/4 in (6.35 mm) diameter, 12 in (30.5 cm) long, external cable; M12 female A-code connection (IP67) |
| Probe temperature range | −22 to 300 °F (−30 to 150 °C) |
| Temperature units | °C, °F, K, R |
| Power | AC mains 90–264 VAC, 50–60 Hz; backup 2 × AAA alkaline (about 1,000 hours) |
| Data logging | PC based via USB (Micro B) |
| Ingress protection | IP67 (1 m submersion for 30 minutes) |
| Calibration certificate | ISO 17025:2017 accredited |
Videos
Ralston Process Meter LC30
Documents
Build your part number
Configure your LC30
Pick your options and we'll build the exact part number with a list-price estimate.
Select a range to build your part number.
Ordering information
30 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| LC30-GA2M-TX125-00 | LC30 vacuum/temperature gauge, 30inHg vacuum back, 1/4" Male NPT, 1/4" Dia x 12" long external probe, 16ft cable | $1,078.70 | |
| LC30-GA2M-TX125-B1 | LC30 vacuum/temp. gauge, 30Hg vac back, 1/4" Male NPT, 1/4" Dia x 12" long ext. probe, 16ft cable, Bluetooth | $1,276.70 | |
| LC30-GB2M-TX125-00 | LC30 Pressure / temperature gauge, 5 psi pressure, 1/4" Male NPT back connection, 1/4" Dia x 12" long external probe, 16ft cable | $1,078.70 | |
| LC30-GB2M-TX125-B1 | LC30 pressure / temperature gauge, 5 psi back, 1/4" MNPT, M12 External Probe connection back, Bluetooth radio | $1,276.70 | |
| LC30-GC2M-TX125-00 | LC30 Pressure / temperature gauge, +/-15 psi pressure, 1/4" Male NPT back connection, 1/4" Dia x 12" long external probe, 16ft cable | $1,078.70 | |
| LC30-GC2M-TX125-B1 | LC30 pressure / temperature gauge, +/-15 psi back, 1/4" Male NPT, M12 External Probe connection back, Bluetooth radio | $1,276.70 | |
| LC30-GP2M-TX125-00 | LC30 Pressure / temperature gauge, 1000 psi pressure, 1/4" Male NPT back connection, 1/4" Dia x 12" long external probe, 16ft cable | $1,323.77 | |
| LC30-GP2M-TX125-B1 | LC30 pressure / temperature gauge, 1000 psi back, 1/4" MNPT, M12 External Probe connection back, Bluetooth radio | $1,521.77 | |
| LC30-GR2M-TX125-00 | LC30 Pressure / temperature gauge, 3000 psi pressure, 1/4" Male NPT back connection, 1/4" Dia x 12" long external probe, 16ft cable | $1,323.77 | |
| LC30-GR2M-TX125-B1 | LC30 pressure / temperature gauge, 3000 psi back, 1/4" MNPT, M12 External Probe connection back, Bluetooth radio | $1,521.77 | |
| LC30-GT2M-TX125-00 | LC30 Pressure / temperature gauge, 5000 psi pressure, 1/4" Male NPT back connection, 1/4" Dia x 12" long external probe, 16ft cable | $1,323.77 | |
| LC30-GT2M-TX125-B1 | LC30 pressure / temperature gauge, 5000 psi back, 1/4" MNPT, M12 External Probe connection back, Bluetooth radio | $1,521.77 | |
| LC30-GV2M-TX125-00 | LC30 Pressure / temperature gauge, 10000 psi pressure, 1/4" Male NPT back connection, 1/4" Dia x 12" long external probe, 16ft cable | $1,323.77 | |
| LC30-GV2M-TX125-B1 | LC30 pressure / temperature gauge, 10000 psi back, 1/4" MNPT, M12 External Probe connection back, Bluetooth radio | $1,521.77 | |
| LC30-GX2H-TX125-00 | LC30 Pressure / temperature gauge, 15000 psi pressure back connection, 1/4" Dia x 12" long external probe, 16ft cable | $1,356.14 | |
| LC30-GX2H-TX125-B1 | LC30 pressure / temperature gauge, 15000 psi back, M12 External Probe connection back, Bluetooth radio | $1,554.14 | |
| LC30-GY2H-TX125-00 | LC30 Pressure / temperature gauge, 20000 psi pressure back connection, 1/4" Dia x 12" long external probe, 16ft cable | $1,356.14 | |
| LC30-GY2H-TX125-B1 | LC30 pressure / temperature gauge, 20000 psi back, M12 External Probe connection back, Bluetooth radio | $1,554.14 | |
| LC30-GZ2H-TX125-00 | LC30 Pressure / temperature gauge, 30000 psi pressure back connection, 1/4" Dia x 12" long external probe, 16ft cable | $1,356.14 | |
| LC30-GZ2H-TX125-B1 | LC30 pressure / temperature gauge, 30000 psi back, M12 External Probe connection back, Bluetooth radio | $1,554.14 | |
| LC30-VF2M-TX125-00 | LC30 Pressure / temperature gauge, 30 psi pressure, 1/4" Male NPT back connection, 1/4" Dia x 12" long external probe, 16ft cable | $1,078.70 | |
| LC30-VF2M-TX125-B1 | LC30 pressure / temperature gauge, -15 to 30 psi back, 1/4" MNPT, M12 External Probe connection back, Bluetooth radio | $1,276.70 | |
| LC30-VH2M-TX125-00 | LC30 Pressure / temperature gauge, -15 to 50 psi pressure, 1/4" Male NPT back connection, 1/4" Dia x 12" long external probe, 16ft cable | $1,078.70 | |
| LC30-VH2M-TX125-B1 | LC30 pressure / temperature gauge, 50 psi back, 1/4" MNPT, M12 External Probe connection back, Bluetooth radio | $1,276.70 | |
| LC30-VJ2M-TX125-00 | LC30 Pressure / temperature gauge, -15 to 100 psi pressure, 1/4" Male NPT back connection, 1/4" Dia x 12" long external probe, 16ft cable | $1,078.70 | |
| LC30-VJ2M-TX125-B1 | LC30 pressure / temperature gauge, 100 psi back, 1/4" MNPT, M12 External Probe connection back, Bluetooth radio | $1,276.70 | |
| LC30-VL2M-TX125-00 | LC30 Pressure / temperature gauge, -15 to 300 psi pressure, 1/4" Male NPT back connection, 1/4" Dia x 12" long external probe, 16ft cable | $1,078.70 | |
| LC30-VL2M-TX125-B1 | LC30 pressure / temperature gauge, -15 to 300 psi back, 1/4" MNPT, M12 External Probe connection back, Bluetooth radio | $1,276.70 | |
| LC30-VN2M-TX125-00 | LC30 Pressure / temperature gauge, -15 to 500 psi pressure, 1/4" Male NPT back connection, 1/4" Dia x 12" long external probe, 16ft cable | $1,078.70 | |
| LC30-VN2M-TX125-B1 | LC30 pressure / temperature gauge, 500 psi back, 1/4" MNPT, M12 External Probe connection back, Bluetooth radio | $1,276.70 |
