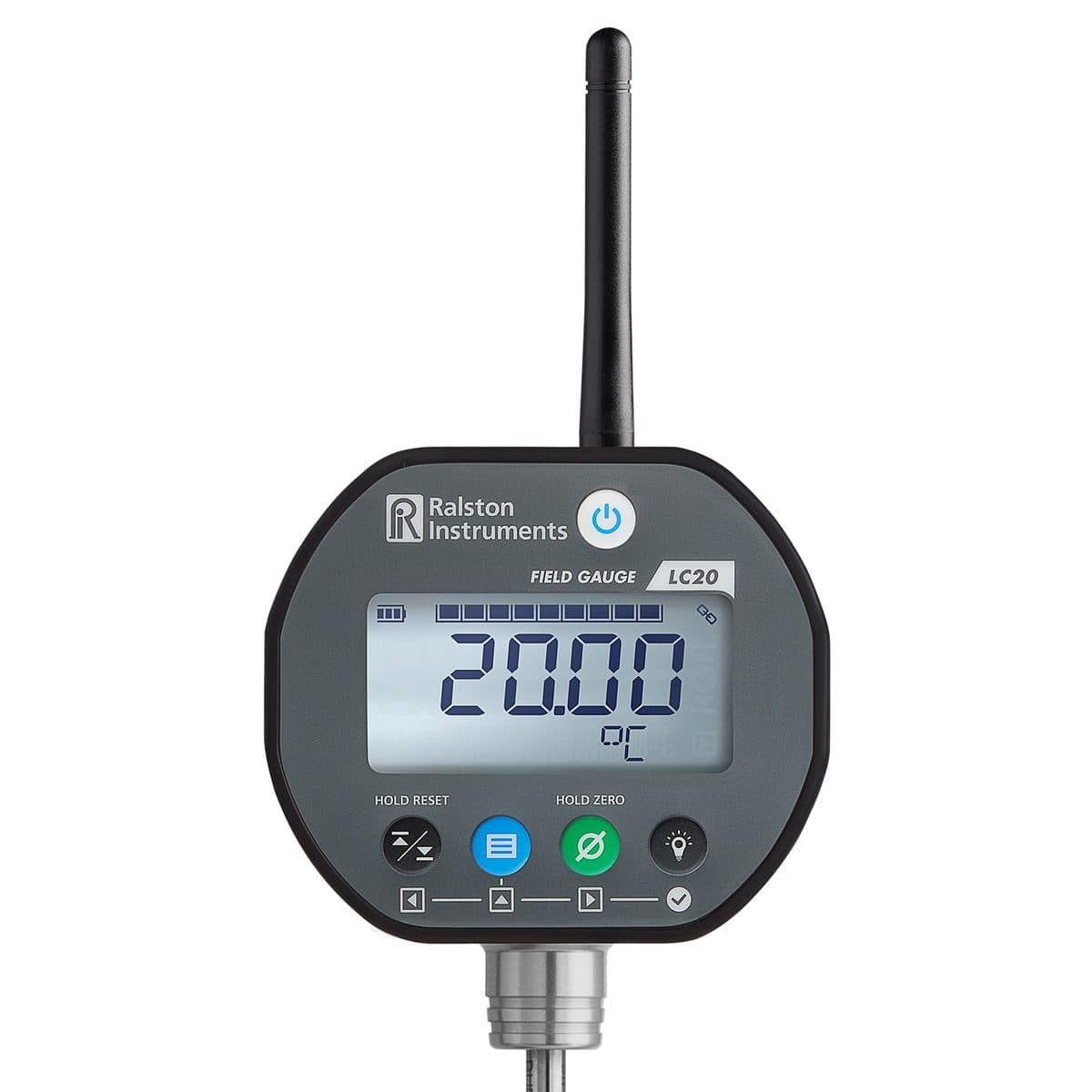

Ralston Temperature Probe Field Gauge LC20
Ralston LC20 temperature probe field gauge: IEC 60751 Class A probe accuracy, 316 SS probe, backlit display, Bluetooth models with FieldLab Mobile logging, IP67, ISO 17025 certificate.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Ralston LC20 temperature field gauge measures and displays temperature on a large backlit screen, shows high and low values, and switches between 4 engineering units. Bluetooth models connect to the FieldLab Mobile app (iOS and Android) to monitor or log temperature.
Related
For pressure and temperature in one gauge, see the Ralston LC20 pressure / temperature field gauge; for pressure only, the LC20 field gauge.
Specifications
| Key specifications (Ralston datasheet) | |
| Temperature accuracy | ±(0.15 + 0.002·|t|) °C (IEC 60751 Class A) |
| Probe (LC20-TA1125-00-B1) | 1/8 in (3.18 mm) diameter, 12 in (30.5 cm) long, bottom mount, 316 stainless steel |
| Wireless (B1 models) | Bluetooth 5 LE, range up to 330 ft (100 m) |
| Onboard logging (B1 models) | 870 readings |
| Display | 2.4 in (61 mm) backlit segmented LCD |
| Power | 2 × AA alkaline, about 1,000 hours |
| Ingress protection | IP67 |
| Operating temperature (gauge) | −4 to 120 °F (−20 to 50 °C) |
| Calibration certificate | ISO 17025:2017 accredited (per Ralston datasheet) |
Documents
Build your part number
Configure your LC20
Pick your options and we'll build the exact part number with a list-price estimate.
Select a range to build your part number.
Ordering information
2 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| LC20-TA1125-00-B1 | LC20 Field Gauge temperature probe, 1/8 in diameter, 12 in long, bottom mounted, Bluetooth radio | $933.80 | |
| LC20-TA12-00-B1 | LC20 Field Gauge temperature probe, 1/4 in diameter, 12 in long, bottom mounted, Bluetooth radio | $933.80 |
Related products
Official compatibility and accessories for this model - not look-alike suggestions.
