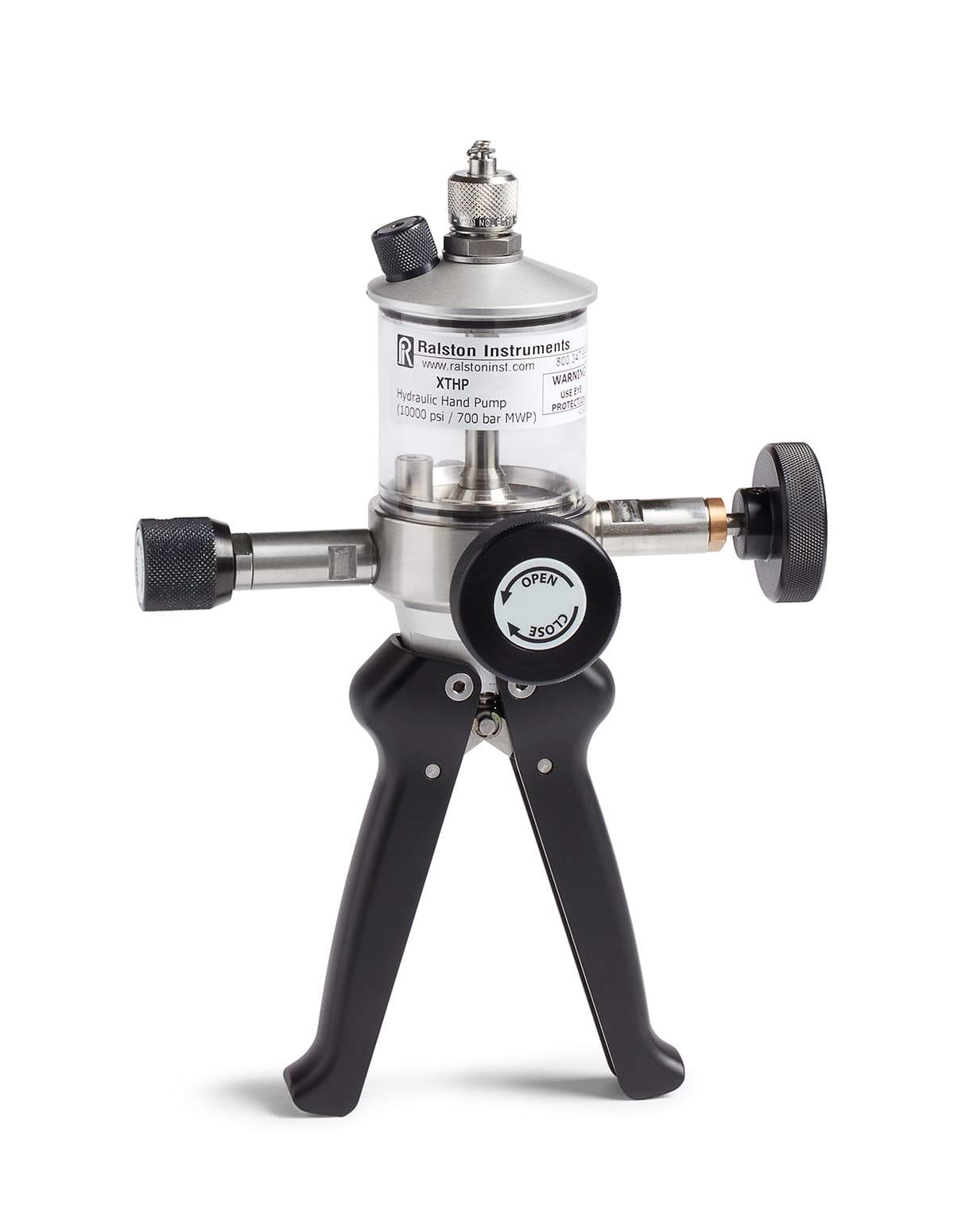

Ralston XTHP Hydraulic Hand Pump
Ralston XTHP hydraulic hand pump: up to 10,000 psi (700 bar) with 0.01 psi fine adjustment, two Quick-test XT outlet ports, and a 4.2 fl oz reservoir.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Ralston XTHP is a hydraulic hand pump for high-pressure calibration and testing to 10,000 psi (700 bar), with two Quick-test XT outlet ports and a wide list of compatible fluids.
Related
For hydraulic kits, see Ralston QTHP hydraulic hand pump kits. Read the pump against a digital pressure gauge or pressure calibrator, and connect with Quick-test hoses and fittings.
Specifications
| Key specifications (Ralston datasheet) | |
| Max pressure | 10,000 psi / 700 bar / 70 MPa |
| Fine adjustment resolution | 0.01 psi / 70 Pa |
| Outlet ports | Male Quick-test XT; male Quick-test XT with cap and chain |
| Reservoir volume | 4.2 fl oz |
| Compatible fluids | Water, hydraulic oil, mineral oil, petroleum-based oil, alcohol, antifreeze / ethylene glycol, transmission fluid, light motor oil, windshield washer fluid, Ralston calibration oil |
| Pump materials | Anodized aluminum, stainless steel, Delrin, polysulfone |
| Seal materials | Teflon, Viton |
| Operating temperature | −15 to 140 °F (−26 to 60 °C) |
| Burst pressure | 40,000 psi / 2,760 bar |
| Pump weight | 3.12 lb / 1.41 kg |
Videos
Documents
Build your part number
Configure your XTHP
Pick your options and we'll build the exact part number with a list-price estimate.
Select a included items to build your part number.
Specify the included items for a hydraulic hand pump to work with your reference gauge and process connection. Pump is 10,000 psi / 70 MPa. Shipping and tax are confirmed when we review your order.
Ordering information
6 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| XTHP-10KPSIG-FL | 10kpsi / 70 MPa Hydraulic hand pump, 3 ft hose, 10,000 psi FieldLab | $4,224.43 | |
| XTHP-2FSA | 10kpsi / 70 MPa Hydraulic hand pump, 2 Quick-test XT outlet ports, 3 ft hose, 1/4" FNPT gauge conn., 1/4" MNPT Process conn. | $1,456.61 | |
| XTHP-KIT2 | XTHP hydraulic pump, 3 gauge adapters - (1/4" MNPT, 1/8" MNPT, 1/4" FNPT), 3ft hose, zippered bag, carrying case | $1,923.85 | |
| XTHP-KIT3-GV | XTHP hydraulic pump, 10,000 psi/70 Mpa LC20 gauge, 3ft hose, 1/4" MNPT adapter, zippered bag, carrying case | $2,737.20 | |
| XTHP-KIT3-GV-B1 | XTHP hydraulic pump, 10,000 psi LC20 gauge with Bluetooth, 3ft hose, 1/4" MNPT adapter, case, zippered bag | $2,864.91 | |
| XTHP-KIT5-GV | XTHP hydraulic pump, 10,000 psi/70 Mpa LC20 gauge, 3ft hose, 1/4" MNPT adapter | $2,396.28 |
