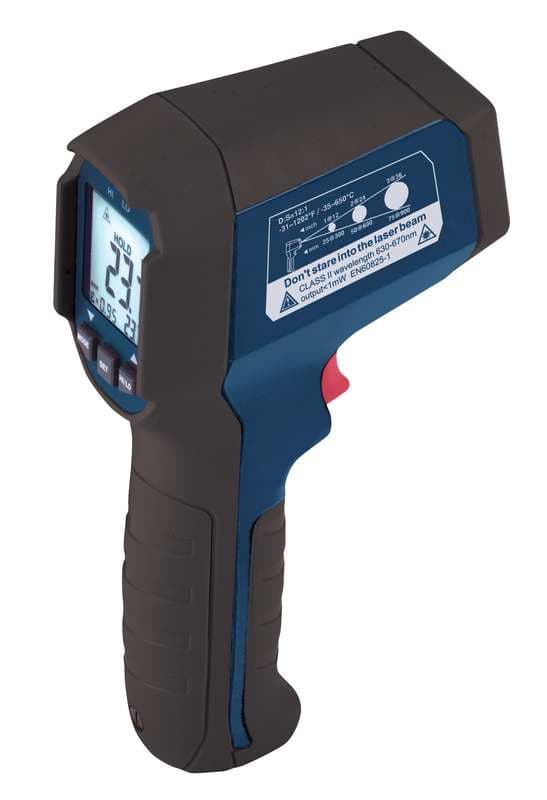

Reed R2310 Ir Thermometer
Model R2310
REED R2310 Infrared Thermometer: built-in laser pointer identifies target area; 12:1 distance-to-spot; range 10 to 90%. User selectable °F or °C.
From $129.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R2310 is an infrared thermometer from REED Instruments.
Features (REED datasheet)
- Built-in laser pointer identifies target area.
- User selectable °F or °C.
- 12:1 distance to spot size ratio.
- Digitally adjustable emissivity.
- Max, Min, Average and Differential readings.
- Backlit display.
- High and low alarms.
- Dustproof and Drop tested.
- Trigger lock for continuous monitoring.
- Low battery indication and auto shut off.
- Includes carrying case and battery.
Specifications
| Ranges | |
| Resolution | 0.1°F (0.1°C) |
| Optical Resolution (D:S) | 12:1 |
| Spectral Response | 8 to 14μm |
| Emissivity | 0.1 to 1.0 (Adjustable) |
| Response Time | 250ms |
| Laser Type | Class II |
| Power | |
| Power Supply | 9V battery |
| Battery Life | Approx. 10 hours (with continuous use, backlight on) |
| Environmental | |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 10 to 90% |
| Maximum Operating Altitude | 6561' (2000m) |
| Maximum Storage Altitude | 39370' (12000m) |
| General | |
| Alarm Indicators | LED (High: Red, Low: Blue) |
| Average and Differential | Yes |
| Trigger Lock | Yes |
| Drop Tested | Yes, 9.8' (3M) |
| Product Certifications | CE, RoHS, IP65 |
| Dimensions | 7.4 x 4.7 x 2.2" (189 x 118 x 55mm) |
| Weight | 10.3oz (292g) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R2310-NIST | IR THERMOMETER, IP65, 12:1, -31/1202°F, -35/650°C W/NIST CERT | $299.00 |
