REED Instruments

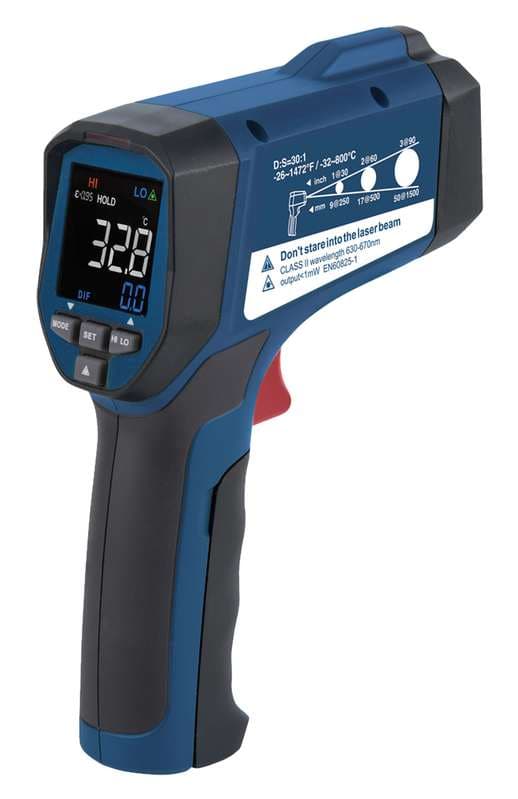

Reed R2320 Ir Thermometer
Model R2320
REED R2320 Infrared Thermometer: built-in laser pointer identifies target area; 30:1 distance-to-spot; range -26 to 1472°F (-32 to 800°C). User selectable °F or °C.
From $189.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R2320 is an infrared thermometer from REED Instruments.
Features (REED datasheet)
- Built-in laser pointer identifies target area.
- User selectable °F or °C.
- 30:1 Distance to Spot size ratio.
- Bright color display (EBTN).
- Digitally adjustable emissivity.
- Max, Min, Average and Differential readings.
- Audible (beep) and visual (tri-color LED) user adjustable alarms.
- Internal memory stores up to 5 pre-set high & low alarms and 5 emissivity settings.
- Trigger lock and tripod mount for continuous monitoring.
- Low battery indication and auto shut off.
- Includes carrying case and battery.
Specifications
| Accuracy | |
| Accuracy | Basic: ±1.8% of reading or 3.6°F (1.8°C), "or": choose whichever is greater Detailed: ≥0°C: ±1.8°C or ±1.8% of reading, "or": choose whichever is greater |
| Repeatability | 0.7°C or 0.7%, whichever is greater (1.5°F or 0.7%, whichever is greater) |
| Ranges | |
| Temperature Range | -26 to 1472°F (-32 to 800°C) |
| Detailed Resolution | 0.1°F (0.1°C) |
| Optical Resolution (D:S) | 30:1 |
| Spectral Response | 8 to 14μm |
| Emissivity | 0.1 to 1.0 (Adjustable) |
| Response Time | 250ms |
| Power | |
| Power Supply | 9V Battery |
| Battery Life | Approx. 10 hours (with continuous use, backlight on) |
| Environmental | |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 10 to 90% |
| Maximum Operating Altitude | 6561' (2000m) |
| Maximum Storage Altitude | 39370' (12000m) |
| General | |
| Backlit Display | Yes (Color EBTN) |
| High/Low Alarms | Yes (audible and visual) |
| Alarm Indicators | LED (High: Red, Low: Blue) |
| Average and Differential | Yes |
| Trigger Lock | Yes |
| Laser Class | Class II |
| Product Certifications | CE, RoHS |
| Dimensions | 7 x 4.98 x 2" (179 × 126.5 × 53mm) |
| Weight | 10.95oz (310g) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R2320-NIST | IR THERMOMETER, PROFESSIONAL, 30:1, -26/1472°F, -32/800°C W/NIST CERT | $359.00 |
