REED Instruments

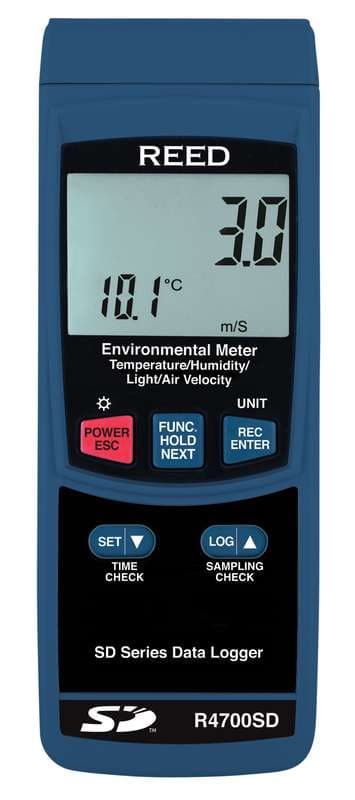

Reed R4700SD Data Logging Environmental Meter
Model R4700SD
REED R4700SD Data Logging Environmental Meter: measures air velocity/temperature, ambient temperature, relative humidity, light, and contact temperature.
From $319.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R4700SD is a data logging environmental meter from REED Instruments.
Features (REED datasheet)
- Measures air velocity/temperature, ambient temperature, relative humidity, light, and contact temperature.
- Measures sound level (dB) with R4700SD-SOUND (sold seperately).
- Air velocity is measured in m/s, ft/min, km/h, mph or knots.
- Light levels are measured in foot-candles or lux.
- Temperature is measured in °C or °F.
- Data hold and Max/Min functions.
- Real-time datalogger with integrated SD memory card.
- User selectable sampling rate from 1 to 3600 seconds.
- Easy-to-read backlit LCD display.
- Tripod mount for long-term monitoring.
- Low battery indicator and auto shut off.
- Includes multi-function probe, hard carrying case & batteries.
Specifications
| Accuracy | |
| Air Velocity Accuracy | ±2% + 0.2 m/s (0.8 km/h; 0.4 mph; 40 fpm; 0.4 knot) |
| Temperature Accuracy | Air Temperature: ±0.8°C (±1.5°F) Contact Temperature: ≥-58°F (-50°C) ±(0.4% + 1.5°F (0.8°C)) ≤-58°F (-50°C) ±(0.4% + 1.8°F (1°C)) |
| Humidity Accuracy | >70%RH: ±(3% rdg + 1%RH) <70%RH: ±3%RH |
| Light Accuracy | ±(5% rdg ± 8 dgt) |
| Ranges | |
| Air Velocity Measuring Ranges | m/s: 0.4 to 30.0 |
| Air Velocity Resolution | 0.1 m/s, km/h, mph, knot, 1 fpm |
| Temperature Measuring Ranges | Air Temperature: 32 to 122.0°F (0 to 50°C) Contact Temperature: Type K Temperature: -148 to 2372°F (-100 to 1300°C) Type J Temperature: -148 to 2192°F (-100 to 1200°C) |
| Temperature Resolution | 0.1°F/°C |
| Humidity Measuring Range | 5 to 95% RH |
| Humidity Resolution | 0.1% RH |
| Light Measuring Ranges | 0 to 20,000 Lux (0 to 1,860 Ft-cd) |
| Light Resolution | 1 Lux/0.1 Ft-cd |
| General | |
| km/h | 1.4 to 108 |
| mph | 0.9 to 67.1 |
| fpm | 79 to 5906 |
| knots | 0.8 to 58.3 |
Documents
Ordering information
2 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R4700SD-KIT | DATA LOGGING ENVIRONMENTAL METER WITH POWER ADAPTER AND SD CARD | $349.00 | |
| R4700SD-NIST | DATA LOGGING ENVIRONMENTAL METER W/NIST CERT | $784.00 |
