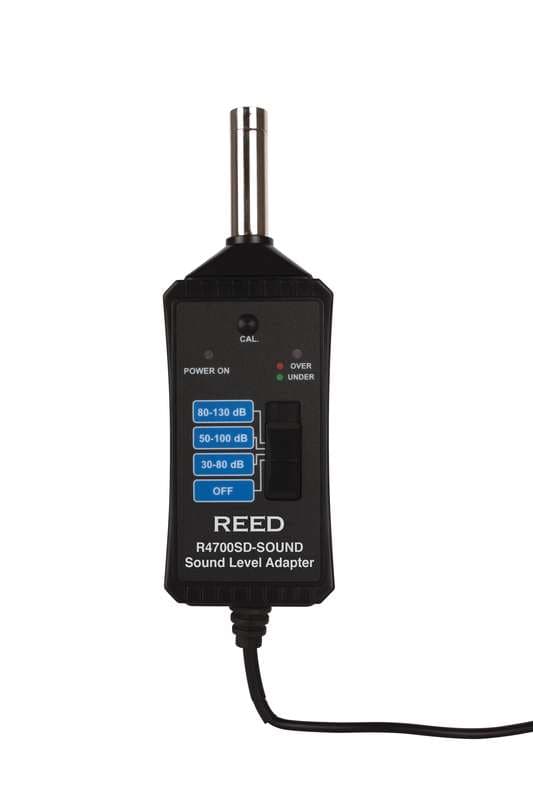

Reed R4700SD-SOUND Sound Level Meter Adapter For R4700Sd & Sd-9300

Overview

REED R4700SD-SOUND Sound Level Adapter. This adapter cooperates with the R4700SD & SD-9300 Data Logging Environmental Meters as a professional sound level meter. The frequency weighting networks are designed to meet the IEC 61672 class 2.

Cooperates with the R4700SD & SD-9300 Data Logging Environmental Meter as a professional sound level meter.

Features (REED)

• 30 to 130 dB, 3 ranges
• Frequency weighting networks are designed to meet the IEC 61672 class 2
• A weighting networks are conformity to standards
• Fast Time weighting dynamic characteristic modes
• Condenser microphone for high accuracy & long-term stability
• Over/Under indicator
• Low battery indicator
• Electric condenser microphone
• Size of microphone: 1/2" standard size

Specifications (REED)

• Measurement Range 1: 30 to 80 dB
• Measurement Range 2: 50 to 100 dB
• Measurement Range 3: 80 to 130 dB
• Output: 10 mV per 1 dB
• Battery: DC 9V Battery
• Power Consumption: Approx. DC 12 mA
• Operating Temperature: 0 to 50°C (32 to 122°F)
• Operating Humidity: Less than 80% RH
• Weight: 220 g/0.49 lb (including battery)
• Dimensions: Main Unit: 107 x 53 x 29 mm ( 4.2 x 2.1 x 1.1") Probe: Dia. 12.7 mm x 58 mm ( Dia. 0.5 inch x 2.28")

Related

For use with: REED R4700SD.
