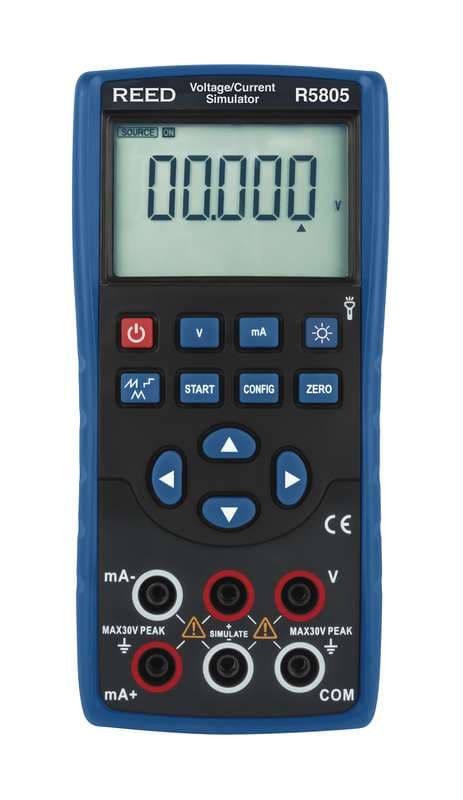

Reed R5805 Voltage/Current Simulator
Model R5805
REED R5805 voltage/current simulator: sources -1 to 11 V and 0 to 30 mA at ±0.05% rdg., with 6-digit backlit LCD, kickstand and built-in flashlight.
From $449.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R5805 voltage/current simulator accurately sources both voltage and current for a wide range of testing and calibration jobs. A clear 6-digit LCD and a kickstand make it easy to read and use hands-free.
Features (REED datasheet)
- Sources DC voltage (-1.000 to 11.000V) and DC current (0.000 to 30.000mA).
- Accuracy ±0.05% rdg. +2mV (voltage) and ±0.05% rdg. +4μA (current).
- Easy-to-read, backlit 6-digit LCD.
- Built-in LED flashlight and zero adjustment button.
- Automatic calibration.
- Low battery indicator and auto shut-off.
- Compatible with the R5900 magnetic meter strap (sold separately).
- Includes test leads, alligator clips and batteries.
Applications (REED datasheet)
- Testing and calibrating meters, data loggers and process controllers.
- Simulating sensor outputs for troubleshooting and diagnostics.
- Configuring and verifying industrial control systems.
- Providing precise voltage/current signals for automation testing.
- Validating the performance of power supplies and electrical circuits.
- Checking instrumentation used in HVAC, energy and utilities.
For multifunction sourcing and measuring, see process calibrators.
Specifications
| DC Voltage | |
| Range | 10V |
| Output Range | -1.000 to 11.000V |
| Resolution | 0.001V |
| Accuracy | ±0.05% rdg. +2mV |
| DC Current | |
| Range | 30mA |
| Output Range | 0.000 to 30.000mA |
| Resolution | 0.001mA |
| Accuracy | ±0.05% rdg. +4μA |
| General | |
| Display | 6-digit LCD, backlit |
| Kick Stand | Yes |
| Magnetic Hanger Compatible | Yes (R5900 sold separately) |
| Built-In Flashlight | Yes |
| Zero Adjustment Button | Yes |
| Power | |
| Power Supply | 3 AA batteries |
| Battery Life | Approx. 20 hours |
| General | |
| Auto Shut Off | Yes (up to 60 minutes/off) |
| Low Battery Indicator | Yes |
| Replaceable Test Leads | Yes |
| Product Certifications | CE |
| Environmental | |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Operating Humidity | 0 to 85% |
| Storage Temperature | 14 to 122°F (-10 to 50°C) |
| General | |
| Dimensions | 7.5 x 3.5 x 2.1" (191 x 90 x 53mm) |
| Weight | 17.6oz (500g) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R5805-NIST | VOLTAGE/CURRENT SIMULATOR W/NIST CERT | $689.00 |
