REED Instruments

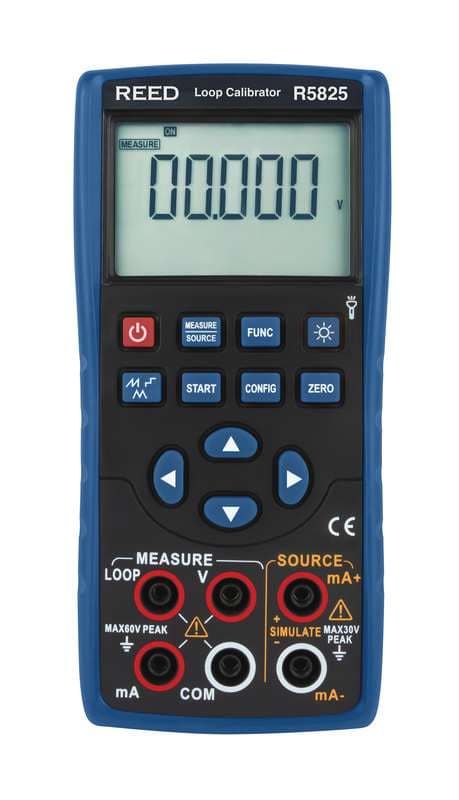

Reed R5825 Loop Calibrator
Model R5825
REED R5825 Loop Calibrator: internal 24V loop power supply Replaceable Test Leads Yes.
From $499.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R5825 loop calibrator is designed to provide precise mA sourcing and measurement. With 0-30 VDC measurement capabilities, it ensures reliable loop voltage checks and offers exceptional accuracy of 0.02% for measurement and 0.05% for sourcing, allowing for precise mA and % simulation with a 0.001% display span, along with selectable step or ramp outputs.
Features (REED datasheet)
- mA sourcing and measurement.
- 0-30 VDC measurement to check loop voltage.
- Basic measurement/sourcing accuracy of 0.02% and 0.05%, respectively.
- Simulate mA and % with 0.001% display span.
- Selectable step or ramp outputs.
- Easy to read 6-digit LCD display.
- Built-in LED flashlight.
- Internal 24V loop power supply.
- Low battery indicator and auto shut off.
- Includes test leads, alligator clips and batteries.
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R5825-NIST | LOOP CALIBRATOR W/NIST CERT | $739.00 |
