REED Instruments

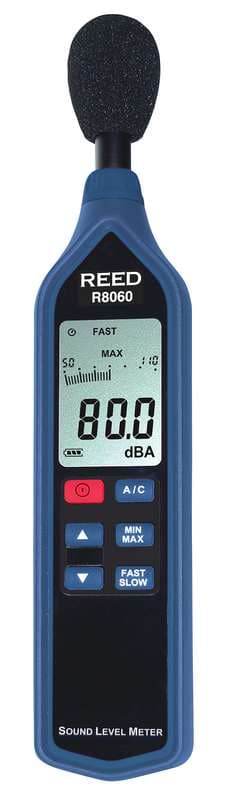

Reed R8060 Sound Level Meter

Model R8060

REED R8060 Sound Level Meter: high accuracy of ±1.4dB meets Type 2 standards; range 30 to 130dB. Triple range measurement (60dB dynamic range).

From $229.00list price

Pick your exact configuration in the ordering table below to add it to your cart.

Same-day response on quotes. ISO/IEC 17025 accredited calibration available.

Overview

The REED R8060 is a sound level meter from REED Instruments.

Features (REED datasheet)

  • High accuracy of ±1.4dB meets Type 2 standards.
  • Triple range measurement (60dB dynamic range).
  • A & C frequency weighting.
  • Fast & Slow time weighting.
  • Large, easy-to-read LCD display.
  • Digital analog bargraph.
  • Min/Max hold.
  • AC/DC output signal for use with dataloggers.
  • Tripod mount for long-term monitoring.
  • Low battery indicator and auto shut off.
  • Includes windshield ball, soft carrying case and battery.

Specifications

Accuracy
Accuracy±1.4dB
Ranges
Measuring Ranges30 to 130dB
Dynamic Range60dB (in each range)
ResolutionDigital: 0.1dB
Response TimeDigital: 500ms
Frequency Range20Hz to 8kHz
Frequency WeightingA, C
Power
Power Supply9V Battery
General
Low30 to 90dB
Med50 to110dB
High70 to 130dB
Analog2dB
Analog100ms
Time WeightingFast/Slow (125mS and 1s)
Microphone0.5" (12.7mm) electret condenser
Digital Analog BargraphYes (30 segment)
Display4-digit LCD
Alarm IndicatorsUnder and Over (visual on-screen)
Auto Shut-offYes (after 30 mins/off)

Documents

Ordering information

1 ordering models available.

ModelDescriptionList Price
R8060-NISTSOUND LEVEL METER, BARGRAPH W/NIST CERT$544.00
