REED Instruments

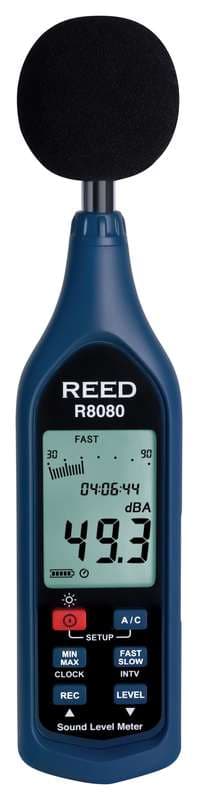

Reed R8080 Data Logging Sound Level Meter
Model R8080
REED R8080 Data Logging Sound Level Meter: high accuracy of ±1.4 dB meets Type 2 standards; range 30 to 130 dB. Triple range measurement (60dB dynamic range).
From $329.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R8080 is a data logging sound level meter from REED Instruments.
Features (REED datasheet)
- High accuracy of ±1.4 dB meets Type 2 standards.
- Triple range measurement (60dB dynamic range).
- A & C frequency weighting.
- Fast & Slow time weighting.
- Record up to 64,000 datapoints and keep track with internal time and date stamp.
- User selectable sampling rate from 1 to 60 seconds.
- Large, easy-to-read backlit LCD display.
- Digital analog bargraph.
- Min/Max hold and auto shut off.
- Tripod mount for long-term monitoring.
- Low battery indicator.
- Includes windshield ball, USB cable, PC software, hard carrying case and batteries 30 to 130 dB.
Specifications
| Accuracy | |
| Accuracy | ±1.4 dB |
| Ranges | |
| Measuring Ranges | 30 to 130 dB |
| Dynamic Range | 60 dB (in each range) |
| Resolution | Digital: 0.1 dB |
| Response Time | Digital: 500ms |
| Frequency Range | 20Hz to 8kHz |
| Frequency Weighting | A, C |
| Power | |
| Power Supply | 4 x AAA Batteries |
| Battery Life | Approx 50 hours |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity | 10 to 90% |
| General | |
| Low | 30 to 90 dB |
| Med | 50 to 110 dB |
| High | 70 to 130 dB |
| Full | 30 to 130 dB |
| Analog | 2 dB |
| Analog | 50ms |
| Time Weighting | Fast/Slow (125ms and 1s) |
| Microphone | 0.5" (12.7mm) electret condenser Digital Analog Bargraph: Yes (30 segment) |
| Display | 4-digit LCD |
| Alarm Indicators | Under and Over (visual on-screen) Datalogging Capabilities: |
| and Date Stamp | Yes |
| Internal Memory | 1mb (64,000 datapoints) |
| Auto Shut-off | Yes (after 30 mins/off) |
| Output | Yes (AC/DC) |
| PC Connectivity | USB |
| Software OS Compatibility | Windows XP/Vista/7/8/10/11 |
Documents
Ordering information
4 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R8080-KIT | SOUND LEVEL METER DATA LOGGER & CALIBRATOR KIT | $629.00 | |
| R8080-KIT2 | DATA LOGGING SOUND METER WITH TRIPOD | $389.00 | |
| R8080-KIT-NIST | DATA LOGGING SOUND LEVEL METER W/ CALIBRATOR KIT, W/NIST CERT | $1,034.00 | |
| R8080-NIST | DATA LOGGING SOUND LEVEL METER W/NIST CERT | $644.00 |
