REED Instruments

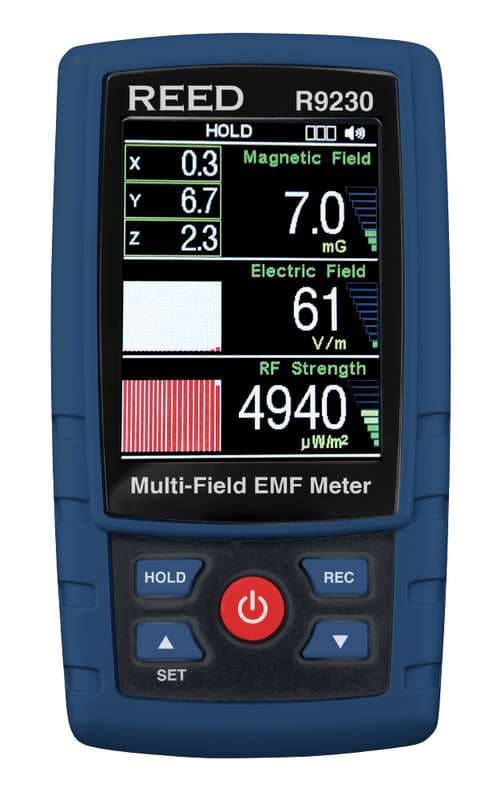

Reed R9230 3-Axis Emf / Rf Detector
Model R9230
REED R9230 Multi-Field EMF Meter: magnetic field, electric field, and radio frequency (RF) Audible Alarm: Yes strength measurements Auto Shut-off: Yes (after 10 mins); range 50 MHz to 3.5 GHz.
$449.00list price
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R9230 is a multi-field EMF meter from REED Instruments.
Features (REED datasheet)
- Magnetic field, electric field, and radio frequency (RF) strength measurements.
- 2.4" (50.8mm) (240 x 320 pixels) color TFT display.
- Triple axis (X, Y, Z) RF, EMF and ELF sensor.
- Audible alarm.
- Data Hold and Min/Max functions.
- Low battery indicator and auto shut-off.
- Includes batteries.
Specifications
| Accuracy | |
| RF Strength Accuracy | ±1dB at 1V/m and 900MHz |
| Magnetic Field Accuracy | ±12% rdg +5 dgt |
| Electric Field Accuracy | ±10% rdg + 60 dgt |
| Ranges | |
| RF Strength Measuring Range | 30.0mV/m to 11.00V/m 0.02 to 32.0uW/cm2 2.3μW/m2 to 320.9mW/m2 0.07 to 29.1mA/m |
| Frequency Range | 50 MHz to 3.5 GHz |
| RF Strength Resolution | 0.01, 0.1mV/m / 0.01V/m 0.01, 0.1μW/cm2 0.1, 1μW/m2 / 0.1mW/m2 0.01, 0.1mA/m |
| Magnetic Field Measuring Range | 200 to 2000mG 20 to 200μT |
| Magnetic Field Resolution | 0.01μt, 0.1μT 0.1mG, 1mG |
| Electric Field Measuring Range | 50V/m to 2000V/m |
| Electric Field Resolution | 1V/m |
| Sensor Type | Triple axis (X, Y, Z) RF, EMF and ELF sensor |
| Environmental | |
| Storage Humidity Range | <70% |
| General | |
| Display | 2.4" TFT LCD display |
| Data Hold | Yes Features Min/Max Functions: Yes |
