REED Instruments

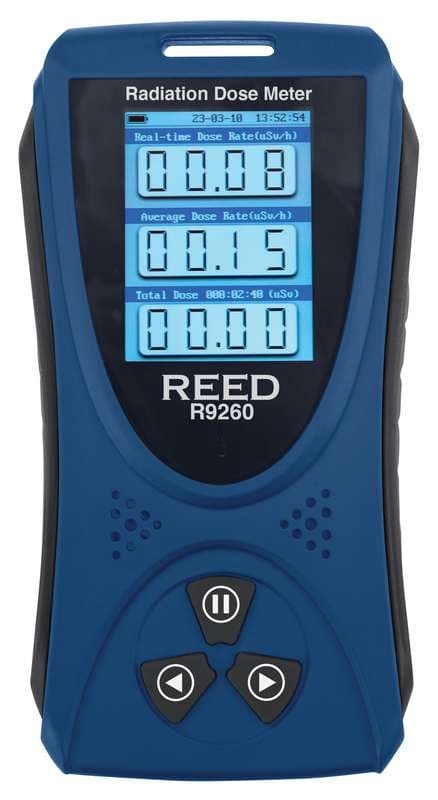

Reed R9260 Radiation Dosimeter
Model R9260
REED R9260 Radiation Dose Meter: detects Beta, Gamma, and X radiation Dimensions: 4.7 x 2.6 x 1.0"; range 0.05μSv/h to 50mSv/h. Measures dose rate in real-time and records total doses (120 x 65 x 25mm).
$195.00list price
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R9260 is a radiation dose meter from REED Instruments.
Features (REED datasheet)
- Detects Beta, Gamma, and X radiation.
- Measures dose rate in real-time and records total doses.
- Automatic selection of measurement range.
- User-adjustable alarms (audio/visual indicators).
- Internal memory stores up to 10 groups of data internally.
- Auto shut-off and low battery indicator.
- Includes USB cable, lanyard and carrying case.
Key specifications (REED datasheet)
Published specifications include Accumulated Radiation Accuracy: ≤25%; Radiation Dose Range: 0.05μSv/h to 50mSv/h; Energy Range: 80keV to 1.5MeV.
Specifications
| Accuracy | |
| Accumulated Radiation Accuracy | ≤25% |
| Ranges | |
| Sensor Type | G-M Counter Tube |
| Radiation Dose Range | 0.05μSv/h to 50mSv/h |
| Energy Range | 80keV to 1.5MeV |
| Response Time | ≤10 seconds |
| Power | |
| Power Supply | Built-in lithium battery (3.7V 1800mAh) |
| Battery life | Approx. 20 days (Fully Charged) |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Operating Humidity Range | 20 to 80% |
| Storage Temperature | 14 to 122°F (-10 to 50°C) Features |
| General | |
| Measured Rays | Beta, Gamma, X |
| Dose Value | 0.1μSv to 9999mSv |
| Source | Cs-137 |
| Display | 2" Color TFT LCD Display |
| Adjustable Alarms | Yes (Audible/Visual Indicators) |
| Natural Environment Reading | 0 to 0.2μSv/h |
| Datalogging Capabilities | Yes |
| Date Stamp | Yes |
| Internal Memory | Yes (up to 10 groups of data) |
| Product Certifications | CE, UKCA, RoHS |
