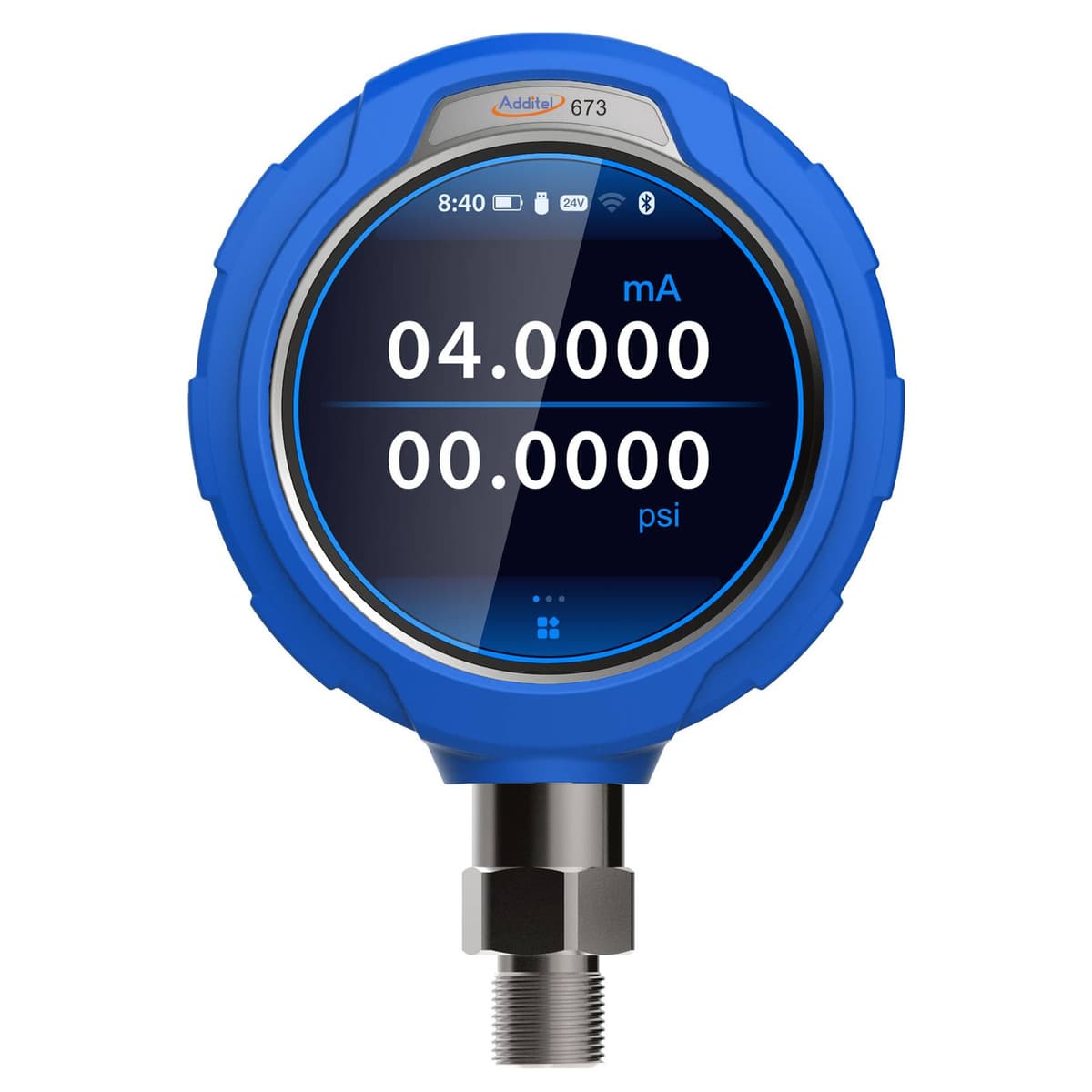

Additel 673 Advanced Digital Pressure Calibrator
Model ADT673
Color-touchscreen sibling of the 686, built as a calibrator: measure mA/V, 24 V loop power, optional full HART, IP67, built-in barometer, ranges to 60,000 psi, 0.02%/0.05% FS or 0.1% RD.
From $3,529.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Additel 673 is the color-touchscreen sibling of the 686 — same 3.4-inch capacitive display, replaceable tempered-glass protector, IP67 stainless housing, and built-in barometer — but it is a pressure calibrator, not a gauge. It measures mA and V, sources 24 V loop power, tests switches, and offers an optional full HART field communicator so you can power and talk to transmitters in the field. Ranges run from vacuum and low differential through 60,000 psi (4,200 bar). Accuracy options are 0.02% FS, 0.05% FS, or 0.1% of reading (0.02% FS from 0–20% of range, then 0.1% RD).
Every 673 includes a built-in barometer certified to 55 Pa, so one instrument reads gauge pressure, absolute pressure, or barometric/atmospheric pressure from a menu selection. Gauge, compound, absolute, differential, and dedicated barometric ranges are available. USB Type-C and Bluetooth are standard; Wi-Fi and RS-232 are optional. Onboard data logging stores 8 GB / 100 million+ records. The Additel Link mobile app monitors the calibrator from a phone or tablet.
Compared with the 686 digital pressure gauge, the 673 adds process I/O — mA/V measurement, 24 V loop, switch test, and optional HART. Compared with the 273Ex intrinsically safe handheld pressure calibrator, the 673 is the non-Ex color-touchscreen calibrator in this housing family (built-in sensor to 60,000 psi, no dual external-module bay). Choose 273Ex when you need an intrinsically safe handheld with external modules; choose 673 when you want the 686-class touchscreen as a field or lab pressure calibrator.
The rechargeable Li-ion battery typically runs about 16 hours. Every unit ships with an ISO 17025 accredited calibration certificate with data, a rubber boot, test leads, USB-C cable, and power adapter. Configure range, accuracy, port, units, Wi-Fi, RS-232, and HART from the ordering table — thousands of combinations.
Specifications
| Pressure | |
| Ranges | Vacuum / differential through 60,000 psi (4,200 bar) |
| Accuracy | 0.02% FS, 0.05% FS, or 0.1% RD (0.02% FS from 0–20% of range); high ranges also 0.1% / 0.2% FS |
| Gauge types | Gauge, compound, absolute, differential, and barometric |
| Built-in barometer | 55 Pa (every model reads gauge or absolute) |
| Dedicated barometric | 60–110 kPa; 55 Pa (BP) or 22 Pa (BPH) |
| Units | Pa, kPa, MPa, psi, bar, mbar, kgf/cm², inH2O, mmH2O, inHg, mmHg, plus 5 custom |
| Electrical | |
| Voltage DC | ±30.0000 V, ±(0.01% RD + 1.5 mV) |
| Current DC | ±30.0000 mA, ±(0.01% RD + 1.5 μA) |
| Loop power | 24 V ±1 V, max 30 mA |
| Switch test | OPEN/CLOSED; mechanical and NPN/PNP digital switches |
| HART | Optional full HART field communicator |
| Display | |
| Screen | 3.4-inch color capacitive touchscreen, replaceable tempered-glass protector |
| Resolution / rate | 4, 5, or 6 digits; 3 rdg/s default (10/s to 1/20 s) |
| Communication | |
| Standard | USB Type-C and Bluetooth (BLE) |
| Optional | Wi-Fi and RS-232 |
| App | Additel Link mobile app for remote monitoring |
| Data logging | |
| Onboard | 8 GB, 100 million+ records, 0.1–9999.9 s interval |
| Power | |
| Battery | Rechargeable Li-ion; typically 16 hours; ~4 hour recharge |
| Enclosure | |
| Ingress / durability | IP67; 304 SS case; 5 g vibration; 8 g / 11 ms shock |
| Size / weight | 4.65 × 1.77 × 6.89 in (118 × 42 × 175 mm); 1.58 lb (0.715 kg) |
| Environment | |
| Temperature | Compensated and operating 14 to 122°F (−10 to 50°C) |
| Compliance | |
| Marks | CE, UKCA |
| General | |
| Calibration | ISO 17025 accredited calibration with data included |
| Warranty | 1 year |
Videos
Additel 673 Advanced Digital Pressure Calibrators — Intro
Additel 673 Advanced Digital Pressure Calibrator Video
Additel 685/686/673 Gauges/Calibrators — Product Details & Differences
Additel 685/686/673 Screen Durability
Documents
Build your part number
Configure your ADT673
Pick your options and we'll build the exact part number - 2,841 configurations match so far.
Select 5 more options to get your part number and price.
Ordering information
5,832 ordering models available - showing 100, use the filter to narrow down.
| Model | Description | List Price | |
|---|---|---|---|
| ADT673-02-CP100-BAR-B | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -1 to 7 bar, compound pressure, 1/4BSP M | $4,341.00 | |
| ADT673-02-CP100-BAR-B2 | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -1 to 7 bar, compound pressure, 1/2BSP M | $4,341.00 | |
| ADT673-02-CP100-BAR-B2-232 | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -1 to 7 bar, compound pressure, 1/2BSP M, w/ RS232 | $4,483.00 | |
| ADT673-02-CP100-BAR-B2-232-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -1 to 7 bar, compound pressure, 1/2BSP M, w/ RS232 , w/ HART | $5,395.00 | |
| ADT673-02-CP100-BAR-B-232 | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -1 to 7 bar, compound pressure, 1/4BSP M, w/ RS232 | $4,483.00 | |
| ADT673-02-CP100-BAR-B-232-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -1 to 7 bar, compound pressure, 1/4BSP M, w/ RS232 , w/ HART | $5,395.00 | |
| ADT673-02-CP100-BAR-B2-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -1 to 7 bar, compound pressure, 1/2BSP M, w/ HART | $5,252.00 | |
| ADT673-02-CP100-BAR-B2-WIFI | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -1 to 7 bar, compound pressure, 1/2BSP M, w/ WiFi | $4,483.00 | |
| ADT673-02-CP100-BAR-B2-WIFI-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -1 to 7 bar, compound pressure, 1/2BSP M, w/ WiFi , w/ HART | $5,395.00 | |
| ADT673-02-CP100-BAR-B-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -1 to 7 bar, compound pressure, 1/4BSP M, w/ HART | $5,252.00 | |
| ADT673-02-CP100-BAR-B-WIFI | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -1 to 7 bar, compound pressure, 1/4BSP M, w/ WiFi | $4,483.00 | |
| ADT673-02-CP100-BAR-B-WIFI-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -1 to 7 bar, compound pressure, 1/4BSP M, w/ WiFi , w/ HART | $5,395.00 | |
| ADT673-02-CP100-BAR-M | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -1 to 7 bar, compound pressure, M20X1.5 M | $4,341.00 | |
| ADT673-02-CP100-BAR-M-232 | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -1 to 7 bar, compound pressure, M20X1.5 M, w/ RS232 | $4,483.00 | |
| ADT673-02-CP100-BAR-M-232-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -1 to 7 bar, compound pressure, M20X1.5 M, w/ RS232, w/ HART | $5,395.00 | |
| ADT673-02-CP100-BAR-M-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -1 to 7 bar, compound pressure, M20X1.5 M, w/ HART | $5,252.00 | |
| ADT673-02-CP100-BAR-M-WIFI | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -1 to 7 bar, compound pressure, M20X1.5 M, w/ WiFi | $4,483.00 | |
| ADT673-02-CP100-BAR-M-WIFI-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -1 to 7 bar, compound pressure, M20X1.5 M, w/ WiFi, w/ HART | $5,395.00 | |
| ADT673-02-CP100-BAR-N | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -1 to 7 bar, compound pressure, 1/4NPT M | $4,341.00 | |
| ADT673-02-CP100-BAR-N2 | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -1 to 7 bar, compound pressure, 1/2NPT M | $4,341.00 | |
| ADT673-02-CP100-BAR-N2-232 | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -1 to 7 bar, compound pressure, 1/2NPT M, w/ RS232 | $4,483.00 | |
| ADT673-02-CP100-BAR-N2-232-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -1 to 7 bar, compound pressure, 1/2NPT M, w/ RS232 , w/ HART | $5,395.00 | |
| ADT673-02-CP100-BAR-N-232 | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -1 to 7 bar, compound pressure, 1/4NPT M, w/ RS232 | $4,483.00 | |
| ADT673-02-CP100-BAR-N-232-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -1 to 7 bar, compound pressure, 1/4NPT M, w/ RS232 , w/ HART | $5,395.00 | |
| ADT673-02-CP100-BAR-N2-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -1 to 7 bar, compound pressure, 1/2NPT M, w/ HART | $5,252.00 | |
| ADT673-02-CP100-BAR-N2-WIFI | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -1 to 7 bar, compound pressure, 1/2NPT M, w/ WiFi | $4,483.00 | |
| ADT673-02-CP100-BAR-N2-WIFI-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -1 to 7 bar, compound pressure, 1/2NPT M, w/ WiFi , w/ HART | $5,395.00 | |
| ADT673-02-CP100-BAR-N-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -1 to 7 bar, compound pressure, 1/4NPT M, w/ HART | $5,252.00 | |
| ADT673-02-CP100-BAR-N-WIFI | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -1 to 7 bar, compound pressure, 1/4NPT M, w/ WiFi | $4,483.00 | |
| ADT673-02-CP100-BAR-N-WIFI-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -1 to 7 bar, compound pressure, 1/4NPT M, w/ WiFi , w/ HART | $5,395.00 | |
| ADT673-02-CP100-PSI-B | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -15 to 100 psi, compound pressure, 1/4BSP M | $4,341.00 | |
| ADT673-02-CP100-PSI-B2 | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -15 to 100 psi, compound pressure, 1/2BSP M | $4,341.00 | |
| ADT673-02-CP100-PSI-B2-232 | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -15 to 100 psi, compound pressure, 1/2BSP M, w/ RS232 | $4,483.00 | |
| ADT673-02-CP100-PSI-B2-232-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -15 to 100 psi, compound pressure, 1/2BSP M, w/ RS232 , w/ HART | $5,395.00 | |
| ADT673-02-CP100-PSI-B-232 | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -15 to 100 psi, compound pressure, 1/4BSP M, w/ RS232 | $4,483.00 | |
| ADT673-02-CP100-PSI-B-232-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -15 to 100 psi, compound pressure, 1/4BSP M, w/ RS232 , w/ HART | $5,395.00 | |
| ADT673-02-CP100-PSI-B2-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -15 to 100 psi, compound pressure, 1/2BSP M, w/ HART | $5,252.00 | |
| ADT673-02-CP100-PSI-B2-WIFI | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -15 to 100 psi, compound pressure, 1/2BSP M, w/ WiFi | $4,483.00 | |
| ADT673-02-CP100-PSI-B2-WIFI-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -15 to 100 psi, compound pressure, 1/2BSP M, w/ WiFi , w/ HART | $5,395.00 | |
| ADT673-02-CP100-PSI-B-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -15 to 100 psi, compound pressure, 1/4BSP M, w/ HART | $5,252.00 | |
| ADT673-02-CP100-PSI-B-WIFI | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -15 to 100 psi, compound pressure, 1/4BSP M, w/ WiFi | $4,483.00 | |
| ADT673-02-CP100-PSI-B-WIFI-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -15 to 100 psi, compound pressure, 1/4BSP M, w/ WiFi , w/ HART | $5,395.00 | |
| ADT673-02-CP100-PSI-M | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -15 to 100 psi, compound pressure, M20X1.5 M | $4,341.00 | |
| ADT673-02-CP100-PSI-M-232 | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -15 to 100 psi, compound pressure, M20X1.5 M, w/ RS232 | $4,483.00 | |
| ADT673-02-CP100-PSI-M-232-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -15 to 100 psi, compound pressure, M20X1.5 M, w/ RS232, w/ HART | $5,395.00 | |
| ADT673-02-CP100-PSI-M-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -15 to 100 psi, compound pressure, M20X1.5 M, w/ HART | $5,252.00 | |
| ADT673-02-CP100-PSI-M-WIFI | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -15 to 100 psi, compound pressure, M20X1.5 M, w/ WiFi | $4,483.00 | |
| ADT673-02-CP100-PSI-M-WIFI-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -15 to 100 psi, compound pressure, M20X1.5 M, w/ WiFi, w/ HART | $5,395.00 | |
| ADT673-02-CP100-PSI-N | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -15 to 100 psi, compound pressure, 1/4NPT M | $4,341.00 | |
| ADT673-02-CP100-PSI-N2 | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -15 to 100 psi, compound pressure, 1/2NPT M | $4,341.00 | |
| ADT673-02-CP100-PSI-N2-232 | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -15 to 100 psi, compound pressure, 1/2NPT M, w/ RS232 | $4,483.00 | |
| ADT673-02-CP100-PSI-N2-232-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -15 to 100 psi, compound pressure, 1/2NPT M, w/ RS232 , w/ HART | $5,395.00 | |
| ADT673-02-CP100-PSI-N-232 | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -15 to 100 psi, compound pressure, 1/4NPT M, w/ RS232 | $4,483.00 | |
| ADT673-02-CP100-PSI-N-232-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -15 to 100 psi, compound pressure, 1/4NPT M, w/ RS232 , w/ HART | $5,395.00 | |
| ADT673-02-CP100-PSI-N2-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -15 to 100 psi, compound pressure, 1/2NPT M, w/ HART | $5,252.00 | |
| ADT673-02-CP100-PSI-N2-WIFI | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -15 to 100 psi, compound pressure, 1/2NPT M, w/ WiFi | $4,483.00 | |
| ADT673-02-CP100-PSI-N2-WIFI-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -15 to 100 psi, compound pressure, 1/2NPT M, w/ WiFi , w/ HART | $5,395.00 | |
| ADT673-02-CP100-PSI-N-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -15 to 100 psi, compound pressure, 1/4NPT M, w/ HART | $5,252.00 | |
| ADT673-02-CP100-PSI-N-WIFI | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -15 to 100 psi, compound pressure, 1/4NPT M, w/ WiFi | $4,483.00 | |
| ADT673-02-CP100-PSI-N-WIFI-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -15 to 100 psi, compound pressure, 1/4NPT M, w/ WiFi , w/ HART | $5,395.00 | |
| ADT673-02-CP10-BAR-B | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -700 to 700 mbar, compound pressure, 1/4BSP M | $4,341.00 | |
| ADT673-02-CP10-BAR-B2 | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -700 to 700 mbar, compound pressure, 1/2BSP M | $4,341.00 | |
| ADT673-02-CP10-BAR-B2-232 | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -700 to 700 mbar, compound pressure, 1/2BSP M, w/ RS232 | $4,483.00 | |
| ADT673-02-CP10-BAR-B2-232-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -700 to 700 mbar, compound pressure, 1/2BSP M, w/ RS232 , w/ HART | $5,395.00 | |
| ADT673-02-CP10-BAR-B-232 | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -700 to 700 mbar, compound pressure, 1/4BSP M, w/ RS232 | $4,483.00 | |
| ADT673-02-CP10-BAR-B-232-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -700 to 700 mbar, compound pressure, 1/4BSP M, w/ RS232 , w/ HART | $5,395.00 | |
| ADT673-02-CP10-BAR-B2-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -700 to 700 mbar, compound pressure, 1/2BSP M, w/ HART | $5,252.00 | |
| ADT673-02-CP10-BAR-B2-WIFI | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -700 to 700 mbar, compound pressure, 1/2BSP M, w/ WiFi | $4,483.00 | |
| ADT673-02-CP10-BAR-B2-WIFI-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -700 to 700 mbar, compound pressure, 1/2BSP M, w/ WiFi , w/ HART | $5,395.00 | |
| ADT673-02-CP10-BAR-B-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -700 to 700 mbar, compound pressure, 1/4BSP M, w/ HART | $5,252.00 | |
| ADT673-02-CP10-BAR-B-WIFI | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -700 to 700 mbar, compound pressure, 1/4BSP M, w/ WiFi | $4,483.00 | |
| ADT673-02-CP10-BAR-B-WIFI-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -700 to 700 mbar, compound pressure, 1/4BSP M, w/ WiFi , w/ HART | $5,395.00 | |
| ADT673-02-CP10-BAR-M | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -700 to 700 mbar, compound pressure, M20X1.5 M | $4,341.00 | |
| ADT673-02-CP10-BAR-M-232 | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -700 to 700 mbar, compound pressure, M20X1.5 M, w/ RS232 | $4,483.00 | |
| ADT673-02-CP10-BAR-M-232-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -700 to 700 mbar, compound pressure, M20X1.5 M, w/ RS232, w/ HART | $5,395.00 | |
| ADT673-02-CP10-BAR-M-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -700 to 700 mbar, compound pressure, M20X1.5 M, w/ HART | $5,252.00 | |
| ADT673-02-CP10-BAR-M-WIFI | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -700 to 700 mbar, compound pressure, M20X1.5 M, w/ WiFi | $4,483.00 | |
| ADT673-02-CP10-BAR-M-WIFI-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -700 to 700 mbar, compound pressure, M20X1.5 M, w/ WiFi, w/ HART | $5,395.00 | |
| ADT673-02-CP10-BAR-N | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -700 to 700 mbar, compound pressure, 1/4NPT M | $4,341.00 | |
| ADT673-02-CP10-BAR-N2 | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -700 to 700 mbar, compound pressure, 1/2NPT M | $4,341.00 | |
| ADT673-02-CP10-BAR-N2-232 | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -700 to 700 mbar, compound pressure, 1/2NPT M, w/ RS232 | $4,483.00 | |
| ADT673-02-CP10-BAR-N2-232-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -700 to 700 mbar, compound pressure, 1/2NPT M, w/ RS232 , w/ HART | $5,395.00 | |
| ADT673-02-CP10-BAR-N-232 | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -700 to 700 mbar, compound pressure, 1/4NPT M, w/ RS232 | $4,483.00 | |
| ADT673-02-CP10-BAR-N-232-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -700 to 700 mbar, compound pressure, 1/4NPT M, w/ RS232 , w/ HART | $5,395.00 | |
| ADT673-02-CP10-BAR-N2-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -700 to 700 mbar, compound pressure, 1/2NPT M, w/ HART | $5,252.00 | |
| ADT673-02-CP10-BAR-N2-WIFI | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -700 to 700 mbar, compound pressure, 1/2NPT M, w/ WiFi | $4,483.00 | |
| ADT673-02-CP10-BAR-N2-WIFI-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -700 to 700 mbar, compound pressure, 1/2NPT M, w/ WiFi , w/ HART | $5,395.00 | |
| ADT673-02-CP10-BAR-N-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -700 to 700 mbar, compound pressure, 1/4NPT M, w/ HART | $5,252.00 | |
| ADT673-02-CP10-BAR-N-WIFI | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -700 to 700 mbar, compound pressure, 1/4NPT M, w/ WiFi | $4,483.00 | |
| ADT673-02-CP10-BAR-N-WIFI-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -700 to 700 mbar, compound pressure, 1/4NPT M, w/ WiFi , w/ HART | $5,395.00 | |
| ADT673-02-CP10-PSI-B | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -10 to 10 psi, compound pressure, 1/4BSP M | $4,341.00 | |
| ADT673-02-CP10-PSI-B2 | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -10 to 10 psi, compound pressure, 1/2BSP M | $4,341.00 | |
| ADT673-02-CP10-PSI-B2-232 | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -10 to 10 psi, compound pressure, 1/2BSP M, w/ RS232 | $4,483.00 | |
| ADT673-02-CP10-PSI-B2-232-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -10 to 10 psi, compound pressure, 1/2BSP M, w/ RS232 , w/ HART | $5,395.00 | |
| ADT673-02-CP10-PSI-B-232 | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -10 to 10 psi, compound pressure, 1/4BSP M, w/ RS232 | $4,483.00 | |
| ADT673-02-CP10-PSI-B-232-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -10 to 10 psi, compound pressure, 1/4BSP M, w/ RS232 , w/ HART | $5,395.00 | |
| ADT673-02-CP10-PSI-B2-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -10 to 10 psi, compound pressure, 1/2BSP M, w/ HART | $5,252.00 | |
| ADT673-02-CP10-PSI-B2-WIFI | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -10 to 10 psi, compound pressure, 1/2BSP M, w/ WiFi | $4,483.00 | |
| ADT673-02-CP10-PSI-B2-WIFI-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -10 to 10 psi, compound pressure, 1/2BSP M, w/ WiFi , w/ HART | $5,395.00 | |
| ADT673-02-CP10-PSI-B-HART | Advanced Digital Pressure Calibrator, ADT673, 0.02%FS, -10 to 10 psi, compound pressure, 1/4BSP M, w/ HART | $5,252.00 |
