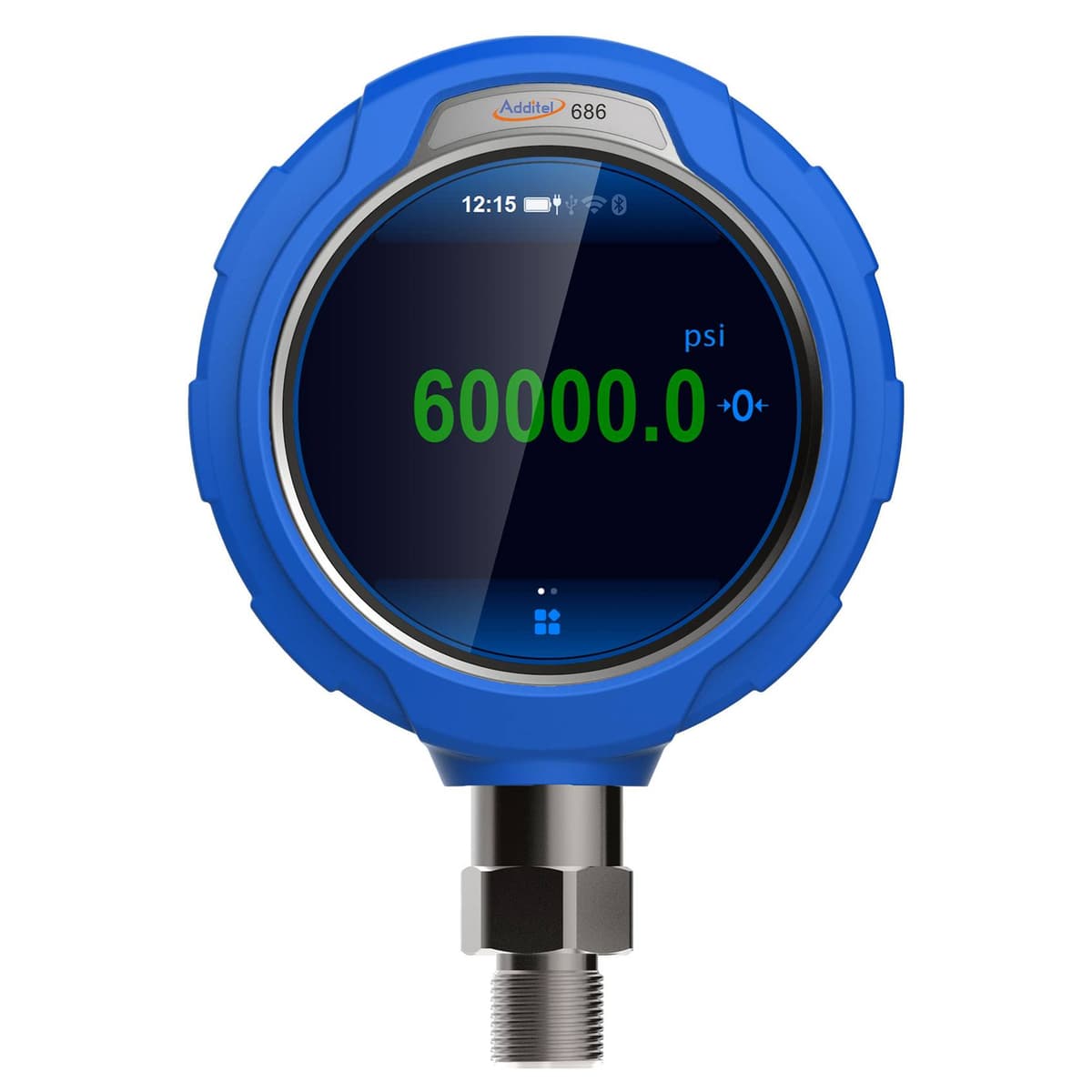

Additel 686 Advanced Digital Pressure Gauge
Model ADT686
Color-touchscreen digital pressure gauge with IP67 housing, built-in barometer (gauge, absolute, and barometric from one unit), ranges to 60,000 psi, and accuracy to 0.02% FS.
From $2,120.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Additel 686 is an advanced digital pressure test gauge for field and laboratory work. A 3.4-inch color capacitive touchscreen with a replaceable tempered-glass protector replaces the traditional button pad, and the IP67 stainless housing is built for wet, dusty, and drop-prone environments. Ranges run from vacuum and low differential through 60,000 psi (4,200 bar). Accuracy options are 0.02% FS, 0.05% FS, or 0.1% of reading (0.02% FS from 0–20% of range, then 0.1% RD).
Every 686 includes a built-in barometer certified to 55 Pa, so one instrument reads gauge pressure, absolute pressure, or barometric/atmospheric pressure from a menu selection. Gauge, compound, absolute, differential, and dedicated barometric ranges are available. USB Type-C and Bluetooth are standard; Wi-Fi and onboard data logging (8 GB, 100 million+ records) are optional. The Additel Link mobile app monitors the gauge from a phone or tablet.
The rechargeable Li-ion battery typically runs about 16 hours. Communication also includes optional RS-232. Every unit ships with an ISO 17025 accredited calibration certificate with data, a rubber boot, USB-C cable, and power adapter. Configure range, accuracy, port, units, Wi-Fi, and data logging from the ordering table — thousands of combinations.
Specifications
| Pressure | |
| Ranges | Vacuum / differential through 60,000 psi (4,200 bar) |
| Accuracy | 0.02% FS, 0.05% FS, or 0.1% RD (0.02% FS from 0–20% of range) |
| Gauge types | Gauge, compound, absolute, differential, and barometric |
| Built-in barometer | 55 Pa (every model reads gauge or absolute) |
| Dedicated barometric | 60–110 kPa; 55 Pa (BP) or 22 Pa (BPH) |
| Units | Pa, kPa, MPa, psi, bar, mbar, kgf/cm², inH2O, mmH2O, inHg, mmHg, plus 5 custom |
| Display | |
| Screen | 3.4-inch color capacitive touchscreen, replaceable tempered-glass protector |
| Resolution / rate | 4, 5, or 6 digits; 3 rdg/s default (10/s to 1/20 s) |
| Communication | |
| Standard | USB Type-C and Bluetooth (BLE) |
| Optional | Wi-Fi and RS-232 |
| App | Additel Link mobile app for remote monitoring |
| Data logging | |
| Optional DL | 8 GB onboard, 100 million+ records, 0.1–9999.9 s interval |
| Power | |
| Battery | Rechargeable Li-ion; typically 16 hours; ~4 hour recharge |
| Enclosure | |
| Ingress / durability | IP67; 304 SS case; 5 g vibration; 8 g / 11 ms shock |
| Size / weight | 4.65 × 1.77 × 7.01 in (118 × 42 × 178 mm); 1.58 lb (0.715 kg) |
| Environment | |
| Temperature | Compensated and operating 14 to 122°F (−10 to 50°C) |
| Compliance | |
| Marks | CE, UKCA |
| General | |
| Calibration | ISO 17025 accredited calibration with data included |
| Warranty | 1 year |
Videos
Additel 686 Advanced Digital Pressure Gauges — Intro
Additel 685/686/673 Gauges/Calibrators — Product Details & Differences
Additel 685/686/673 Screen Durability
Documents
Build your part number
Configure your ADT686
Pick your options and we'll build the exact part number - 2,856 configurations match so far.
Select 4 more options to get your part number and price.
Ordering information
5,892 ordering models available - showing 100, use the filter to narrow down.
| Model | Description | List Price | |
|---|---|---|---|
| ADT686-02-CP100-BAR-B | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -1 to 7 bar, compound pressure, 1/4BSP M | $3,201.00 | |
| ADT686-02-CP100-BAR-B2 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -1 to 7 bar, compound pressure, 1/2BSP M | $3,201.00 | |
| ADT686-02-CP100-BAR-B2-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -1 to 7 bar, compound pressure, 1/2BSP M, w/ RS232 | $3,334.00 | |
| ADT686-02-CP100-BAR-B-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -1 to 7 bar, compound pressure, 1/4BSP M, w/ RS232 | $3,334.00 | |
| ADT686-02-CP100-BAR-B2-DL | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -1 to 7 bar, compound pressure, 1/2BSP M, w/ Data Logging | $3,468.00 | |
| ADT686-02-CP100-BAR-B2-DL-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -1 to 7 bar, compound pressure, 1/2BSP M, w/ Data Logging and w/ RS232 | $3,601.00 | |
| ADT686-02-CP100-BAR-B2-DL-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -1 to 7 bar, compound pressure, 1/2BSP M, w/ Data Logging and w/ WiFi | $3,601.00 | |
| ADT686-02-CP100-BAR-B2-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -1 to 7 bar, compound pressure, 1/2BSP M, w/ WiFi | $3,334.00 | |
| ADT686-02-CP100-BAR-B-DL | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -1 to 7 bar, compound pressure, 1/4BSP M, w/ Data Logging | $3,468.00 | |
| ADT686-02-CP100-BAR-B-DL-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -1 to 7 bar, compound pressure, 1/4BSP M, w/ Data Logging and w/ RS232 | $3,601.00 | |
| ADT686-02-CP100-BAR-B-DL-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -1 to 7 bar, compound pressure, 1/4BSP M, w/ Data Logging and w/ WiFi | $3,601.00 | |
| ADT686-02-CP100-BAR-B-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -1 to 7 bar, compound pressure, 1/4BSP M, w/ WiFi | $3,334.00 | |
| ADT686-02-CP100-BAR-M | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -1 to 7 bar, compound pressure, M20X1.5 M | $3,201.00 | |
| ADT686-02-CP100-BAR-M-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -1 to 7 bar, compound pressure, M20X1.5 M, w/ RS232 | $3,334.00 | |
| ADT686-02-CP100-BAR-M-DL | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -1 to 7 bar, compound pressure, M20X1.5 M, w/ Data Logging | $3,468.00 | |
| ADT686-02-CP100-BAR-M-DL-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -1 to 7 bar, compound pressure, M20X1.5 M, w/ Data Logging and w/ RS232 | $3,601.00 | |
| ADT686-02-CP100-BAR-M-DL-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -1 to 7 bar, compound pressure, M20X1.5 M, w/ Data Logging and w/ WiFi | $3,601.00 | |
| ADT686-02-CP100-BAR-M-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -1 to 7 bar, compound pressure, M20X1.5 M, w/ WiFi | $3,334.00 | |
| ADT686-02-CP100-BAR-N | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -1 to 7 bar, compound pressure, 1/4NPT M | $3,201.00 | |
| ADT686-02-CP100-BAR-N2 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -1 to 7 bar, compound pressure, 1/2NPT M | $3,201.00 | |
| ADT686-02-CP100-BAR-N2-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -1 to 7 bar, compound pressure, 1/2NPT M, w/ RS232 | $3,334.00 | |
| ADT686-02-CP100-BAR-N-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -1 to 7 bar, compound pressure, 1/4NPT M, w/ RS232 | $3,334.00 | |
| ADT686-02-CP100-BAR-N2-DL | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -1 to 7 bar, compound pressure, 1/2NPT M, w/ Data Logging | $3,468.00 | |
| ADT686-02-CP100-BAR-N2-DL-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -1 to 7 bar, compound pressure, 1/2NPT M, w/ Data Logging and w/ RS232 | $3,601.00 | |
| ADT686-02-CP100-BAR-N2-DL-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -1 to 7 bar, compound pressure, 1/2NPT M, w/ Data Logging and w/ WiFi | $3,601.00 | |
| ADT686-02-CP100-BAR-N2-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -1 to 7 bar, compound pressure, 1/2NPT M, w/ WiFi | $3,334.00 | |
| ADT686-02-CP100-BAR-N-DL | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -1 to 7 bar, compound pressure, 1/4NPT M, w/ Data Logging | $3,468.00 | |
| ADT686-02-CP100-BAR-N-DL-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -1 to 7 bar, compound pressure, 1/4NPT M, w/ Data Logging and w/ RS232 | $3,601.00 | |
| ADT686-02-CP100-BAR-N-DL-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -1 to 7 bar, compound pressure, 1/4NPT M, w/ Data Logging and w/ WiFi | $3,601.00 | |
| ADT686-02-CP100-BAR-N-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -1 to 7 bar, compound pressure, 1/4NPT M, w/ WiFi | $3,334.00 | |
| ADT686-02-CP100-PSI-B | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -15 to 100 psi, compound pressure, 1/4BSP M | $3,201.00 | |
| ADT686-02-CP100-PSI-B2 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -15 to 100 psi, compound pressure, 1/2BSP M | $3,201.00 | |
| ADT686-02-CP100-PSI-B2-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -15 to 100 psi, compound pressure, 1/2BSP M, w/ RS232 | $3,334.00 | |
| ADT686-02-CP100-PSI-B-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -15 to 100 psi, compound pressure, 1/4BSP M, w/ RS232 | $3,334.00 | |
| ADT686-02-CP100-PSI-B2-DL | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -15 to 100 psi, compound pressure, 1/2BSP M, w/ Data Logging | $3,468.00 | |
| ADT686-02-CP100-PSI-B2-DL-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -15 to 100 psi, compound pressure, 1/2BSP M, w/ Data Logging and w/ RS232 | $3,601.00 | |
| ADT686-02-CP100-PSI-B2-DL-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -15 to 100 psi, compound pressure, 1/2BSP M, w/ Data Logging and w/ WiFi | $3,601.00 | |
| ADT686-02-CP100-PSI-B2-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -15 to 100 psi, compound pressure, 1/2BSP M, w/ WiFi | $3,334.00 | |
| ADT686-02-CP100-PSI-B-DL | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -15 to 100 psi, compound pressure, 1/4BSP M, w/ Data Logging | $3,468.00 | |
| ADT686-02-CP100-PSI-B-DL-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -15 to 100 psi, compound pressure, 1/4BSP M, w/ Data Logging and w/ RS232 | $3,601.00 | |
| ADT686-02-CP100-PSI-B-DL-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -15 to 100 psi, compound pressure, 1/4BSP M, w/ Data Logging and w/ WiFi | $3,601.00 | |
| ADT686-02-CP100-PSI-B-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -15 to 100 psi, compound pressure, 1/4BSP M, w/ WiFi | $3,334.00 | |
| ADT686-02-CP100-PSI-M | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -15 to 100 psi, compound pressure, M20X1.5 M | $3,201.00 | |
| ADT686-02-CP100-PSI-M-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -15 to 100 psi, compound pressure, M20X1.5 M, w/ RS232 | $3,334.00 | |
| ADT686-02-CP100-PSI-M-DL | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -15 to 100 psi, compound pressure, M20X1.5 M, w/ Data Logging | $3,468.00 | |
| ADT686-02-CP100-PSI-M-DL-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -15 to 100 psi, compound pressure, M20X1.5 M, w/ Data Logging and w/ RS232 | $3,601.00 | |
| ADT686-02-CP100-PSI-M-DL-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -15 to 100 psi, compound pressure, M20X1.5 M, w/ Data Logging and w/ WiFi | $3,601.00 | |
| ADT686-02-CP100-PSI-M-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -15 to 100 psi, compound pressure, M20X1.5 M, w/ WiFi | $3,334.00 | |
| ADT686-02-CP100-PSI-N | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -15 to 100 psi, compound pressure, 1/4NPT M | $3,201.00 | |
| ADT686-02-CP100-PSI-N2 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -15 to 100 psi, compound pressure, 1/2NPT M | $3,201.00 | |
| ADT686-02-CP100-PSI-N2-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -15 to 100 psi, compound pressure, 1/2NPT M, w/ RS232 | $3,334.00 | |
| ADT686-02-CP100-PSI-N-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -15 to 100 psi, compound pressure, 1/4NPT M, w/ RS232 | $3,334.00 | |
| ADT686-02-CP100-PSI-N2-DL | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -15 to 100 psi, compound pressure, 1/2NPT M, w/ Data Logging | $3,468.00 | |
| ADT686-02-CP100-PSI-N2-DL-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -15 to 100 psi, compound pressure, 1/2NPT M, w/ Data Logging and w/ RS232 | $3,601.00 | |
| ADT686-02-CP100-PSI-N2-DL-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -15 to 100 psi, compound pressure, 1/2NPT M, w/ Data Logging and w/ WiFi | $3,601.00 | |
| ADT686-02-CP100-PSI-N2-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -15 to 100 psi, compound pressure, 1/2NPT M, w/ WiFi | $3,334.00 | |
| ADT686-02-CP100-PSI-N-DL | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -15 to 100 psi, compound pressure, 1/4NPT M, w/ Data Logging | $3,468.00 | |
| ADT686-02-CP100-PSI-N-DL-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -15 to 100 psi, compound pressure, 1/4NPT M, w/ Data Logging and w/ RS232 | $3,601.00 | |
| ADT686-02-CP100-PSI-N-DL-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -15 to 100 psi, compound pressure, 1/4NPT M, w/ Data Logging and w/ WiFi | $3,601.00 | |
| ADT686-02-CP100-PSI-N-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -15 to 100 psi, compound pressure, 1/4NPT M, w/ WiFi | $3,334.00 | |
| ADT686-02-CP10-BAR-B | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -700 to 700 mbar, compound pressure, 1/4BSP M | $3,201.00 | |
| ADT686-02-CP10-BAR-B2 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -700 to 700 mbar, compound pressure, 1/2BSP M | $3,201.00 | |
| ADT686-02-CP10-BAR-B2-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -700 to 700 mbar, compound pressure, 1/2BSP M, w/ RS232 | $3,334.00 | |
| ADT686-02-CP10-BAR-B-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -700 to 700 mbar, compound pressure, 1/4BSP M, w/ RS232 | $3,334.00 | |
| ADT686-02-CP10-BAR-B2-DL | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -700 to 700 mbar, compound pressure, 1/2BSP M, w/ Data Logging | $3,468.00 | |
| ADT686-02-CP10-BAR-B2-DL-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -700 to 700 mbar, compound pressure, 1/2BSP M, w/ Data Logging and w/ RS232 | $3,601.00 | |
| ADT686-02-CP10-BAR-B2-DL-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -700 to 700 mbar, compound pressure, 1/2BSP M, w/ Data Logging and w/ WiFi | $3,601.00 | |
| ADT686-02-CP10-BAR-B2-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -700 to 700 mbar, compound pressure, 1/2BSP M, w/ WiFi | $3,334.00 | |
| ADT686-02-CP10-BAR-B-DL | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -700 to 700 mbar, compound pressure, 1/4BSP M, w/ Data Logging | $3,468.00 | |
| ADT686-02-CP10-BAR-B-DL-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -700 to 700 mbar, compound pressure, 1/4BSP M, w/ Data Logging and w/ RS232 | $3,601.00 | |
| ADT686-02-CP10-BAR-B-DL-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -700 to 700 mbar, compound pressure, 1/4BSP M, w/ Data Logging and w/ WiFi | $3,601.00 | |
| ADT686-02-CP10-BAR-B-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -700 to 700 mbar, compound pressure, 1/4BSP M, w/ WiFi | $3,334.00 | |
| ADT686-02-CP10-BAR-M | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -700 to 700 mbar, compound pressure, M20X1.5 M | $3,201.00 | |
| ADT686-02-CP10-BAR-M-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -700 to 700 mbar, compound pressure, M20X1.5 M, w/ RS232 | $3,334.00 | |
| ADT686-02-CP10-BAR-M-DL | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -700 to 700 mbar, compound pressure, M20X1.5 M, w/ Data Logging | $3,468.00 | |
| ADT686-02-CP10-BAR-M-DL-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -700 to 700 mbar, compound pressure, M20X1.5 M, w/ Data Logging and w/ RS232 | $3,601.00 | |
| ADT686-02-CP10-BAR-M-DL-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -700 to 700 mbar, compound pressure, M20X1.5 M, w/ Data Logging and w/ WiFi | $3,601.00 | |
| ADT686-02-CP10-BAR-M-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -700 to 700 mbar, compound pressure, M20X1.5 M, w/ WiFi | $3,334.00 | |
| ADT686-02-CP10-BAR-N | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -700 to 700 mbar, compound pressure, 1/4NPT M | $3,201.00 | |
| ADT686-02-CP10-BAR-N2 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -700 to 700 mbar, compound pressure, 1/2NPT M | $3,201.00 | |
| ADT686-02-CP10-BAR-N2-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -700 to 700 mbar, compound pressure, 1/2NPT M, w/ RS232 | $3,334.00 | |
| ADT686-02-CP10-BAR-N-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -700 to 700 mbar, compound pressure, 1/4NPT M, w/ RS232 | $3,334.00 | |
| ADT686-02-CP10-BAR-N2-DL | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -700 to 700 mbar, compound pressure, 1/2NPT M, w/ Data Logging | $3,468.00 | |
| ADT686-02-CP10-BAR-N2-DL-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -700 to 700 mbar, compound pressure, 1/2NPT M, w/ Data Logging and w/ RS232 | $3,601.00 | |
| ADT686-02-CP10-BAR-N2-DL-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -700 to 700 mbar, compound pressure, 1/2NPT M, w/ Data Logging and w/ WiFi | $3,601.00 | |
| ADT686-02-CP10-BAR-N2-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -700 to 700 mbar, compound pressure, 1/2NPT M, w/ WiFi | $3,334.00 | |
| ADT686-02-CP10-BAR-N-DL | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -700 to 700 mbar, compound pressure, 1/4NPT M, w/ Data Logging | $3,468.00 | |
| ADT686-02-CP10-BAR-N-DL-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -700 to 700 mbar, compound pressure, 1/4NPT M, w/ Data Logging and w/ RS232 | $3,601.00 | |
| ADT686-02-CP10-BAR-N-DL-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -700 to 700 mbar, compound pressure, 1/4NPT M, w/ Data Logging and w/ WiFi | $3,601.00 | |
| ADT686-02-CP10-BAR-N-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -700 to 700 mbar, compound pressure, 1/4NPT M, w/ WiFi | $3,334.00 | |
| ADT686-02-CP10-PSI-B | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -10 to 10 psi, compound pressure, 1/4BSP M | $3,201.00 | |
| ADT686-02-CP10-PSI-B2 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -10 to 10 psi, compound pressure, 1/2BSP M | $3,201.00 | |
| ADT686-02-CP10-PSI-B2-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -10 to 10 psi, compound pressure, 1/2BSP M, w/ RS232 | $3,334.00 | |
| ADT686-02-CP10-PSI-B-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -10 to 10 psi, compound pressure, 1/4BSP M, w/ RS232 | $3,334.00 | |
| ADT686-02-CP10-PSI-B2-DL | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -10 to 10 psi, compound pressure, 1/2BSP M, w/ Data Logging | $3,468.00 | |
| ADT686-02-CP10-PSI-B2-DL-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -10 to 10 psi, compound pressure, 1/2BSP M, w/ Data Logging and w/ RS232 | $3,601.00 | |
| ADT686-02-CP10-PSI-B2-DL-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -10 to 10 psi, compound pressure, 1/2BSP M, w/ Data Logging and w/ WiFi | $3,601.00 | |
| ADT686-02-CP10-PSI-B2-WIFI | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -10 to 10 psi, compound pressure, 1/2BSP M, w/ WiFi | $3,334.00 | |
| ADT686-02-CP10-PSI-B-DL | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -10 to 10 psi, compound pressure, 1/4BSP M, w/ Data Logging | $3,468.00 | |
| ADT686-02-CP10-PSI-B-DL-232 | Advanced Digital Pressure Test Gauge, ADT686, 0.02%FS, -10 to 10 psi, compound pressure, 1/4BSP M, w/ Data Logging and w/ RS232 | $3,601.00 |
