Additel 715 Precision Pressure Indicator
Model ADT715
Benchtop precision pressure indicator with a 10.1-inch touchscreen, up to five measurement channels, and optional barometer. Accuracies 0.02% FS, 0.01% FS, and 0.01% RD. Ranges 2 to 15,000 psi.
From $4,883.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview

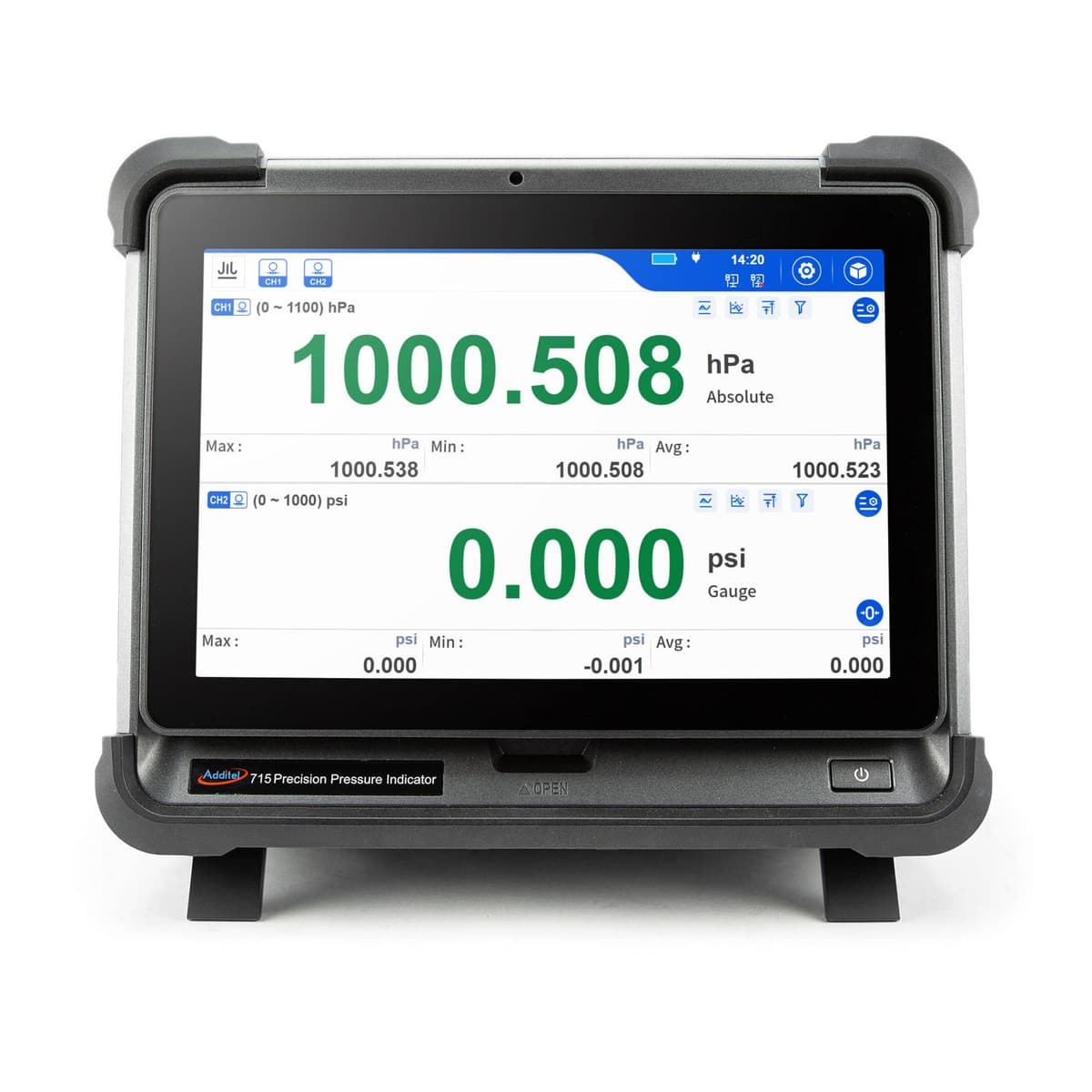

The Additel 715 is a high-performance benchtop precision pressure indicator — a 10.1-inch pressure monitor, not a handheld digital gauge. Official Additel copy and the Rev 20260204 datasheet call it a benchtop pressure monitor with one or two built-in gauge modules, an optional barometric module, and two external ADT161 ports, for up to five simultaneous pressure inputs. Rack-mount posts are on the bottom; an optional Li-ion battery (typically 8 hours) covers field use.
Unlike the Additel 680A / 680P, 681A, and 686 — those are handheld or panel digital pressure gauges on the gauges shelf — the 715 is a 10.48 lb benchtop indicator with a 10.1-inch capacitive touchscreen, Ethernet, USB, HDMI, and optional Wi-Fi. It does not generate or control pressure. Every priced configuration on this page is an ADT715: 0.02% FS (1,140), 0.01% FS (1,140), 0.01% RD (720), plus two barometer-only models (ADT715-BP and ADT715-BPH).
Built-in compound modules cover 2 psi through 15,000 psi (0.16 to 1,000 bar), one or two internal ranges, PSI or BAR labeling, and optional BP (±22 Pa) or BPH (±10 Pa) for gauge/absolute switching. External channels use ADT161 digital pressure modules. Display rate is 10 readings per second; resolution is 5, 6, or 7 digits. Power is a 28 V adaptor; ISO 17025 accredited calibration with data is included. Configure accuracy, range, units, and barometer from the ordering table — 3,002 combinations.
Specifications
| Pressure | |
| Product type | Benchtop precision pressure indicator / monitor (does not generate or control pressure) |
| Channels | Up to 5 simultaneous inputs: optional internal BP/BPH (CH1), 1 or 2 built-in gauge modules (CH2/CH3), plus 2 external ADT161 ports (CH4/CH5) |
| Ranges | Built-in compound modules from 2 psi to 15,000 psi (0.16 to 1,000 bar); barometer-only 60–110 kPa |
| Accuracy | 0.02% FS (02), 0.01% FS (01), or 0.01% RD / 0.005% FS whichever is greater (01RD); barometer ±22 Pa (BP) or ±10 Pa (BPH) |
| Annual stability | 0.005% FS |
| Gauge / absolute | Gauge/absolute switching via built-in or external barometric module |
| Media | ≤15 psi: dry, clean, non-corrosive gas compatible with 316SS; >15 psi: non-corrosive gas or liquid compatible with 316SS |
| Ports | 1/8 BSF F; ≤10k psi pre-installed 1/8 BSP M to 1/4 BSP M; >10k psi 1/8 BSP M to 1/4HP M |
| Display | |
| Screen | 10.1-inch TFT color capacitive touchscreen; self-adaptive multichannel display |
| Rate / resolution | 10 readings per second; 5, 6, or 7 digits (user selectable) |
| Units | 30+ pressure units plus 5 custom units and 2 height units (meters, feet) |
| Communication | |
| I/O | USB ×2, Ethernet ×2, HDMI ×1; optional Wi-Fi (9055-2 USB-to-Wi-Fi module) |
| Power | |
| Supply | 28 V DC adaptor; optional rechargeable Li-ion battery, typically 8 hours |
| Enclosure | |
| Size / weight | 11 × 9 × 6.26 in (281 × 230 × 159 mm); 10.48 lb (4.8 kg) with 3 built-in modules, no external module or battery |
| Installation | Desktop or rack (screw posts reserved on the bottom) |
| Environment | |
| Temperature | Working 0 to 40°C; specified accuracy 15 to 35°C; storage −20 to 70°C; 0–90% RH non-condensing; altitude < 2,000 m |
| General | |
| Warm-up | 20 minutes for optimal performance |
| Calibration | ISO 17025 accredited calibration with data included |
| Warranty | 1 year |
Videos
Additel 715 Precision Pressure Indicator Introduction
Documents
Build your part number
Configure your ADT715
Pick your options and we'll build the exact part number - 1,500 configurations match so far.
Select 3 more options to get your part number and price.
Ordering information
3,002 ordering models available - showing 100, use the filter to narrow down.
| Model | Description | List Price | |
|---|---|---|---|
| ADT715-01-CP100-BAR | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 7 bar/-1 to 3.5 bar). | $6,999.00 | |
| ADT715-01-CP100-BAR-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 7 bar/-1 to 3.5 bar) and barometer (22 Pa accuracy). | $8,484.00 | |
| ADT715-01-CP100-BAR-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 7 bar/-1 to 3.5 bar) and barometer (10 Pa accuracy). | $9,402.00 | |
| ADT715-01-CP100-CP10-BAR | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 7 bar/-1 to 3.5 bar) and (-0.7 to 0.7 bar/-0.35 to 0.35 bar). | $10,601.00 | |
| ADT715-01-CP100-CP10-BAR-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 7 bar/-1 to 3.5 bar) and (-0.7 to 0.7 bar/-0.35 to 0.35 bar) and barometer (22 Pa accuracy). | $12,085.00 | |
| ADT715-01-CP100-CP10-BAR-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 7 bar/-1 to 3.5 bar) and (-0.7 to 0.7 bar/-0.35 to 0.35 bar) and barometer (10 Pa accuracy). | $13,002.00 | |
| ADT715-01-CP100-CP10-PSI | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 100 psi/-15 to 50 psi) and (-10 to 10 psi/-5 to 5 psi). | $10,601.00 | |
| ADT715-01-CP100-CP10-PSI-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 100 psi/-15 to 50 psi) and (-10 to 10 psi/-5 to 5 psi) and barometer (22 Pa accuracy). | $12,085.00 | |
| ADT715-01-CP100-CP10-PSI-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 100 psi/-15 to 50 psi) and (-10 to 10 psi/-5 to 5 psi) and barometer (10 Pa accuracy). | $13,002.00 | |
| ADT715-01-CP100-CP15-BAR | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 7 bar/-1 to 3.5 bar) and (-1 to 1 bar/--0.7 to 0.7 bar). | $10,601.00 | |
| ADT715-01-CP100-CP15-BAR-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 7 bar/-1 to 3.5 bar) and (-1 to 1 bar/--0.7 to 0.7 bar) and barometer (22 Pa accuracy). | $12,085.00 | |
| ADT715-01-CP100-CP15-BAR-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 7 bar/-1 to 3.5 bar) and (-1 to 1 bar/--0.7 to 0.7 bar) and barometer (10 Pa accuracy). | $13,002.00 | |
| ADT715-01-CP100-CP15-PSI | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 100 psi/-15 to 50 psi) and (-15 to 15 psi/-10 to 10 psi). | $10,601.00 | |
| ADT715-01-CP100-CP15-PSI-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 100 psi/-15 to 50 psi) and (-15 to 15 psi/-10 to 10 psi) and barometer (22 Pa accuracy). | $12,085.00 | |
| ADT715-01-CP100-CP15-PSI-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 100 psi/-15 to 50 psi) and (-15 to 15 psi/-10 to 10 psi) and barometer (10 Pa accuracy). | $13,002.00 | |
| ADT715-01-CP100-CP30-BAR | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 7 bar/-1 to 3.5 bar) and (-1 to 2 bar/-1 to 1 bar). | $10,601.00 | |
| ADT715-01-CP100-CP30-BAR-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 7 bar/-1 to 3.5 bar) and (-1 to 2 bar/-1 to 1 bar) and barometer (22 Pa accuracy). | $12,085.00 | |
| ADT715-01-CP100-CP30-BAR-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 7 bar/-1 to 3.5 bar) and (-1 to 2 bar/-1 to 1 bar) and barometer (10 Pa accuracy). | $13,002.00 | |
| ADT715-01-CP100-CP30-PSI | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 100 psi/-15 to 50 psi) and (-15 to 30 psi/-15 to 15 psi). | $10,601.00 | |
| ADT715-01-CP100-CP30-PSI-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 100 psi/-15 to 50 psi) and (-15 to 30 psi/-15 to 15 psi) and barometer (22 Pa accuracy). | $12,085.00 | |
| ADT715-01-CP100-CP30-PSI-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 100 psi/-15 to 50 psi) and (-15 to 30 psi/-15 to 15 psi) and barometer (10 Pa accuracy). | $13,002.00 | |
| ADT715-01-CP100-CP35-BAR | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 7 bar/-1 to 3.5 bar) and (-1 to 2.5 bar/-1 to 1 bar). | $10,601.00 | |
| ADT715-01-CP100-CP35-BAR-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 7 bar/-1 to 3.5 bar) and (-1 to 2.5 bar/-1 to 1 bar) and barometer (22 Pa accuracy). | $12,085.00 | |
| ADT715-01-CP100-CP35-BAR-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 7 bar/-1 to 3.5 bar) and (-1 to 2.5 bar/-1 to 1 bar) and barometer (10 Pa accuracy). | $13,002.00 | |
| ADT715-01-CP100-CP35-PSI | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 100 psi/-15 to 50 psi) and (-15 to 35 psi/-15 to 15 psi). | $10,601.00 | |
| ADT715-01-CP100-CP35-PSI-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 100 psi/-15 to 50 psi) and (-15 to 35 psi/-15 to 15 psi) and barometer (22 Pa accuracy). | $12,085.00 | |
| ADT715-01-CP100-CP35-PSI-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 100 psi/-15 to 50 psi) and (-15 to 35 psi/-15 to 15 psi) and barometer (10 Pa accuracy). | $13,002.00 | |
| ADT715-01-CP100-CP50-BAR | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 7 bar/-1 to 3.5 bar) and (-1 to 3.5 bar/-1 to 2 bar). | $10,601.00 | |
| ADT715-01-CP100-CP50-BAR-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 7 bar/-1 to 3.5 bar) and (-1 to 3.5 bar/-1 to 2 bar) and barometer (22 Pa accuracy). | $12,085.00 | |
| ADT715-01-CP100-CP50-BAR-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 7 bar/-1 to 3.5 bar) and (-1 to 3.5 bar/-1 to 2 bar) and barometer (10 Pa accuracy). | $13,002.00 | |
| ADT715-01-CP100-CP50-PSI | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 100 psi/-15 to 50 psi) and (-15 to 50 psi/-15 to 30 psi). | $10,601.00 | |
| ADT715-01-CP100-CP50-PSI-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 100 psi/-15 to 50 psi) and (-15 to 50 psi/-15 to 30 psi) and barometer (22 Pa accuracy). | $12,085.00 | |
| ADT715-01-CP100-CP50-PSI-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 100 psi/-15 to 50 psi) and (-15 to 50 psi/-15 to 30 psi) and barometer (10 Pa accuracy). | $13,002.00 | |
| ADT715-01-CP100-CP5-BAR | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 7 bar/-1 to 3.5 bar) and (-0.35 to 0.35 bar/-0.16 to 0.16 bar). | $10,601.00 | |
| ADT715-01-CP100-CP5-BAR-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 7 bar/-1 to 3.5 bar) and (-0.35 to 0.35 bar/-0.16 to 0.16 bar) and barometer (22 Pa accuracy). | $12,085.00 | |
| ADT715-01-CP100-CP5-BAR-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 7 bar/-1 to 3.5 bar) and (-0.35 to 0.35 bar/-0.16 to 0.16 bar) and barometer (10 Pa accuracy). | $13,002.00 | |
| ADT715-01-CP100-CP5-PSI | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 100 psi/-15 to 50 psi) and (-5 to 5 psi/-2 to 2 psi). | $10,601.00 | |
| ADT715-01-CP100-CP5-PSI-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 100 psi/-15 to 50 psi) and (-5 to 5 psi/-2 to 2 psi) and barometer (22 Pa accuracy). | $12,085.00 | |
| ADT715-01-CP100-CP5-PSI-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 100 psi/-15 to 50 psi) and (-5 to 5 psi/-2 to 2 psi) and barometer (10 Pa accuracy). | $13,002.00 | |
| ADT715-01-CP100-PSI | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 100 psi/-15 to 50 psi). | $6,999.00 | |
| ADT715-01-CP100-PSI-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 100 psi/-15 to 50 psi) and barometer (22 Pa accuracy). | $8,484.00 | |
| ADT715-01-CP100-PSI-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 100 psi/-15 to 50 psi) and barometer (10 Pa accuracy). | $9,402.00 | |
| ADT715-01-CP10-BAR | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-0.7 to 0.7 bar/-0.35 to 0.35 bar). | $6,999.00 | |
| ADT715-01-CP10-BAR-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-0.7 to 0.7 bar/-0.35 to 0.35 bar) and barometer (22 Pa accuracy). | $8,484.00 | |
| ADT715-01-CP10-BAR-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-0.7 to 0.7 bar/-0.35 to 0.35 bar) and barometer (10 Pa accuracy). | $9,402.00 | |
| ADT715-01-CP10-CP5-BAR | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-0.7 to 0.7 bar/-0.35 to 0.35 bar) and (-0.35 to 0.35 bar/-0.16 to 0.16 bar). | $10,601.00 | |
| ADT715-01-CP10-CP5-BAR-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-0.7 to 0.7 bar/-0.35 to 0.35 bar) and (-0.35 to 0.35 bar/-0.16 to 0.16 bar) and barometer (22 Pa accuracy). | $12,085.00 | |
| ADT715-01-CP10-CP5-BAR-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-0.7 to 0.7 bar/-0.35 to 0.35 bar) and (-0.35 to 0.35 bar/-0.16 to 0.16 bar) and barometer (10 Pa accuracy). | $13,002.00 | |
| ADT715-01-CP10-CP5-PSI | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-10 to 10 psi/-5 to 5 psi) and (-5 to 5 psi/-2 to 2 psi). | $10,601.00 | |
| ADT715-01-CP10-CP5-PSI-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-10 to 10 psi/-5 to 5 psi) and (-5 to 5 psi/-2 to 2 psi) and barometer (22 Pa accuracy). | $12,085.00 | |
| ADT715-01-CP10-CP5-PSI-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-10 to 10 psi/-5 to 5 psi) and (-5 to 5 psi/-2 to 2 psi) and barometer (10 Pa accuracy). | $13,002.00 | |
| ADT715-01-CP10K-BAR | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 700 bar/-1 to 350 bar). | $7,251.00 | |
| ADT715-01-CP10K-BAR-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 700 bar/-1 to 350 bar) and barometer (22 Pa accuracy). | $8,735.00 | |
| ADT715-01-CP10K-BAR-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 700 bar/-1 to 350 bar) and barometer (10 Pa accuracy). | $9,654.00 | |
| ADT715-01-CP10K-CP100-BAR | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 700 bar/-1 to 350 bar) and (-1 to 7 bar/-1 to 3.5 bar). | $10,852.00 | |
| ADT715-01-CP10K-CP100-BAR-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 700 bar/-1 to 350 bar) and (-1 to 7 bar/-1 to 3.5 bar) and barometer (22 Pa accuracy). | $12,337.00 | |
| ADT715-01-CP10K-CP100-BAR-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 700 bar/-1 to 350 bar) and (-1 to 7 bar/-1 to 3.5 bar) and barometer (10 Pa accuracy). | $13,254.00 | |
| ADT715-01-CP10K-CP100-PSI | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 10000 psi/-15 to 5000 psi) and (-15 to 100 psi/-15 to 50 psi). | $10,852.00 | |
| ADT715-01-CP10K-CP100-PSI-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 10000 psi/-15 to 5000 psi) and (-15 to 100 psi/-15 to 50 psi) and barometer (22 Pa accuracy). | $12,337.00 | |
| ADT715-01-CP10K-CP100-PSI-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 10000 psi/-15 to 5000 psi) and (-15 to 100 psi/-15 to 50 psi) and barometer (10 Pa accuracy). | $13,254.00 | |
| ADT715-01-CP10K-CP10-BAR | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 700 bar/-1 to 350 bar) and (-0.7 to 0.7 bar/-0.35 to 0.35 bar). | $10,852.00 | |
| ADT715-01-CP10K-CP10-BAR-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 700 bar/-1 to 350 bar) and (-0.7 to 0.7 bar/-0.35 to 0.35 bar) and barometer (22 Pa accuracy). | $12,337.00 | |
| ADT715-01-CP10K-CP10-BAR-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 700 bar/-1 to 350 bar) and (-0.7 to 0.7 bar/-0.35 to 0.35 bar) and barometer (10 Pa accuracy). | $13,254.00 | |
| ADT715-01-CP10K-CP10-PSI | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 10000 psi/-15 to 5000 psi) and (-10 to 10 psi/-5 to 5 psi). | $10,852.00 | |
| ADT715-01-CP10K-CP10-PSI-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 10000 psi/-15 to 5000 psi) and (-10 to 10 psi/-5 to 5 psi) and barometer (22 Pa accuracy). | $12,337.00 | |
| ADT715-01-CP10K-CP10-PSI-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 10000 psi/-15 to 5000 psi) and (-10 to 10 psi/-5 to 5 psi) and barometer (10 Pa accuracy). | $13,254.00 | |
| ADT715-01-CP10K-CP150-BAR | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 700 bar/-1 to 350 bar) and (-1 to 10 bar/-1 to 4 bar). | $10,852.00 | |
| ADT715-01-CP10K-CP150-BAR-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 700 bar/-1 to 350 bar) and (-1 to 10 bar/-1 to 4 bar) and barometer (22 Pa accuracy). | $12,337.00 | |
| ADT715-01-CP10K-CP150-BAR-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 700 bar/-1 to 350 bar) and (-1 to 10 bar/-1 to 4 bar) and barometer (10 Pa accuracy). | $13,254.00 | |
| ADT715-01-CP10K-CP150-PSI | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 10000 psi/-15 to 5000 psi) and (-15 to 150 psi/-15 to 60 psi). | $10,852.00 | |
| ADT715-01-CP10K-CP150-PSI-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 10000 psi/-15 to 5000 psi) and (-15 to 150 psi/-15 to 60 psi) and barometer (22 Pa accuracy). | $12,337.00 | |
| ADT715-01-CP10K-CP150-PSI-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 10000 psi/-15 to 5000 psi) and (-15 to 150 psi/-15 to 60 psi) and barometer (10 Pa accuracy). | $13,254.00 | |
| ADT715-01-CP10K-CP15-BAR | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 700 bar/-1 to 350 bar) and (-1 to 1 bar/--0.7 to 0.7 bar). | $10,852.00 | |
| ADT715-01-CP10K-CP15-BAR-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 700 bar/-1 to 350 bar) and (-1 to 1 bar/--0.7 to 0.7 bar) and barometer (22 Pa accuracy). | $12,337.00 | |
| ADT715-01-CP10K-CP15-BAR-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 700 bar/-1 to 350 bar) and (-1 to 1 bar/--0.7 to 0.7 bar) and barometer (10 Pa accuracy). | $13,254.00 | |
| ADT715-01-CP10K-CP1.5K-BAR | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 700 bar/-1 to 350 bar) and (-1 to 100 bar/-1 to 70 bar). | $10,852.00 | |
| ADT715-01-CP10K-CP1.5K-BAR-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 700 bar/-1 to 350 bar) and (-1 to 100 bar/-1 to 70 bar) and barometer (22 Pa accuracy). | $12,337.00 | |
| ADT715-01-CP10K-CP1.5K-BAR-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 700 bar/-1 to 350 bar) and (-1 to 100 bar/-1 to 70 bar) and barometer (10 Pa accuracy). | $13,254.00 | |
| ADT715-01-CP10K-CP1.5K-PSI | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 10000 psi/-15 to 5000 psi) and (-15 to 1500 psi/-15 to 1000 psi). | $10,852.00 | |
| ADT715-01-CP10K-CP1.5K-PSI-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 10000 psi/-15 to 5000 psi) and (-15 to 1500 psi/-15 to 1000 psi) and barometer (22 Pa accuracy). | $12,337.00 | |
| ADT715-01-CP10K-CP1.5K-PSI-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 10000 psi/-15 to 5000 psi) and (-15 to 1500 psi/-15 to 1000 psi) and barometer (10 Pa accuracy). | $13,254.00 | |
| ADT715-01-CP10K-CP15-PSI | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 10000 psi/-15 to 5000 psi) and (-15 to 15 psi/-10 to 10 psi). | $10,852.00 | |
| ADT715-01-CP10K-CP15-PSI-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 10000 psi/-15 to 5000 psi) and (-15 to 15 psi/-10 to 10 psi) and barometer (22 Pa accuracy). | $12,337.00 | |
| ADT715-01-CP10K-CP15-PSI-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 10000 psi/-15 to 5000 psi) and (-15 to 15 psi/-10 to 10 psi) and barometer (10 Pa accuracy). | $13,254.00 | |
| ADT715-01-CP10K-CP1K-BAR | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 700 bar/-1 to 350 bar) and (-1 to 70 bar/-1 to 35 bar). | $10,852.00 | |
| ADT715-01-CP10K-CP1K-BAR-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 700 bar/-1 to 350 bar) and (-1 to 70 bar/-1 to 35 bar) and barometer (22 Pa accuracy). | $12,337.00 | |
| ADT715-01-CP10K-CP1K-BAR-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 700 bar/-1 to 350 bar) and (-1 to 70 bar/-1 to 35 bar) and barometer (10 Pa accuracy). | $13,254.00 | |
| ADT715-01-CP10K-CP1K-PSI | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 10000 psi/-15 to 5000 psi) and (-15 to 1000 psi/-15 to 500 psi). | $10,852.00 | |
| ADT715-01-CP10K-CP1K-PSI-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 10000 psi/-15 to 5000 psi) and (-15 to 1000 psi/-15 to 500 psi) and barometer (22 Pa accuracy). | $12,337.00 | |
| ADT715-01-CP10K-CP1K-PSI-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 10000 psi/-15 to 5000 psi) and (-15 to 1000 psi/-15 to 500 psi) and barometer (10 Pa accuracy). | $13,254.00 | |
| ADT715-01-CP10K-CP300-BAR | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 700 bar/-1 to 350 bar) and (-1 to 20 bar/-1 to 10 bar). | $10,852.00 | |
| ADT715-01-CP10K-CP300-BAR-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 700 bar/-1 to 350 bar) and (-1 to 20 bar/-1 to 10 bar) and barometer (22 Pa accuracy). | $12,337.00 | |
| ADT715-01-CP10K-CP300-BAR-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 700 bar/-1 to 350 bar) and (-1 to 20 bar/-1 to 10 bar) and barometer (10 Pa accuracy). | $13,254.00 | |
| ADT715-01-CP10K-CP300-PSI | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 10000 psi/-15 to 5000 psi) and (-15 to 300 psi/-15 to 150 psi). | $10,852.00 | |
| ADT715-01-CP10K-CP300-PSI-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 10000 psi/-15 to 5000 psi) and (-15 to 300 psi/-15 to 150 psi) and barometer (22 Pa accuracy). | $12,337.00 | |
| ADT715-01-CP10K-CP300-PSI-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 10000 psi/-15 to 5000 psi) and (-15 to 300 psi/-15 to 150 psi) and barometer (10 Pa accuracy). | $13,254.00 | |
| ADT715-01-CP10K-CP30-BAR | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 700 bar/-1 to 350 bar) and (-1 to 2 bar/-1 to 1 bar). | $10,852.00 | |
| ADT715-01-CP10K-CP30-BAR-BP | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 700 bar/-1 to 350 bar) and (-1 to 2 bar/-1 to 1 bar) and barometer (22 Pa accuracy). | $12,337.00 | |
| ADT715-01-CP10K-CP30-BAR-BPH | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensor (-1 to 700 bar/-1 to 350 bar) and (-1 to 2 bar/-1 to 1 bar) and barometer (10 Pa accuracy). | $13,254.00 | |
| ADT715-01-CP10K-CP30-PSI | Precision Pressure Indicator, 0.01% of span accuracy with dual-range internal sensors (-15 to 10000 psi/-15 to 5000 psi) and (-15 to 30 psi/-15 to 15 psi). | $10,852.00 |
