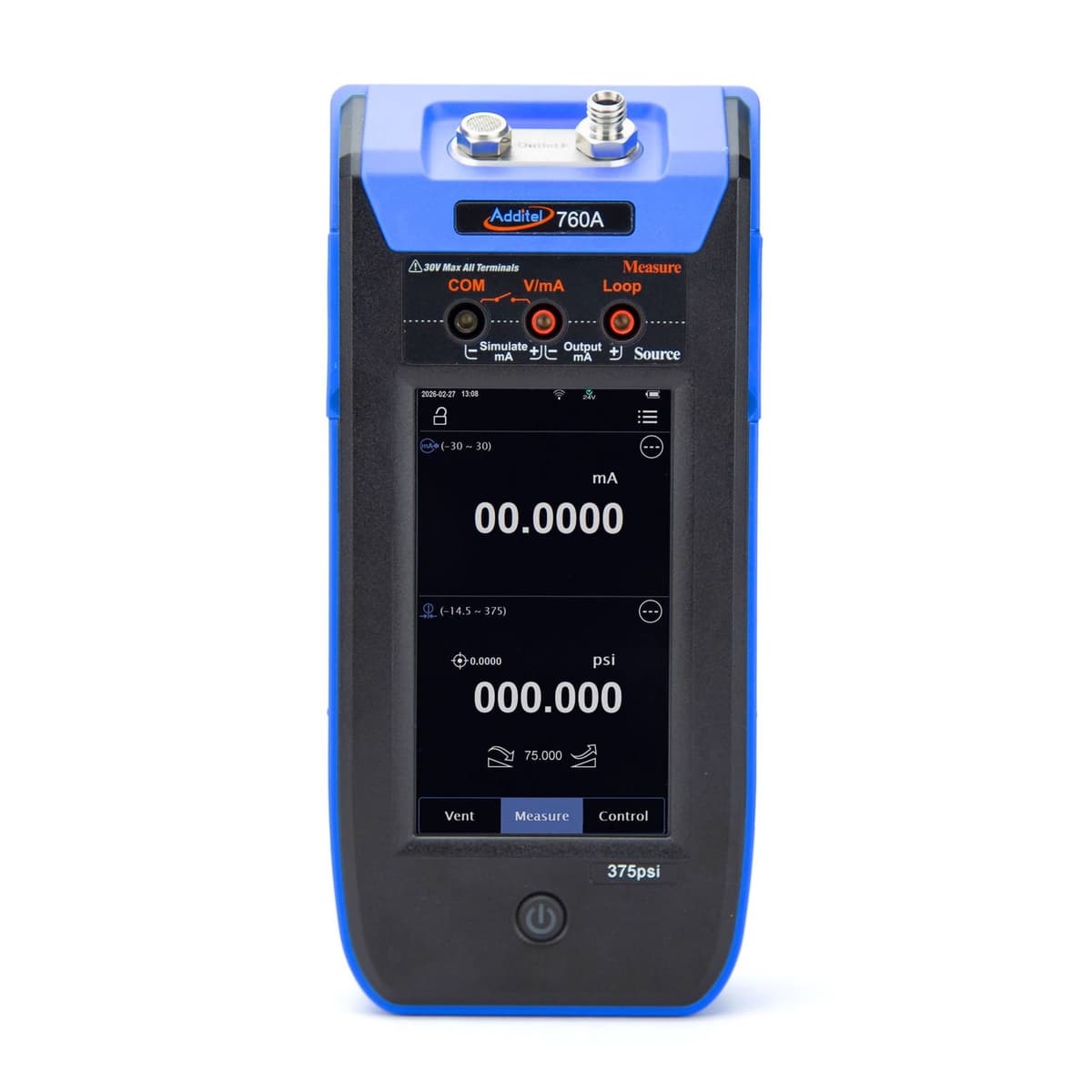

Additel 760 Automatic Handheld Pressure Calibrator
Model ADT760
Automatic handheld pressure calibrator with a built-in pump and controller — key in a setpoint and it generates pressure. Less than 4 lb, 4 channels, accuracy as low as 0.01% FS. Current family is ADT760A / ADT760S (LLP / D / MA, optional -DL HART and documenting). ISO 17025 cert included.
From $8,795.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Additel 760 is a fully automatic handheld pressure calibrator: a built-in electric pump, internal controller, precision sensor, and color touchscreen in a package that weighs less than 4 lb (1.8 kg). Key in the setpoint and the instrument generates and controls pressure — no separate hand pump. Each unit has four channels (three on ADT760S): one internal pressure channel for source and measure, two external pressure measurement channels, and one electrical measure/source channel on ADT760A. For other Additel pressure calibrators, see all pressure calibrators.
Additel has discontinued the original ADT760 in favor of the 760A series. This page is the priced 760A / 760S family (138 configurations). ADT760A upgrades the original 760 with generation to 375 psig (25 bar), a capacitive touchscreen, a full HART field communicator on -DL models, optional Contamination Prevention System, and the ADT760S non-PC / generator-only version. The original 760 generated to 300 psig.
Three base models cover the range: ADT760A/760S-LLP for low pressure to ±30 inH2O (±75 mbar) at 0.05% FS; ADT760A/760S-D for differential and gauge from −12.5 to 35 psi at 0.01% or 0.02% FS; and ADT760A/760S-MA from vacuum to 375 psig with a built-in barometer so you can switch gauge and absolute. Internal ADT155 modules are field-swappable for other ranges down to ±0.25 inH2O. Optional -DL (ADT760A only) adds HART communication, task documentation (up to 1,000 tasks), and data logging (up to 1,000,000 readings). ADT760S is the simplified generator without electrical channels or data logging.
Accuracy is as low as 0.01% FS with 0.005% FS control stability. Communications are Bluetooth, Wi-Fi, and USB. Every unit includes an ISO 17025 accredited calibration certificate with data.
Specifications
| Pressure | |
| Generation / control (MA) | Vacuum to 375 psig (25 bar.g) on ADT760A/760S-MA; original 760 was 300 psig |
| Generation / control (D) | −12.5 to 35 psi (−0.86 to 2.5 bar), differential and gauge |
| Generation / control (LLP) | ±30 inH2O (±75 mbar) max; modules down to ±0.25 inH2O |
| Accuracy | As low as 0.01% FS (D / MA); 0.05% FS (LLP). FS is the internal module span |
| Control stability | 0.005% FS of the internal module |
| Internal modules | Field-swappable ADT155 modules for expandable ranges |
| External modules | Two external pressure channels (measure only) |
| Barometer (MA) | 55 Pa; switch gauge / absolute |
| Channels | |
| ADT760A | 4 — internal pressure, 2 external pressure, 1 electrical |
| ADT760S | 3 — internal pressure + 2 external pressure (no electrical) |
| Electrical (ADT760A) | |
| mA / V measure | ±30 mA and ±30 V, 0.01% RD + 1.5 μA / 1.5 mV |
| Source / loop | 24 mA source and 24 V loop power |
| Documenting | |
| HART / tasks / logging | Optional on ADT760A -DL: full HART field communicator, up to 1,000 tasks, 1,000,000 readings |
| ADT760S | Non-PC generator — no electrical, HART, or data logging |
| General | |
| Pump | Built-in electric pump and controller; >500,000 cycle life |
| Weight / size | Less than 4 lb (1.8 kg); 9.3 × 4.3 × 2.8 in (235 × 110 × 70 mm) |
| Display | 4.95 in color capacitive touchscreen, 854 × 480 (760A series) |
| Battery | Rechargeable Li-ion; typically 10 hours, recharge < 4 hours |
| Communications | Bluetooth, Wi-Fi, and USB |
| Ingress | IP52 |
| Accessory | Optional Contamination Prevention System (ADT9231) on 760A |
| Calibration | ISO 17025 accredited calibration with data included |
| Warranty | 1 year |
Videos
Additel 760/760A/760S Handheld Automatic Pressure Calibrator
New Features of the Additel 760A / 760S
Additel 760/760A/760S — Tasks Video
Documents
Build your part number
Configure your ADT760
Pick your options and we'll build the exact part number - 138 configurations match so far.
Select 5 more options to get your part number and price.
Ordering information
138 ordering models available - showing 100, use the filter to narrow down.
| Model | Description | List Price | |
|---|---|---|---|
| ADT760A-D-01-CP10 | Automatic Handheld Pressure Calibrator, 0.01%FS accuracy, -10 to 10 psi (-0.7 to 0.7 bar), CP10 sensor included | $13,626.00 | |
| ADT760A-D-01-CP10-DL | Automatic Handheld Pressure Calibrator, 0.01%FS accuracy, -10 to 10 psi (-0.7 to 0.7 bar), CP10 sensor included, w/HART and data logging | $16,326.00 | |
| ADT760A-D-01-CP15 | Automatic Handheld Pressure Calibrator, 0.01%FS accuracy, -12.5 to 15 psi (-0.86 to 1 bar), CP15 sensor included | $13,626.00 | |
| ADT760A-D-01-CP15-DL | Automatic Handheld Pressure Calibrator, 0.01%FS accuracy, -12.5 to 15 psi (-0.86 to 1 bar), CP15 sensor included, w/HART and data logging | $16,326.00 | |
| ADT760A-D-01-CP30 | Automatic Handheld Pressure Calibrator, 0.01%FS accuracy, -12.5 to 30 psi (-0.86 to 2 bar), CP30 sensor included | $13,626.00 | |
| ADT760A-D-01-CP30-DL | Automatic Handheld Pressure Calibrator, 0.01%FS accuracy, -12.5 to 30 psi (-0.86 to 2 bar), CP30 sensor included, w/HART and data logging | $16,326.00 | |
| ADT760A-D-01-CP35 | Automatic Handheld Pressure Calibrator, 0.01%FS accuracy, -12.5 to 35 psi (-0.86 to 2.5 bar), CP35 sensor included | $13,626.00 | |
| ADT760A-D-01-CP35-DL | Automatic Handheld Pressure Calibrator, 0.01%FS accuracy, -12.5 to 35 psi (-0.86 to 2.5 bar), CP35 sensor included, w/HART and data logging | $16,326.00 | |
| ADT760A-D-02-CP10 | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, ±10 psi (±0.7 bar), CP10 sensor included | $11,332.00 | |
| ADT760A-D-02-CP10-DL | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, ±10 psi (±0.7 bar), CP10 sensor included, w/HART and data logging | $14,165.00 | |
| ADT760A-D-02-CP15 | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, ±15 psi (±1 bar), CP15 sensor included | $11,332.00 | |
| ADT760A-D-02-CP15-DL | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, ±15 psi (±1 bar), CP15 sensor included, w/HART and data logging | $14,165.00 | |
| ADT760A-D-02-CP30 | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, -12.5 to 30 psi (-0.86 to 2 bar), CP30 sensor included | $11,332.00 | |
| ADT760A-D-02-CP30-DL | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, -12.5 to 30 psi (-0.86 to 2 bar), CP30 sensor included, w/HART and data logging | $14,165.00 | |
| ADT760A-D-02-CP35 | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, -12.5 to 35 psi (-0.86 to 2.5 bar), CP35 sensor included | $11,332.00 | |
| ADT760A-D-02-CP35-DL | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, -12.5 to 35 psi (-0.86 to 2.5 bar), CP35 sensor included, w/HART and data logging | $14,165.00 | |
| ADT760A-D-02-DP100 | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, ±100 in (±250 mbar), DP100 sensor included | $11,976.00 | |
| ADT760A-D-02-DP100-DL | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, ±100 in (±250 mbar), DP100 sensor included, w/HART, data logging, and Task | $14,812.00 | |
| ADT760A-D-02-DP150 | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, ±150 in (±350 mbar), DP150 sensor included | $11,976.00 | |
| ADT760A-D-02-DP150-DL | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, ±150 in (±350 mbar), DP150 sensor included, w/HART, data logging, and Task | $14,812.00 | |
| ADT760A-D-02-DP1K | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, -350 to 1K inH2O (-860 to 2.5K mbar), DP1K sensor included | $11,976.00 | |
| ADT760A-D-02-DP1K-DL | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, -350 to 1K inH2O (-860 to 2.5K mbar), DP1K sensor included, w/HART and data logging | $14,812.00 | |
| ADT760A-D-02-DP300 | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, ±300 in (±700 mbar), DP300 sensor included | $11,976.00 | |
| ADT760A-D-02-DP300-DL | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, ±300 in (±700 mbar), DP300 sensor included, w/HART, data logging, and Task | $14,812.00 | |
| ADT760A-D-02-DP400 | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, -350 to 400 inH2O (-860 to 1K mbar), DP400 sensor included | $11,976.00 | |
| ADT760A-D-02-DP400-DL | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, -350 to 400 inH2O (-860 to 1K mbar), DP400 sensor included, w/HART and data logging | $14,812.00 | |
| ADT760A-D-02-DP800 | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, -350 to 800 inH2O (-860 to 2K mbar), DP800 sensor included | $11,976.00 | |
| ADT760A-D-02-DP800-DL | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, -350 to 800 inH2O (-860 to 2K mbar), DP800 sensor included, w/HART and data logging | $14,812.00 | |
| ADT760A-D-05-DP10 | Automatic Handheld Pressure Calibrator, 0.05%FS accuracy, ±10 in (±25 mbar), DP10 sensor included | $11,976.00 | |
| ADT760A-D-05-DP10-DL | Automatic Handheld Pressure Calibrator, 0.05%FS accuracy, ±10 in (±25 mbar), DP10 sensor included, w/HART, data logging, and Task | $14,812.00 | |
| ADT760A-D-05-DP20 | Automatic Handheld Pressure Calibrator, 0.05%FS accuracy, ±20 in (±50 mbar), DP20 sensor included | $11,976.00 | |
| ADT760A-D-05-DP20-DL | Automatic Handheld Pressure Calibrator, 0.05%FS accuracy, ±20 in (±50 mbar), DP20 sensor included, w/HART, data logging, and Task | $14,812.00 | |
| ADT760A-D-05-DP30 | Automatic Handheld Pressure Calibrator, 0.05%FS accuracy, ±30 in (±75 mbar), DP30 sensor included | $11,976.00 | |
| ADT760A-D-05-DP30-DL | Automatic Handheld Pressure Calibrator, 0.05%FS accuracy, ±30 in (±75 mbar), DP30 sensor included, w/HART, data logging, and Task | $14,812.00 | |
| ADT760A-D-05-DP50 | Automatic Handheld Pressure Calibrator, 0.05%FS accuracy, ±50 in (±125 mbar), DP50 sensor included | $11,976.00 | |
| ADT760A-D-05-DP50-DL | Automatic Handheld Pressure Calibrator, 0.05%FS accuracy, ±50 in (±125 mbar), DP50 sensor included, w/HART, data logging, and Task | $14,812.00 | |
| ADT760A-LLP-05-DP1 | Automatic Handheld Pressure Calibrator, 0.05%FS accuracy, ±1 inH2O (±2.5 mbar), DP1 sensor included | $13,875.00 | |
| ADT760A-LLP-05-DP10 | Automatic Handheld Pressure Calibrator, 0.05%FS accuracy, ±10 inH2O (±25 mbar), DP10 sensor included | $13,875.00 | |
| ADT760A-LLP-05-DP10-DL | Automatic Handheld Pressure Calibrator, 0.05%FS accuracy, ±10 inH2O (±25 mbar), DP10 sensor included, w/HART, data logging, and Task | $16,575.00 | |
| ADT760A-LLP-05-DP1-DL | Automatic Handheld Pressure Calibrator, 0.05%FS accuracy, ±1 inH2O (±2.5 mbar), DP1 sensor included, w/HART, data logging, and Task | $16,575.00 | |
| ADT760A-LLP-05-DP2 | Automatic Handheld Pressure Calibrator, 0.05%FS accuracy, ±2 inH2O (±5 mbar), DP2 sensor included | $13,875.00 | |
| ADT760A-LLP-05-DP20 | Automatic Handheld Pressure Calibrator, 0.05%FS accuracy, ±20 inH2O (±50 mbar), DP20 sensor included | $13,875.00 | |
| ADT760A-LLP-05-DP20-DL | Automatic Handheld Pressure Calibrator, 0.05%FS accuracy, ±20 inH2O (±50 mbar), DP20 sensor included, w/HART, data logging, and Task | $16,575.00 | |
| ADT760A-LLP-05-DP2-DL | Automatic Handheld Pressure Calibrator, 0.05%FS accuracy, ±2 inH2O (±5 mbar), DP2 sensor included, w/HART, data logging, and Task | $16,575.00 | |
| ADT760A-LLP-05-DP30 | Automatic Handheld Pressure Calibrator, 0.05%FS accuracy, ±30 inH2O (±75 mbar), DP30 sensor included | $13,875.00 | |
| ADT760A-LLP-05-DP30-DL | Automatic Handheld Pressure Calibrator, 0.05%FS accuracy, ±30 inH2O (±75 mbar), DP30 sensor included, w/HART, data logging, and Task | $16,575.00 | |
| ADT760A-LLP-05-DP5 | Automatic Handheld Pressure Calibrator, 0.05%FS accuracy, ±5 inH2O (±10 mbar), DP5 sensor included | $13,875.00 | |
| ADT760A-LLP-05-DP5-DL | Automatic Handheld Pressure Calibrator, 0.05%FS accuracy, ±5 inH2O (±10 mbar), DP5 sensor included, w/HART, data logging, and Task | $16,575.00 | |
| ADT760A-LLP-10-DP050 | Automatic Handheld Pressure Calibrator, 0.1%FS accuracy, ±0.5 inH2O (±1.25 mbar), DP050 sensor included | $13,875.00 | |
| ADT760A-LLP-10-DP050-DL | Automatic Handheld Pressure Calibrator, 0.1%FS accuracy, ±0.5 inH2O (±1.25 mbar), DP050 sensor included, w/HART, data logging, and Task | $16,575.00 | |
| ADT760A-LLP-20-DP025 | Automatic Handheld Pressure Calibrator, 0.2%FS accuracy, ±0.25 inH2O (±0.62 mbar), DP025 sensor included | $13,875.00 | |
| ADT760A-LLP-20-DP025-DL | Automatic Handheld Pressure Calibrator, 0.2%FS accuracy, ±0.25 inH2O (±0.62 mbar), DP025 sensor included, w/HART, data logging, and Task | $16,575.00 | |
| ADT760A-MA-01-CP10 | Automatic Handheld Pressure Calibrator, 0.01%FS accuracy, -10 to 10 psi (-0.7 to 0.7 bar), CP10 sensor included | $14,711.00 | |
| ADT760A-MA-01-CP100 | Automatic Handheld Pressure Calibrator, 0.01%FS accuracy, -12.5 to 100 psi (-0.86 to 7 bar), CP100 sensor included | $14,711.00 | |
| ADT760A-MA-01-CP100-DL | Automatic Handheld Pressure Calibrator, 0.01%FS accuracy, -12.5 to 100 psi (-0.86 to 7 bar), CP100 sensor included, w/HART and data logging | $17,463.00 | |
| ADT760A-MA-01-CP10-DL | Automatic Handheld Pressure Calibrator, 0.01%FS accuracy, -10 to 10 psi (-0.7 to 0.7 bar), CP10 sensor included, w/HART and data logging | $17,463.00 | |
| ADT760A-MA-01-CP15 | Automatic Handheld Pressure Calibrator, 0.01%FS accuracy, -12.5 to 15 psi (-0.86 to 1 bar), CP15 sensor included | $14,711.00 | |
| ADT760A-MA-01-CP150 | Automatic Handheld Pressure Calibrator, 0.01%FS accuracy, -12.5 to 150 psi (-0.86 to 10 bar), CP150 sensor included | $14,711.00 | |
| ADT760A-MA-01-CP150-DL | Automatic Handheld Pressure Calibrator, 0.01%FS accuracy, -12.5 to 150 psi (-0.86 to 10 bar), CP150 sensor included, w/HART and data logging | $17,463.00 | |
| ADT760A-MA-01-CP15-DL | Automatic Handheld Pressure Calibrator, 0.01%FS accuracy, -12.5to 15 psi (-0.86 to 1 bar), CP15 sensor included, w/HART and data logging | $17,463.00 | |
| ADT760A-MA-01-CP200 | Automatic Handheld Pressure Calibrator, 0.01%FS accuracy, -12.5 to 200 psi (-0.86 to 14 bar), CP200 sensor included | $14,711.00 | |
| ADT760A-MA-01-CP200-DL | Automatic Handheld Pressure Calibrator, 0.01%FS accuracy, -12.5 to 200 psi (-0.86 to 14 bar), CP200 sensor included, w/HART and data logging | $17,463.00 | |
| ADT760A-MA-01-CP30 | Automatic Handheld Pressure Calibrator, 0.01%FS accuracy, -12.5 to 30 psi (-0.86 to 2 bar), CP30 sensor included | $14,711.00 | |
| ADT760A-MA-01-CP300 | Automatic Handheld Pressure Calibrator, 0.01%FS accuracy, -12.5 to 300 psi (-0.86 to 20 bar), CP300 sensor included | $14,711.00 | |
| ADT760A-MA-01-CP300-DL | Automatic Handheld Pressure Calibrator, 0.01%FS accuracy, -12.5 to 300 psi (-0.86 to 20 bar), CP300 sensor included, w/HART and data logging | $17,463.00 | |
| ADT760A-MA-01-CP30-DL | Automatic Handheld Pressure Calibrator, 0.01%FS accuracy, -12.5 to 30 psi (-0.86 to 2 bar), CP30 sensor included, w/HART and data logging | $17,463.00 | |
| ADT760A-MA-01-CP35 | Automatic Handheld Pressure Calibrator, 0.01%FS accuracy, -12.5 to 35 psi (-0.86 to 2.5 bar), CP35 sensor included | $14,711.00 | |
| ADT760A-MA-01-CP35-DL | Automatic Handheld Pressure Calibrator, 0.01%FS accuracy, -12.5 to 35 psi (-0.86 to 2.5 bar), CP35 sensor included, w/HART and data logging | $17,463.00 | |
| ADT760A-MA-01-CP375 | Automatic Handheld Pressure Calibrator, 0.01%FS accuracy, -12.5 to 375 psi (-0.86 to 25 bar), CP375 sensor included | $14,711.00 | |
| ADT760A-MA-01-CP375-DL | Automatic Handheld Pressure Calibrator, 0.01%FS accuracy, -12.5 to 375 psi (-0.86 to 25 bar), CP375 sensor included, w/HART and data logging | $17,463.00 | |
| ADT760A-MA-01-CP50 | Automatic Handheld Pressure Calibrator, 0.01%FS accuracy, -12.5 to 50 psi (-0.86 to 3.5 bar), CP50 sensor included | $14,711.00 | |
| ADT760A-MA-01-CP50-DL | Automatic Handheld Pressure Calibrator, 0.01%FS accuracy, -12.5 to 50 psi (-0.86 to 3.5 bar), CP50 sensor included, w/HART and data logging | $17,463.00 | |
| ADT760A-MA-02-CP10 | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, ±10 psi (±0.7 bar), CP10 sensor included | $13,202.00 | |
| ADT760A-MA-02-CP100 | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, -12.5 to 100 psi (-0.86 to 7 bar), CP100 sensor included | $13,202.00 | |
| ADT760A-MA-02-CP100-DL | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, -12.5 to 100 psi (-0.86 to 7 bar), CP100 sensor included, w/HART and data logging | $16,090.00 | |
| ADT760A-MA-02-CP10-DL | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, ±10 psi (±0.7 bar), CP10 sensor included, w/HART and data logging | $16,090.00 | |
| ADT760A-MA-02-CP15 | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, ±15 psi (±1 bar), CP15 sensor included | $13,202.00 | |
| ADT760A-MA-02-CP150 | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, -12.5 to 150 psi (-0.86 to 10 bar), CP150 sensor included | $13,202.00 | |
| ADT760A-MA-02-CP150-DL | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, -12.5 to 150 psi (-0.86 to 10 bar), CP150 sensor included, w/HART and data logging | $16,090.00 | |
| ADT760A-MA-02-CP15-DL | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, ±15 psi (±1 bar), CP15 sensor included, w/HART and data logging | $16,090.00 | |
| ADT760A-MA-02-CP200 | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, -12.5 to 200 psi (-0.86 to 14 bar), CP200 sensor included | $13,202.00 | |
| ADT760A-MA-02-CP200-DL | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, -12.5 to 200 psi (-0.86 to 14 bar), CP200 sensor included, w/HART and data logging | $16,090.00 | |
| ADT760A-MA-02-CP30 | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, -12.5 to 30 psi (-0.86 to 2 bar), CP30 sensor included | $13,202.00 | |
| ADT760A-MA-02-CP300 | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, -12.5 to 300 psi (-0.86 to 20 bar), CP300 sensor included | $13,202.00 | |
| ADT760A-MA-02-CP300-DL | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, -12.5 to 300 psi (-0.86 to 20 bar), CP300 sensor included, w/HART and data logging | $16,090.00 | |
| ADT760A-MA-02-CP30-DL | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, -12.5 to 30 psi (-0.86 to 2 bar), CP30 sensor included, w/HART and data logging | $16,090.00 | |
| ADT760A-MA-02-CP35 | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, -12.5 to 35 psi (-0.86 to 2.5 bar), CP35 sensor included | $13,202.00 | |
| ADT760A-MA-02-CP35-DL | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, -12.5 to 35 psi (-0.86 to 2.5 bar), CP35 sensor included, w/HART and data logging | $16,090.00 | |
| ADT760A-MA-02-CP375 | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, -12.5 to 375 psi (-0.86 to 25 bar), CP375 sensor included | $13,202.00 | |
| ADT760A-MA-02-CP375-DL | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, -12.5 to 375 psi (-0.86 to 25 bar), CP375 sensor included, w/HART and data logging | $16,090.00 | |
| ADT760A-MA-02-CP50 | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, -12.5 to 50 psi (-0.86 to 3.5 bar), CP50 sensor included | $13,202.00 | |
| ADT760A-MA-02-CP50-DL | Automatic Handheld Pressure Calibrator, 0.02%FS accuracy, -12.5 to 50 psi (-0.86 to 3.5 bar), CP50 sensor included, w/HART and data logging | $16,090.00 | |
| ADT760S-D-01-CP10 | Automatic Handheld Pressure Generator, 0.01%FS accuracy, -10 to 10 psi (-0.7 to 0.7 bar), CP10 sensor included | $10,995.00 | |
| ADT760S-D-01-CP15 | Automatic Handheld Pressure Generator, 0.01%FS accuracy, -12.5 to 15 psi (-0.86 to 1 bar), CP15 sensor included | $10,995.00 | |
| ADT760S-D-01-CP30 | Automatic Handheld Pressure Generator, 0.01%FS accuracy, -12.5 to 30 psi (-0.86 to 2 bar), CP30 sensor included | $10,995.00 | |
| ADT760S-D-01-CP35 | Automatic Handheld Pressure Generator, 0.01%FS accuracy, -12.5 to 35 psi (-0.86 to 2.5 bar), CP35 sensor included | $10,995.00 | |
| ADT760S-D-02-CP10 | Automatic Handheld Pressure Generator, 0.02%FS accuracy, ±10 psi (±0.7 bar), CP10 sensor included | $8,795.00 | |
| ADT760S-D-02-CP15 | Automatic Handheld Pressure Generator, 0.02%FS accuracy, ±15 psi (±1 bar), CP15 sensor included | $8,795.00 | |
| ADT760S-D-02-CP30 | Automatic Handheld Pressure Generator, 0.02%FS accuracy, -12.5 to 30 psi (-0.86 to 2 bar), CP30 sensor included | $8,795.00 | |
| ADT760S-D-02-CP35 | Automatic Handheld Pressure Generator, 0.02%FS accuracy, -12.5 to 35 psi (-0.86 to 2.5 bar), CP35 sensor included | $8,795.00 |
