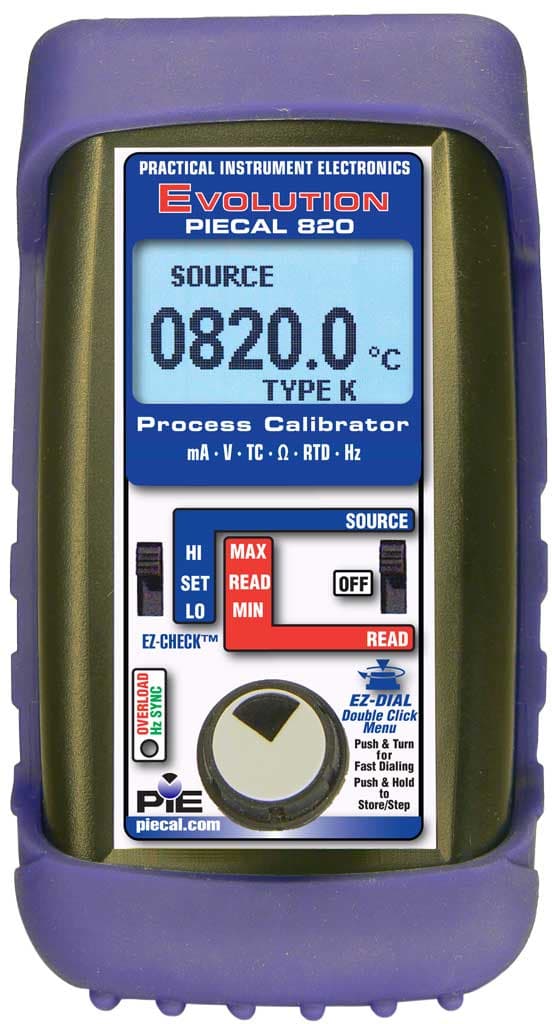

PIE 820 Multifunction Process Calibrator

Name: PIE 820 Multifunction Process Calibrator
Brand: PIE
SKU: PIE-820
Price: 2913.00 USD
Availability: InStock

Model PIE-820

Multifunction process calibrator for mA, V, frequency, thermocouples, RTDs, and continuity—source 0–24 mA and 0–10.25 V with ±0.03% FS class accuracy.

From $2,913.00list price

Pick your exact configuration in the ordering table below to add it to your cart.

Same-day response on quotes. ISO/IEC 17025 accredited calibration available.

Overview

The PIECAL 820 is a handheld multifunction process calibrator covering milliamp, voltage, frequency, thermocouples, RTDs, and continuity. Source 0 to 24.00 mA, 0 to 10.25 V, and −10.00 to 80.00 mV DC; read to 24.00 mA, 10.25 V, 60.0 V, and −10.00 to 80.00 mV. Frequency source and read to 2000 CPM and related Hz ranges per the datasheet.

Thermocouple types include J, K, T, E, R, S, B, N, G, C, D and more process curves; RTDs include Pt 100 (3850, 3902, 3916, 3926) and Pt 1000 (3850). Thermocouple accuracy is ±(0.03% of full scale) with ±0.1 °C cold-junction compensation; milliamp and many electrical functions are specified at ≤ ±(0.03% of full scale). EZ-CHECK and automatic stepping/ramping speed field work.

Includes four AA batteries, Certificate of Calibration, dark blue rubber boot, hands-free carrying case, and multifunction wire kit. Made in the USA with NIST-traceable calibration.

Features (PIE)

PIE lists the 820 as six functions in one calibrator: mA, V, TC, ohms, RTD and Hz.

Milliamps and volts: source and read milliamps, DC volts (read to 60 V) and millivolts. Simulate 2-wire transmitters, power loops from the built-in 24 V supply, and use the built-in 250 Ω resistor for HART hookups.
Temperature: thermocouple types J, K, T, E, R, S, B, N, G, C, D, L (J DIN), U (T DIN) and P (Platinel II); RTD types Pt 100 Ω (3850, 3902, 3916, 3926) and Pt 1000 Ω (3850), Cu 10 and 50 Ω, Ni 110 and 120 Ω.
Frequency: source and read to 2000 CPM, 999.99 Hz, 9999.9 Hz and 20.000 kHz, for flow and vibration systems.
Continuity: built-in beeper checks wiring.
Stepping and ramping: store three outputs on the EZ-CHECK switch; step in 2, 3, 5 or 11 steps (100%, 50%, 25% or 10% of span) or ramp between zero and span.
Operation: EZ-DIAL double-click menus match PIE's single-function Evolution calibrators; display icons show where to plug in the leads; backlit display.

Included (PIE)

Rubber boot, deluxe hands-free carrying case and mV/RTD test leads (020-0820).

Spare leads and cases are on our PIE calibrator accessories page. PIE publishes a comparison of the PIE 820 with the Altek 820. For loop diagnostics, pH and pressure, see the PIE 820Elite.

Documentation (PIE)

PIE publishes a datasheet, operating instructions and field calibration procedures for the 820.

Browse all process calibrators.

Specifications

Accuracy
mA source/read	≤ ± (0.03% of Full Scale)
V DC source (−10 to 80 mV / 0 to 10.25 V)	≤ ± (0.03% of Full Scale); V adds +0.005 V on 10.25 V range
Thermocouple	±(0.03% of Full Scale); CJ ±0.1 °C
RTD/Ω	±(0.03% of Full Scale + 0.075 Ohms)
Frequency	±(0.03% of Full Scale)
Ranges
mA	0.00 to 24.00 mA (−25.0 to 125.0% of 4–20 mA)
Voltage source	−10.00 to 80.00 mV; 0.00 to 10.25 V
Voltage read	to 10.25 V, 60.0 V, and −10.00 to 80.00 mV
T/C & RTD	Multiple T/C types; Pt 100 & Pt 1000 curves; continuity check
Source/Read
Extras	2-wire TX simulate; EZ-CHECK; auto step/ramp
Power
Batteries / life	Four AA; read ≥20 h; source mA ≥14 h @ 12 mA into 250 Ω
Environmental
Operating temperature	−20 to 60 °C (−5 to 140 °F)
General
Included	AA batteries, Certificate of Calibration, rubber boot, carrying case, multifunction wire kit
Origin / cal	Made in USA; NIST-traceable Certificate of Calibration
