PIE 820PM Panel Mount Multifunction Calibrator
Panel-mount multifunction calibrator with the same mA, V, T/C, RTD, ohms, and frequency functions as the handheld PIE 820—for calibration benches and instrument panels.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview

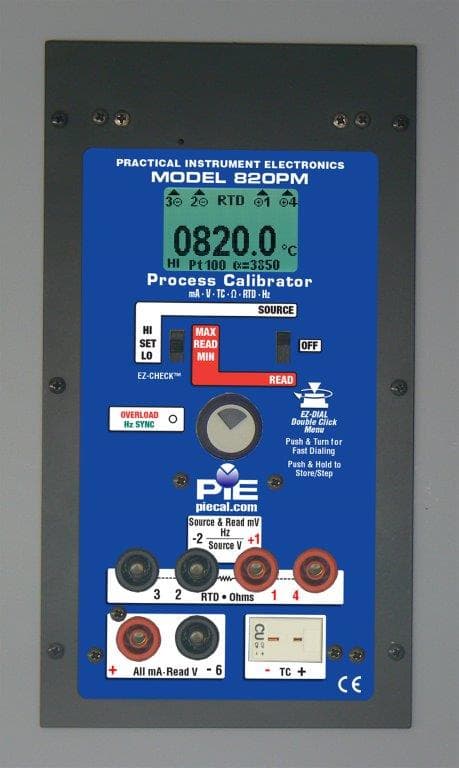

The PIE 820PM is the panel-mount version of the PIE 820 multifunction process calibrator. Per PIE, it shares the same specifications, EZ-DIAL / EZ-CHECK interface, and connections as the portable 820, with a larger display for bench reading. Use it in a calibration bench, as a manual loading station in a control panel, or as a built-in process simulator; the unit may be removed for annual calibration.
Functions include source/read milliamp and voltage, thermocouple and RTD temperature, resistance, and frequency, plus 2-wire transmitter simulation, built-in 24 V loop power, and a 250 Ω HART resistor. Automatic stepping and ramping with selectable dwell time and HI/LO recall in read mode are included.
Each unit ships with a rugged 8¾" × 4¾" painted aluminum mounting plate and screws, 110/120 V AC adapter (220 V available), and a NIST calibration certificate. Three-year standard warranty per PIE.
Features (PIE)
PIE designed the 820PM for use on instrumentation panels, with the same menus as its handheld models.
- Milliamps and volts: source and read milliamps, DC volts (read to 60 V) and millivolts. Simulate 2-wire transmitters, power loops from the built-in 24 V supply, and use the built-in 250 Ω resistor for HART hookups.
- Temperature: thermocouple types J, K, T, E, R, S, B, N, G, C, D, L (J DIN), U (T DIN) and P (Platinel II); RTD types Pt 100 Ω (3850, 3902, 3916, 3926) and Pt 1000 Ω (3850), Cu 10 and 50 Ω, Ni 110 and 120 Ω.
- Frequency: source and read to 2000 CPM, 999.99 Hz, 9999.9 Hz and 20.000 kHz, for flow and vibration systems.
- Resistance: up to 4010 Ω.
- Stepping and ramping: store three outputs on the EZ-CHECK switch; step in 2, 3, 5 or 11 steps (100%, 50%, 25% or 10% of span) or ramp between zero and span.
- Stored values: the EZ-CHECK switch recalls the HI and LO values stored automatically in READ mode.
Documentation (PIE)
PIE publishes a datasheet, operating instructions and field calibration procedures for the 820PM.
The handheld version is the PIE 820. Browse all process calibrators.
Specifications
| Functions | |
| Channels | mA / V / T/C / RTD / Ohms / Frequency (6-in-1) |
| Ranges | |
| mA | Source/read 0.00 to 24.00 mA; 2-wire TX simulate; 24 V loop power; 250 Ω HART resistor |
| Voltage | Source 0.00 to 10.25 VDC and 0.00 to 80.00 mV; read to 10.25 VDC, 60.0 VDC, 80.00 mV |
| Thermocouple | Types J, K, T, E, R, S, B, N, G, C, D, L (J DIN), U (T DIN), P (Platinel II) |
| RTD / ohms | Pt 100 (3850, 3902, 3916, 3926) & Pt 1000 (3850); Cu 10 & 50; Ni 110 & 120; resistance to 4010 Ω |
| Frequency | Source & read to 2000 CPM, 999.99 Hz, 9999.9 Hz, 20.000 kHz |
| Accuracy | |
| Example points (820/820PM) | 4 mA ±0.01 mA; 5 V ±0.003 V; 10 kHz ±0.006 kHz; Type T 400 °C ±0.4 °C; Pt 100 0 °C ±0.5 °C |
| Features | |
| Operation | EZ-DIAL double-click menu; EZ-CHECK HI/LO; auto step (2/3/5/11) & ramp; continuity tester |
| Mechanical | |
| Mounting plate | 8¾" × 4¾" (8.75 × 4.75 in) painted aluminum with mounting screws |
| General | |
| Included | Aluminum mounting plate & screws; 110/120 V AC adapter; NIST calibration certificate |
| Warranty | 3 year standard warranty |
