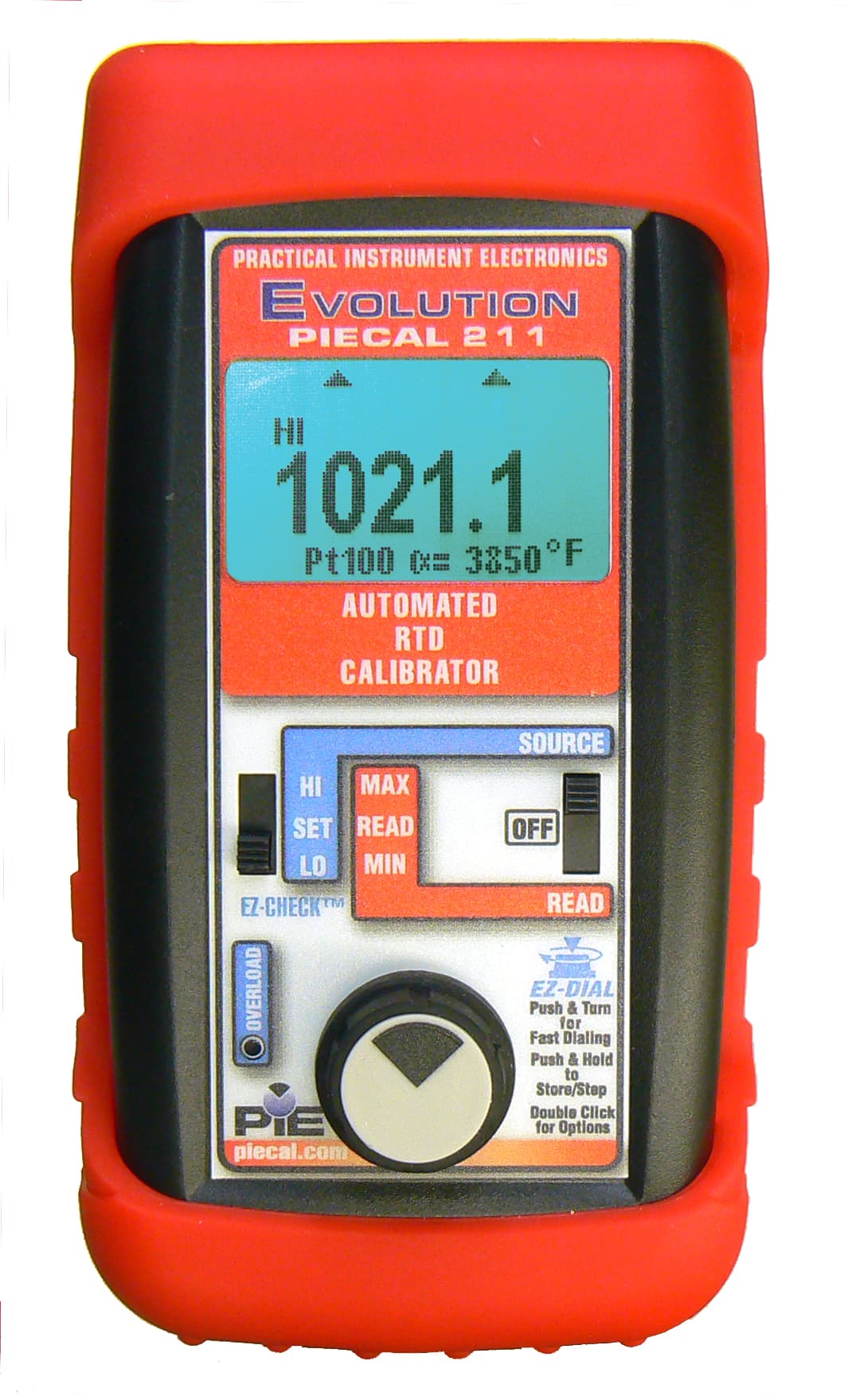

PIE 211 Automated RTD Calibrator
Automated RTD calibrator that sources and measures Pt, Cu, and Ni RTDs with ±(0.025% of reading + 0.05 Ω) accuracy, EZ-CHECK recall, and automatic output stepping.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The PIECAL 211 checks and calibrates RTD instruments and measures RTD sensors directly in °C or °F—no decade box or resistance tables required. It works with Platinum 100 (α = 3850, 3902, 3926) and 1000 (α = 3850, 3750) Ω, Copper 10 & 50 Ω, and Nickel 120 Ω, and can also function as a decade box from 0.00 to 401.00 Ω and 0.0 to 2001.0 Ω.
Set any temperature to within 0.1° with the digital potentiometer dial, store three values for instant EZ-CHECK™ recall, and auto-step the output in 2, 3, 5, 11, or 21 steps (100% down to 5% of span) with selectable step times. Connect directly to RTD inputs on smart transmitters, PLCs, DCS, and multichannel recorders—including instruments with pulsed excitation currents.
Patented connection detection helps troubleshoot 2-, 3-, and 4-wire RTD sensors and find broken wires. The handheld unit includes a rubber boot, tilt stand, and backlit display. Made in the USA with a NIST-traceable Certificate of Calibration.
Features (PIE)
- Accuracy: ±(0.025% of reading + 0.05 Ω), with resolution to 0.1 °F and °C.
- RTD curves (source and read): Pt 100 Ω (1.3850, 1.3902, 1.3916, 1.3926), Pt 1000 Ω (1.3850, 1.3750; Pt 1000 limited to 266.0 °C / 511.0 °F), Cu 10 and 50 Ω, Ni 120 Ω, plus 0.00 to 2001.0 Ω. PIE offers custom ranges on request.
- Wire detection: patented automatic detection of 2-, 3- and 4-wire connections finds broken wires; all connections are shown on the display.
- Compatibility: PIE states it works with smart transmitters (including Rosemount and Honeywell), PLCs, DCSs, multichannel recorders and other pulsed-excitation devices.
- Speed: three EZ-CHECK outputs, a two-speed EZ-DIAL knob and automatic stepping for finding trip points.
- Display and power: backlit display; four AA batteries, changed without tools.
Included (PIE)
Rubber boot, deluxe hands-free carrying case and RTD test leads (020-0208).
PIE publishes a comparison of the PIE 211 with the Altek 211. Replacement leads and cases are on our PIE calibrator accessories page.
Documentation (PIE)
PIE publishes a datasheet, operating instructions and field calibration procedures for the 211.
Browse all process calibrators.
Specifications
| Accuracy | |
| General (resistance) | ±(0.025% of Reading + 0.05 Ohms) |
| 3 & 4 wire source (1–10.2 mA excitation) | ±(0.025% of Reading + 0.05 Ohms) |
| 2 wire source | Add 0.1 Ohms to 3/4 wire accuracy |
| Pt 100 Ω (α=3850), −200 to 160 °C | ±0.2 °C |
| Ranges | |
| Resistance source/read | 0.00 to 401.00 Ω; 0.0 to 2010.0 Ω |
| Supported RTD types | Pt 100 (3850/3902/3916/3926), Pt 1000 (3850/3750), Cu 10/50, Ni 120 |
| Pt 100 Ω (α=3850) span | −200.0 to 850.0 °C (−328.0 to 1562.0 °F) |
| Source/Read | |
| Functions | Source & measure RTD/Ω; auto connection detect for 2/3/4 wire |
| Auto stepping | 2, 3, 5, 11, 21 steps; 5–60 s step times |
| Allowable excitation (400 Ω range) | 10.2 mA max, steady or pulsed |
| Power | |
| Batteries / life | Four AA alkaline; 50 hours |
| Environmental | |
| Operating temperature | −25 to 60 °C (−10 to 140 °F) |
| General | |
| Size / weight | 5.63 × 3.00 × 1.60 in; 12.1 oz with boot & batteries |
| Included | Red rubber boot, four AA batteries, Certificate of Calibration |
| Origin / cal | Made in USA; NIST-traceable Certificate of Calibration |
Documents
Build your part number
Configure your PIE-211
Pick your options and we'll build the exact part number with a list-price estimate.
Select a package to build your part number.
Choose Standard or Basic Package.
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| PIE-211-BP | $1,555.00 |
