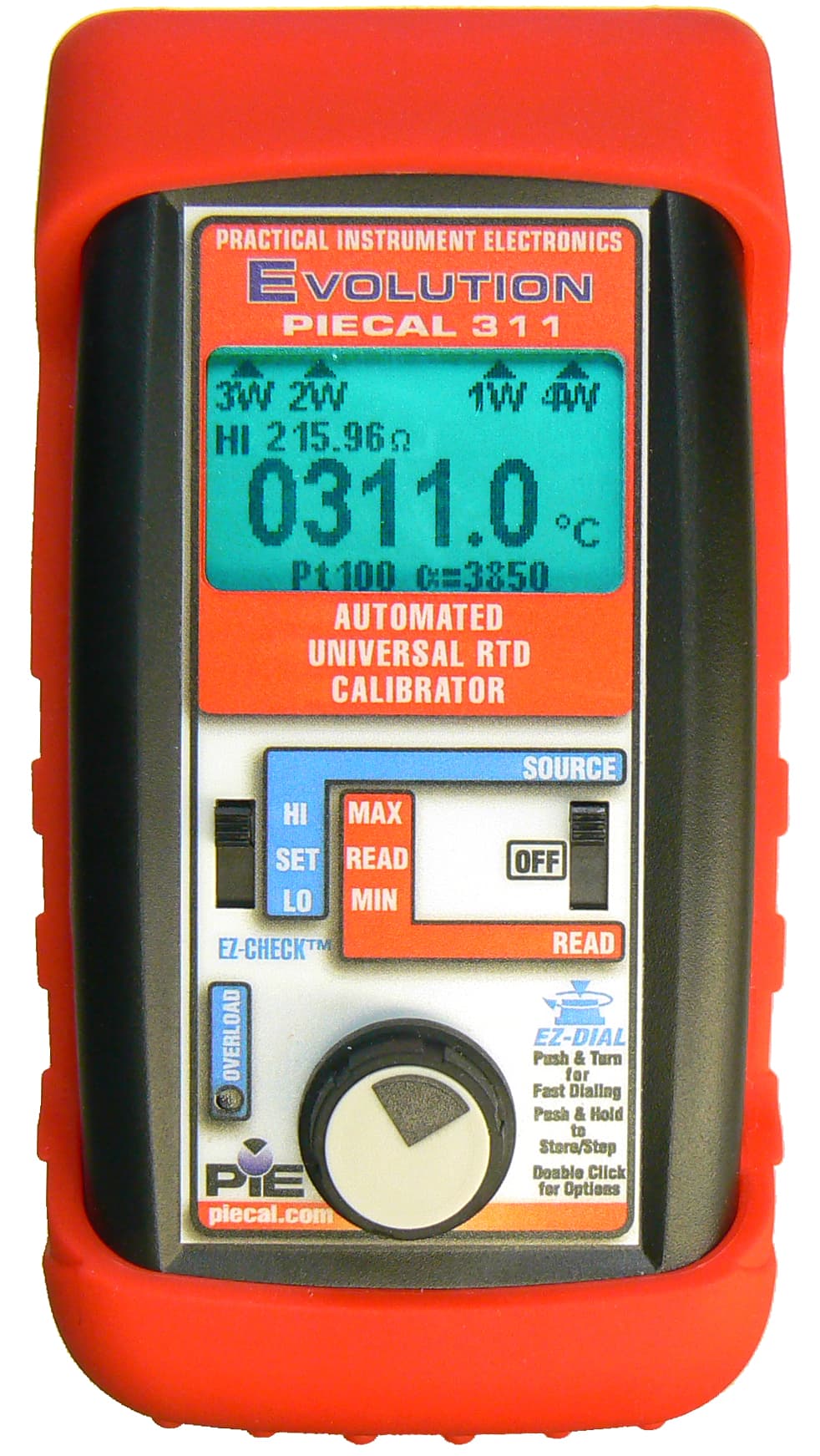

PIE 311 Automated Universal RTD Calibrator
Automated universal RTD calibrator with ±(0.015% of reading + 0.05 Ω) accuracy, decade-box resistance to 4010 Ω, and automatic output stepping for plant and field work.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The PIECAL 311 sources and measures RTD sensors and calibrates RTD instruments directly in °C or °F. It supports Platinum 100 (α = 3850, 3902, 3926) and 1000 (α = 3850, 3750) Ω, Copper 10 & 50 Ω, and Nickel 120 Ω, and works like a decade box from 0.00 to 401.00 Ω and 0.0 to 4010.0 Ω.
Use the digital dial to set values within 0.1°, store three temperatures for EZ-CHECK™ recall, and auto-step outputs across 2–21 steps with selectable timing. The secondary display shows the resistance corresponding to the RTD temperature. Compatible with smart transmitters, PLCs, DCS, and multichannel recorders with fixed or pulsed excitation.
Patented technology automatically detects 2-, 3-, and 4-wire connections to help find broken wires. Field-ready with rubber boot, tilt stand, and backlit display. Made in the USA with a NIST-traceable Certificate of Calibration.
Features (PIE)
- Accuracy: ±(0.015% of reading + 0.05 Ω), with resolution to 0.1 °F and °C.
- RTD curves (source and read): Pt 100 Ω (1.3850, 1.3902, 1.3916, 1.3926), Pt 1000 Ω (1.3850, 1.3750), Cu 10 and 50 Ω and Ni 120 Ω, plus ohms. PIE offers custom ranges on request.
- Wire detection: patented automatic detection of 2-, 3- and 4-wire connections finds broken wires; all connections are shown on the display.
- Verify output: a secondary display shows ohms alongside temperature.
- Compatibility: PIE states it works with smart transmitters (including Rosemount and Honeywell), PLCs, DCSs, multichannel recorders and other pulsed-excitation devices.
- Speed: three EZ-CHECK outputs, a two-speed EZ-DIAL knob and automatic stepping.
- Display and power: backlit display; four AA batteries, changed without tools.
Included (PIE)
Rubber boot, deluxe hands-free carrying case and RTD test leads (020-0208).
PIE publishes a comparison of the PIE 311 with the Altek 311 and 311A. Replacement leads and cases are on our PIE calibrator accessories page.
Documentation (PIE)
PIE publishes a datasheet, operating instructions and field calibration procedures for the 311.
Browse all process calibrators.
Specifications
| Accuracy | |
| General (resistance) | ±(0.015% of Reading + 0.05 Ohms) |
| 3 & 4 wire source (1–10.2 mA excitation) | ±(0.015% of Reading + 0.05 Ohms) |
| 2 wire source | Add 0.1 Ohms to 3/4 wire accuracy |
| Pt 100 Ω (α=3850), −150 to 360 °C | ±0.2 °C |
| Ranges | |
| Resistance source/read | 0.00 to 401.00 Ω; 0.0 to 4010.0 Ω |
| Supported RTD types | Pt 100 (3850/3902/3916/3926), Pt 1000 (3850/3750), Cu 10/50, Ni 120 |
| Pt 100 Ω (α=3850) span | −200.0 to 850.0 °C (−328.0 to 1562.0 °F) |
| Source/Read | |
| Functions | Source & measure RTD/Ω; secondary Ω display; auto wire detect |
| Auto stepping | 2, 3, 5, 11, 21 steps; 5–60 s step times |
| Power | |
| Batteries / life | Four AA alkaline; 50 hours |
| Environmental | |
| Operating temperature | −25 to 60 °C (−10 to 140 °F) |
| General | |
| Size / weight | 5.63 × 3.00 × 1.60 in; 12.1 oz with boot & batteries |
| Included | Red rubber boot, four AA batteries, Certificate of Calibration |
| Origin / cal | Made in USA; NIST-traceable Certificate of Calibration |
Documents
Build your part number
Configure your PIE-311
Pick your options and we'll build the exact part number with a list-price estimate.
Select a package to build your part number.
Choose Standard or Basic Package.
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| PIE-311-BP | $1,865.00 |
