PIE 511B RTD Simulator

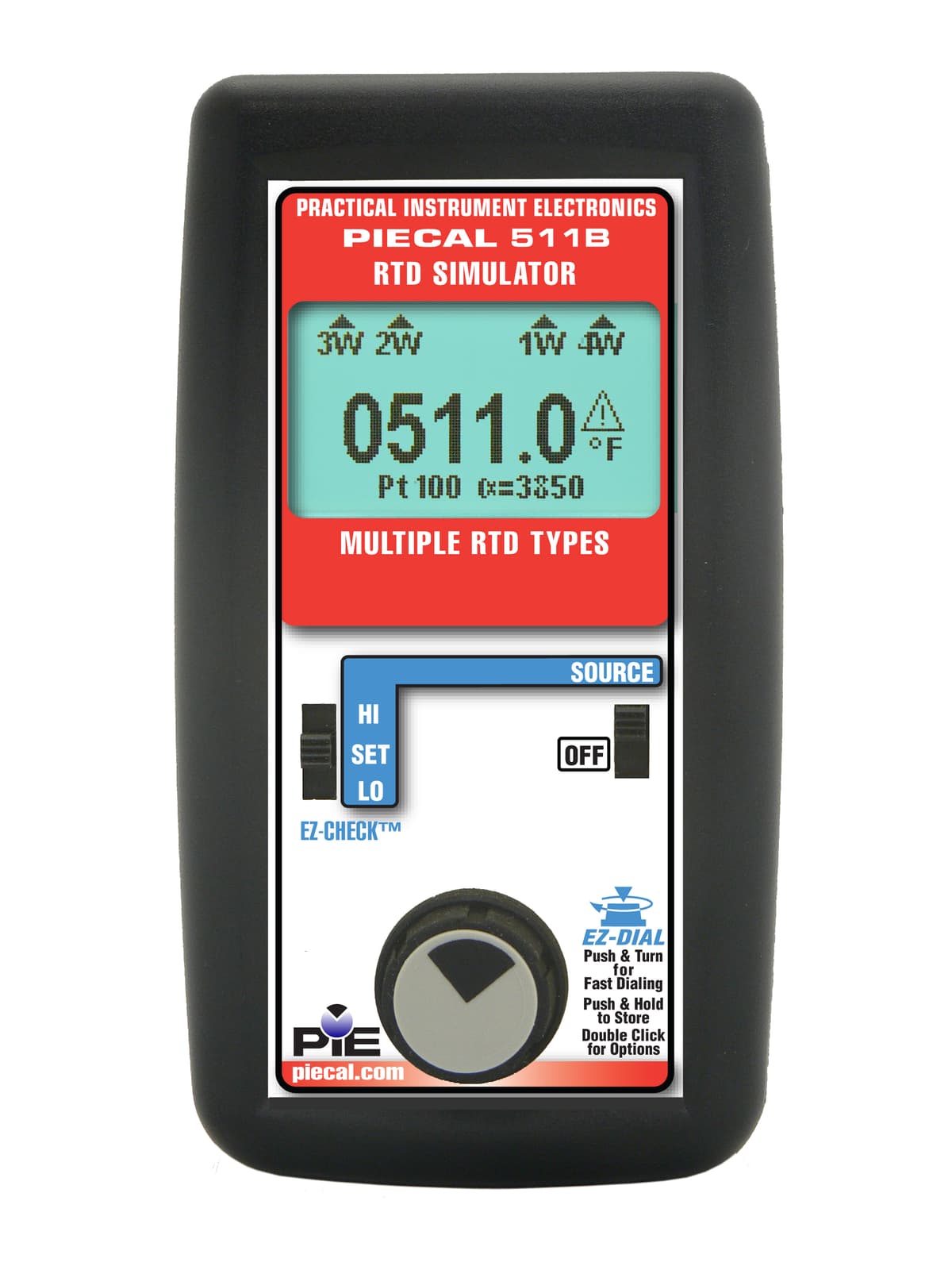

PIE 511B ten-type RTD simulator for RTD calibration and simulation
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The PIE 511B includes all ten RTD types listed for the 510B family—Platinum 100 (α = 3850, 3902, 3916, 3926) and 1000 (α = 3850, 3750) Ω, Copper 10 & 50 Ω, and Nickel 110 & 120 Ω—so one handheld covers mixed RTD fleets. Simulate directly in °C or °F, or use decade-box resistance from 0.00 to 410.00 Ω and 410.1 to 4001.0 Ω.
Accuracy is ±(0.015% of setting + 0.05 Ω) for 3- and 4-wire connections at 1–10.2 mA excitation. EZ-CHECK stores three temperatures; the digital dial sets values within 0.1°. Works with older fixed-excitation and newer pulsed-excitation multichannel instruments.
Includes four leads with retractable-shield banana plugs and spade lugs. Optional rubber boot with tilt stand. Made in the USA with NIST-traceable Certificate of Calibration.
Features (PIE)
PIE describes the 511B as a ten-type RTD plus ohms simulator that replaces a decade box: you dial directly in temperature instead of reading RTD tables. It simulates RTD resistance into transmitters, recorders, controllers, alarms and data acquisition systems.
- Accuracy: ±0.25 °C (±0.5 °F) for Pt 100 Ω RTDs, with 0.1° resolution.
- Ten RTD curves or ohms: Platinum 100 and 1000 Ω, Nickel 110 and 120 Ω, and Copper 10 and 50 Ω, with °C or °F selectable.
- Compatibility: PIE states it works with pulsed-excitation devices (PLCs, DCSs, multichannel recorders) and smart transmitters, including popular Rosemount and Honeywell models.
- Controls: two-speed EZ-Dial knob; EZ-Check switch stores 0% and 100% span settings.
- Power and build: AA alkaline batteries, typically 45 hours of continuous use; protected to 60 V.
- Certificate: NIST-traceable calibration certificate included. A rubber boot, carrying case and test data are optional.
PIE publishes a comparison of the PIE 511B with the Altek 11. Cases and boots are on our PIE calibrator accessories page.
Documentation (PIE)
PIE publishes a datasheet, operating instructions and field calibration procedures for the 511B.
For a single dedicated curve, see the PIE 510B. Browse all process calibrators.
Specifications
| Accuracy | |
| Simulate (1–10.2 mA excitation) | ±(0.015% of Setting + 0.05 Ohms) |
| 2 wire | Add 0.1 Ohms to 3/4 wire accuracy |
| Pt 100 Ω (α=3850), −200 to 200 °C | ±0.2 °C |
| Ranges | |
| Resistance | 0.00 to 410.00 Ω; 410.1 to 4001.0 Ω |
| RTD types included | All 10: Pt 100 (4 alphas), Pt 1000 (2), Cu 10/50, Ni 110/120 |
| Pt 100 Ω (α=3850) span | −200.0 to 850.0 °C (−328.0 to 1562.0 °F) |
| Source/Read | |
| Functions | RTD/Ω simulate only (source) |
| Power | |
| Batteries / life | Four AA alkaline; 50 hours |
| Environmental | |
| Operating temperature | −25 to 60 °C (−10 to 140 °F) |
| General | |
| Size / weight | 4.96 × 2.73 × 1.79 in; 8.4 oz (with batteries) |
| Included | Four AA batteries, Certificate of Calibration, Evolution RTD Wire Kit (020-0208) |
| Origin / cal | Made in USA; NIST-traceable Certificate of Calibration |
Documents
Build your part number
Configure your PIE-511B
Pick your options and we'll build the exact part number with a list-price estimate.
Select a package to build your part number.
Choose Standard or Basic Package.
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| PIE-511B-BP | $1,069.00 |
