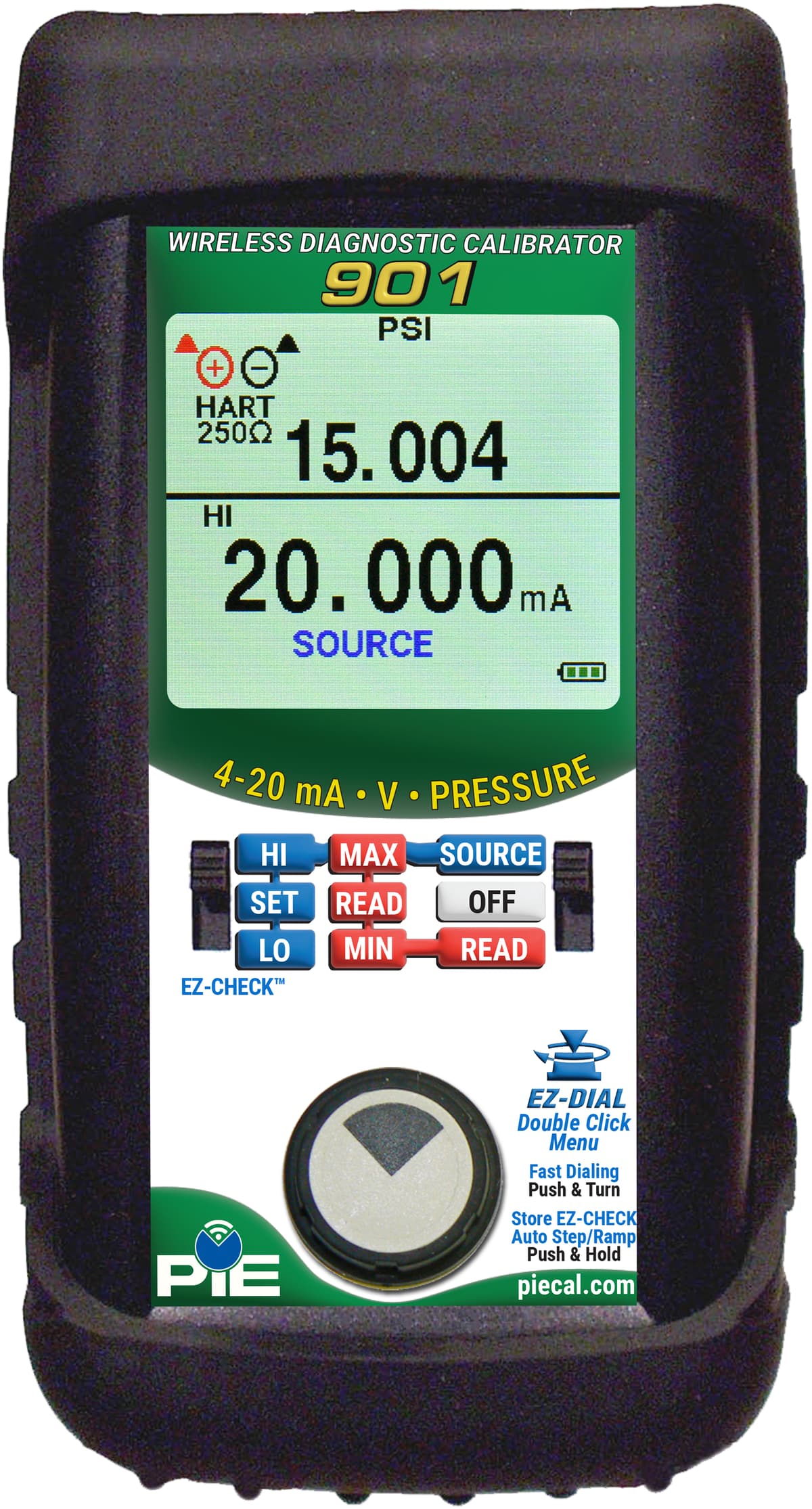

PIE 901 Wireless Diagnostic Calibrator
Wireless diagnostic calibrator for 4–20 mA, voltage, and pressure modules with ≤±(0.01% of reading + 0.002 mA) milliamp accuracy and ground-leak detection.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The PIE 901 is a diagnostic loop and pressure calibrator for 4–20 mA, voltage, and pressure (via cable-connected or future Bluetooth PIE pressure modules). Source and read to 24.000 mA, simulate two-wire transmitters, and power the loop with ≥24 V @ 20 mA while using Ground Leak Detection to find hidden faults.
Milliamp accuracy is ≤ ±(0.01% of reading + 0.002 mA)—tighter than many dedicated loop calibrators. DC voltage read covers −60.000 to 60.000 V at ≤ ±(0.02% of reading + 0.01% FS). Color graphic display with LED backlighting aids readability in the plant.
Isolation of 60 V rms between milliamp/voltage functions and pressure. Made in the USA; calibrated on NIST-traceable equipment.
Features (PIE)
- Milliamps: source and read 0.000 to 24.000 mA and −25.00 to 125.00% of 4–20 mA; simulate a 2-wire transmitter, or power and read it. Accuracy ±(0.01% of reading + 0.002 mA).
- Voltage: source 0.000 to 24.000 VDC; read −60.000 to 60.000 VDC. Accuracy ±(0.02% of reading + 0.01% of full scale).
- Pressure: with optional pressure modules, a dual display of milliamps and pressure for calibrating I/P and P/I transducers and pressure gauges. PIE offers pressure modules, hand pumps and tubing kits.
- Bluetooth: for use with PIE wireless pressure modules.
- Current leak detection: shows loop current and leakage current, to find ground leakage from faulty wiring, flooded conduit or corrosion bridges.
- Display and controls: large color display with color-coded menus; three-output EZ-CHECK switch, two-speed EZ-DIAL, stepping and ramping.
Included (PIE)
Rubber boot, deluxe hands-free carrying case, USB-C charger, 4 NiMH rechargeable batteries and test leads.
Optional accessories (PIE part numbers)
- Magnetic hanging strap (020-0236), on our PIE calibrator accessories page.
For wireless pressure, see the PIE PM-50 wireless pressure module; PIE pumps and fittings are on the PIE pressure pumps and fittings page.
Documentation (PIE)
PIE publishes a datasheet, operating instructions and field calibration procedures for the 901.
Browse all process calibrators.
Specifications
| Accuracy | |
| mA source / power & measure | ≤ ± (0.01% of Reading + 0.002 mA) |
| DC voltage read | ≤ ± (0.02% of Reading + 0.01% Full Scale) |
| Ranges | |
| mA | 0.000 to 24.000 mA (−25.00 to 125.00% of 4–20 mA) |
| DC voltage read | −60.000 to 60.000 V |
| Source/Read | |
| Loop compliance / drive | ≥ 24 DCV @ 20 mA; 1200 Ω at 20 mA (leak detect off) |
| Pressure | Compatible pressure modules (cable; wireless/Bluetooth per datasheet roadmap) |
| Diagnostics | Ground Leak Detection; color graphic display |
| Power | |
| Batteries / life | Four AA alkaline ≥ 7.5 h; NiMH ≥ 10 h nominal |
| Environmental | |
| Operating temperature | −20 to 60 °C (−5 to 140 °F) |
| General | |
| Isolation | 60 V rms between mA & voltage functions / pressure |
| Origin / cal | Made in USA; NIST-traceable calibration |
Documents
Build your part number
Configure your PIE-901
Pick your options and we'll build the exact part number with a list-price estimate.
Select a package to build your part number.
Choose Standard or Basic Package.
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| PIE-901-BP | Basic Package - Diagnostic 4-20mA loop, voltage and pressure calibrator | $1,809.00 |
