Overview

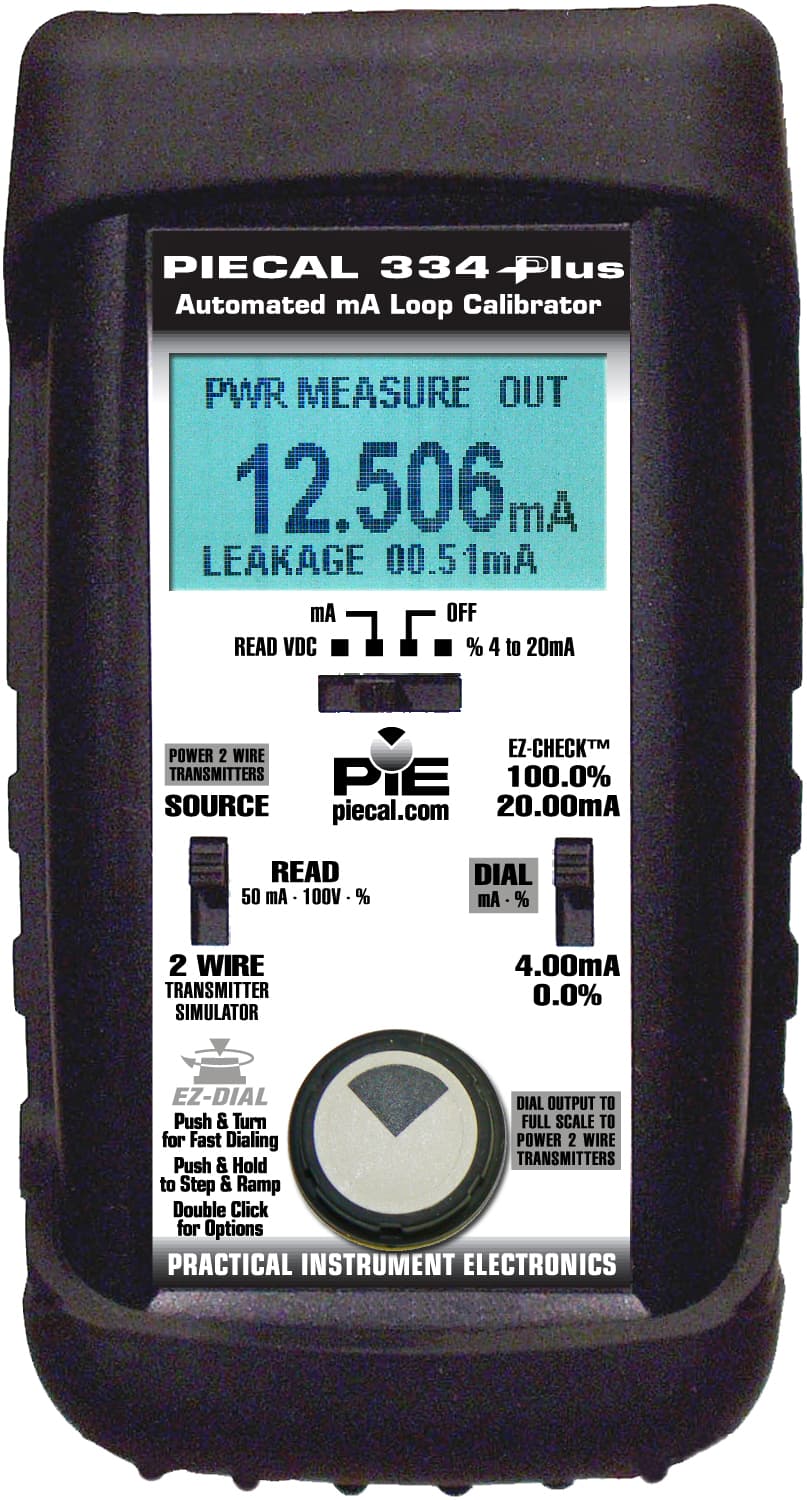

The PIECAL 334Plus adds diagnostics and finer resolution to everyday loop work. Source and read 0.000 to 24.000 mA (−25.00 to 125.00% of 4–20 mA), simulate two-wire transmitters, and power HART transmitters with the built-in 250 Ω resistor. Patented Ground Leak Detection helps find moisture and wiring faults that ordinary loop calibrators miss.
EZ-CHECK points at 4 and 20 mA are ≤ ±(0.025% of span) (±0.005 mA); full-range source accuracy is ≤ ±(0.05% of 24 mA span) (±0.012 mA). Loop drive is 1200 Ω at 20 mA with leak detection off (950 Ω with HART resistor). Automatic stepping and a backlit display speed plant rounds.
Includes batteries, Certificate of Calibration Card, rubber boot, deluxe carrying case, and test leads per the datasheet. Made in the USA with NIST-traceable calibration.
Features (PIE)
- Ranges: source to 24 mA; read to 52 mA and −99.99 to 99.99 V.
- Transmitters: simulate a 2-wire transmitter, or power and read it. A menu-selectable 250 Ω resistor gives HART compatibility.
- Accuracy: ±0.025% of span at the 4.00 and 20.00 mA EZ-CHECK outputs.
- Current leak detection (patented): shows loop current and leakage current, so you can see ground leakage from faulty wiring, flooded conduit or corrosion bridges. PIE notes leakage usually shows up as a zero shift, which helps you decide whether the transmitter or the wiring is the problem.
- Speed: three-output EZ-CHECK switch, two-speed EZ-DIAL, stepping and ramping; backlit display.
Included (PIE)
Rubber boot, test leads and deluxe hands-free carrying case (020-0211).
Optional accessories (PIE part numbers)
- AC adaptor: 120 V (020-0101) or 240 V (020-0100)
- NiMH batteries and charger (020-0103)
- Magnetic hanging strap (020-0236)
These are on our PIE calibrator accessories page. PIE publishes a comparison of the PIE 334Plus with the Altek 334 and 334A.
Documentation (PIE)
PIE publishes a datasheet, operating instructions and field calibration procedures for the 334Plus.
For a basic loop calibrator without leak detection, see the PIE 334. Browse all process calibrators.
Specifications
| Accuracy | |
| Source 0.000–24.000 mA | ≤ ± (0.05% of 24 mA Span) (±0.012 mA) |
| EZ-CHECK at 4 & 20 mA | ≤ ± (0.025% of Span) (±0.005 mA) |
| Read mA below 24.010 mA | ≤ ± (0.05% of 24.000 mA) (±0.012 mA) |
| Ranges | |
| mA | 0.000 to 24.000 mA (−25.00 to 125.00% of 4–20 mA) |
| Source/Read | |
| HART / diagnostics | Built-in 250 Ω; patented Ground Leak Detection; auto stepping |
| Loop drive (leak detect off) | 1200 Ω at 20 mA; 950 Ω with HART resistor |
| Power | |
| Batteries / life | Four AA alkaline; ≥ 30 hrs at 12 mA nominal |
| Environmental | |
| Operating temperature | −20 to 60 °C (−5 to 140 °F) |
| General | |
| Included | AA batteries, Certificate of Calibration Card, rubber boot, carrying case, mA/V leads |
| Origin / cal | Made in USA; NIST-traceable Certificate of Calibration |
