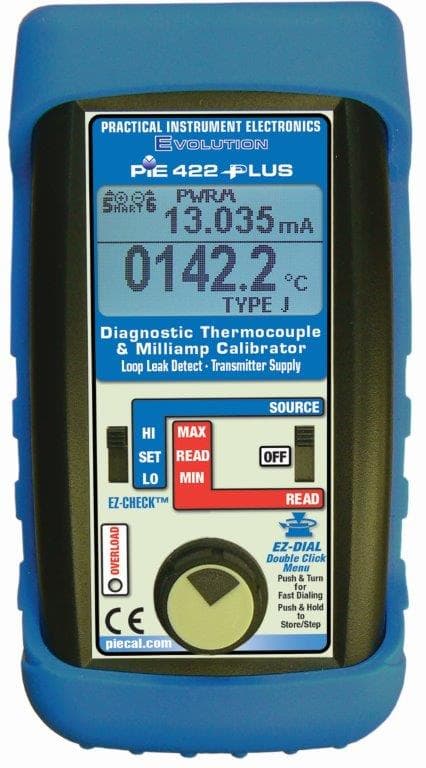

PIE 422Plus Diagnostic TC and mA Calibrator
PIE 422Plus diagnostic thermocouple and milliamp calibrator
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The PIE 422Plus is a 2-in-1 diagnostic milliamp and laboratory thermocouple calibrator. The milliamp side sources and reads 0.000 to 24.000 mA, simulates two-wire transmitters, powers and measures with an internal 24 V supply, includes a 250 Ω HART resistor, and offers patented Ground Leak Detection.
Thermocouple accuracy is ±(0.008% of reading + 0.006 mV) with ±0.05 °C cold-junction compensation. Source and read types J, K, T, E, R, S, B, N, G, C, D, L (J-DIN), U (T-DIN), P (Platinel II), and −13.000 to 80.000 mV. When certified by an accredited laboratory, it is capable of meeting AMS 2750 Field Test Instrument requirements.
Palm-sized with rubber boot and backlit display; automatic stepping from 2 to 21 steps. Made in the USA with NIST-traceable calibration.
Features (PIE)
- Two calibrators in one: all the functions of a 14-type thermocouple calibrator plus a milliamp calibrator. Source and read 0.000 to 24.000 mA, or simulate a 2-wire transmitter.
- Stand-alone transmitter calibration: supply the thermocouple input, power the transmitter with 24 V and read its mA output at the same time. A built-in 250 Ω resistor simplifies HART communicator hookups.
- Loop diagnostics: patented ground-fault and current-leak detection (US Patent 7,248,058).
- Thermocouple types: J, K, T, E, R, S, B, N, G, C, D, L (J-DIN), U (T-DIN) and P (Platinel II), plus −13.000 to +80.000 mV. A secondary display shows the millivolt value for the reading.
- Cold junction: internal thermistor accurate to ±0.05 °C, traceable to NIST, bonded to an isothermal mass with brass screw terminals and a miniature T/C connector.
- Heat treating: PIE states the 422Plus can meet the requirements of an AMS 2750 field test instrument when certified by an accredited laboratory.
- Automatic stepping: 2, 3, 5, 11 or 21 steps (100% down to 5% of span), with step times from 5 to 60 seconds.
Optional accessories (PIE part numbers)
- Wire and mini T/C plug kits: J, T, E, K (020-0202); B, R/S, K (020-0203)
- Magnet hanging strap (020-0236)
These are on our PIE calibrator accessories page. PIE publishes a comparison of the PIE 422Plus with the Altek 422.
Documentation (PIE)
PIE publishes a datasheet, operating instructions and field calibration procedures for the 422Plus.
Browse all process calibrators.
Specifications
| Accuracy | |
| Thermocouple / mV | ±(0.008% of Reading + 0.006 mV) |
| Cold junction compensation | ±0.05 °C (±0.09 °F); NIST-traceable (11 years) |
| mA source/read | ≤ ± (0.02% of Reading + 0.003 mA) |
| Ranges | |
| Thermocouple types | J, K, T, E, R, S, B, N, G, C, D, L, U, P |
| Millivolt | −13.000 to 80.000 mV |
| Milliamp | 0.000 to 24.000 mA (−25.00 to 125.00% of 4–20 mA) |
| Source/Read | |
| mA extras | 2-wire TX simulate; ≥24 V @ 20 mA; 250 Ω HART; Ground Leak Detection |
| AMS 2750 | Capable as Field Test Instrument when certified by accredited lab |
| Power | |
| Batteries / life | Four AA alkaline; 25 h thermocouple, 8 h milliamp |
| Environmental | |
| Operating temperature | −25 to 60 °C (−10 to 140 °F) |
| General | |
| Isolation | 60 V rms between milliamp / read V DC and source V DC / thermocouple |
| Origin / cal | Made in USA; NIST-traceable Certificate of Calibration |
Documents
Build your part number
Configure your PIE-422PLUS
Pick your options and we'll build the exact part number with a list-price estimate.
Select a package to build your part number.
Choose Standard or Basic Package.
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| PIE-422PLUS-BP | $2,005.00 |
