PIE 422 Automated Thermocouple Calibrator

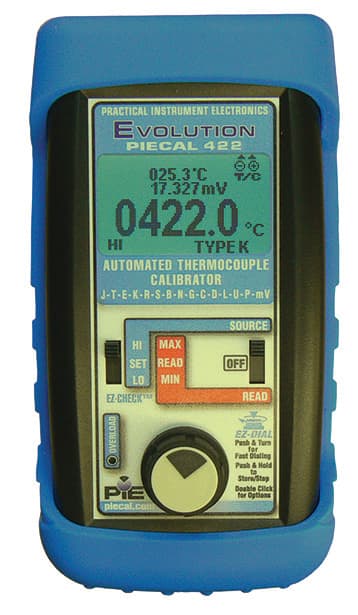

PIE 422 automated thermocouple calibrator for fourteen thermocouple types
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The PIE 422 sources and measures thermocouple types J, K, T, E, R, S, B, N, G, C, D, L (J-DIN), U (T-DIN), and P (Platinel II), plus −13.000 to +80.000 mV. Cold-junction compensation is ±0.05 °C with an 11-year NIST-traceable thermistor on an isothermal brass block—screw terminals for bare wire plus a miniature connector for fast hookups.
Secondary displays show millivolt value and measured cold-junction temperature. Automatic stepping and EZ-CHECK speed calibration of transmitters, PLCs, DCS, and recorders. When certified by an accredited lab, the 422 can meet AMS 2750 field test instrument requirements for heat-treating uniformity surveys and system accuracy tests.
Includes rubber boot, tilt stand, and backlit display. Made in the USA with NIST-traceable Certificate of Calibration.
Features (PIE)
- 14 thermocouple types plus mV: J, K, T, E, R, S, B, N, G, C, D, L (J DIN), U (T DIN) and P (Platinel), plus −13.000 to 80.000 mV.
- Accuracy: to 0.2°, with resolution to 0.1 °F and °C. The cold-junction sensor is accurate to 0.05 °C.
- Heat treating: PIE states the 422 can meet the requirements of an AMS 2750 field test instrument when certified by an accredited laboratory, for uniformity survey recorders and system accuracy tests.
- Secondary displays: compensated millivolt setting and cold-junction temperature.
- Speed: three EZ-CHECK outputs, two-speed EZ-DIAL knob and automatic stepping; double-click to change T/C type and °F/°C.
- Connections and power: brass screw terminals for bare T/C wire plus a mini T/C socket; backlit display; four AA batteries, changed without tools.
Included (PIE)
Rubber boot and mV test leads.
Optional accessories (PIE part numbers)
- Wire and mini T/C plug kits: J, T, E, K (020-0202); B, R/S, K (020-0203), on our PIE calibrator accessories page.
PIE publishes a comparison of the PIE 422 with the Altek 422.
Documentation (PIE)
PIE publishes a datasheet, operating instructions and field calibration procedures for the 422.
Browse all process calibrators.
Specifications
| Accuracy | |
| mV / T/C (excludes CJ) | ±(0.008% of Reading + 0.006 mV) |
| Cold junction compensation | ±0.05 °C (±0.09 °F); NIST-traceable thermistor (11 years) |
| Ranges | |
| Thermocouple types | J, K, T, E, R, S, B, N, G, C, D, L (J-DIN), U (T-DIN), P (Platinel II) |
| Millivolt | −13.000 to 80.000 mV |
| Source/Read | |
| Functions | Source & measure T/C and mV; secondary mV & CJ display |
| Auto stepping | 2, 3, 5, 11 steps and ramp; 5–60 s |
| AMS 2750 | Capable as Field Test Instrument when certified by accredited lab |
| Power | |
| Batteries / life | Four AA alkaline; 50 hours |
| Environmental | |
| Operating temperature | −25 to 60 °C (−10 to 140 °F) |
| General | |
| Included | Rubber boot, four AA batteries, Certificate of Calibration, standard test leads |
| Origin / cal | Made in USA; NIST-traceable Certificate of Calibration |
